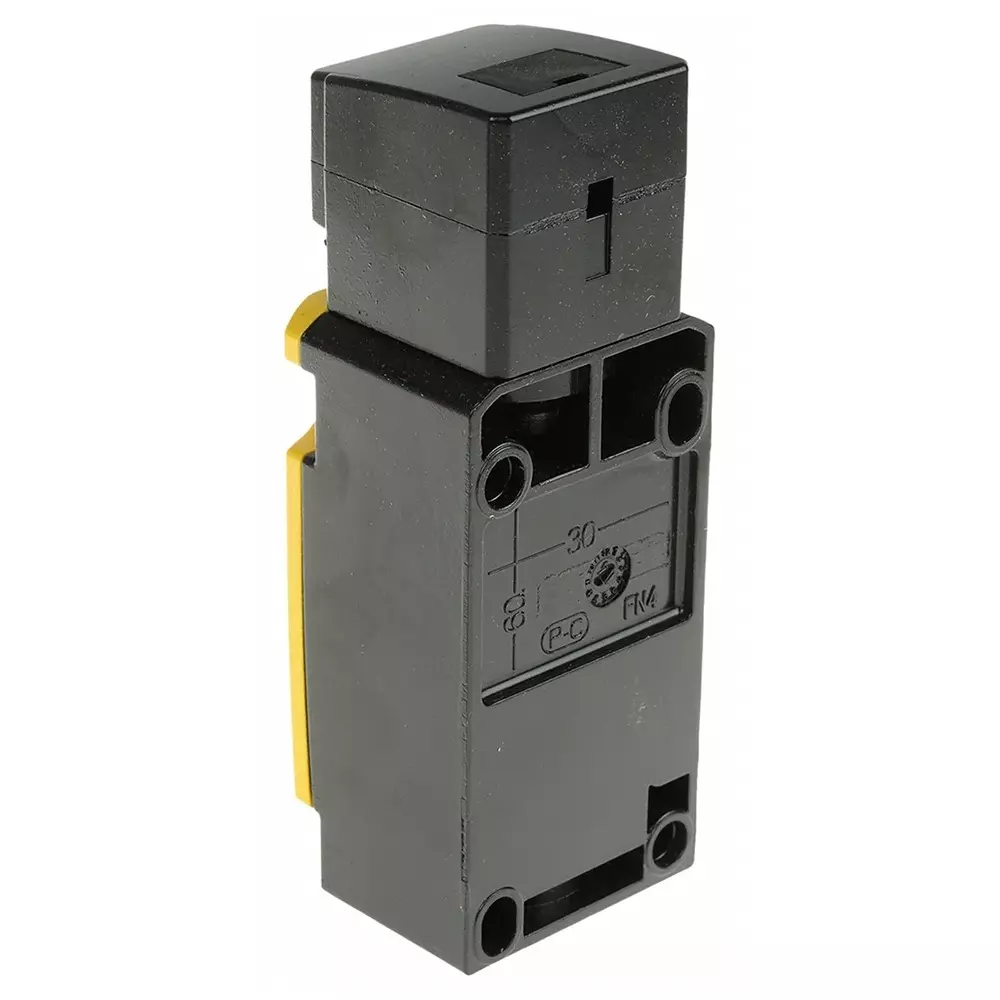

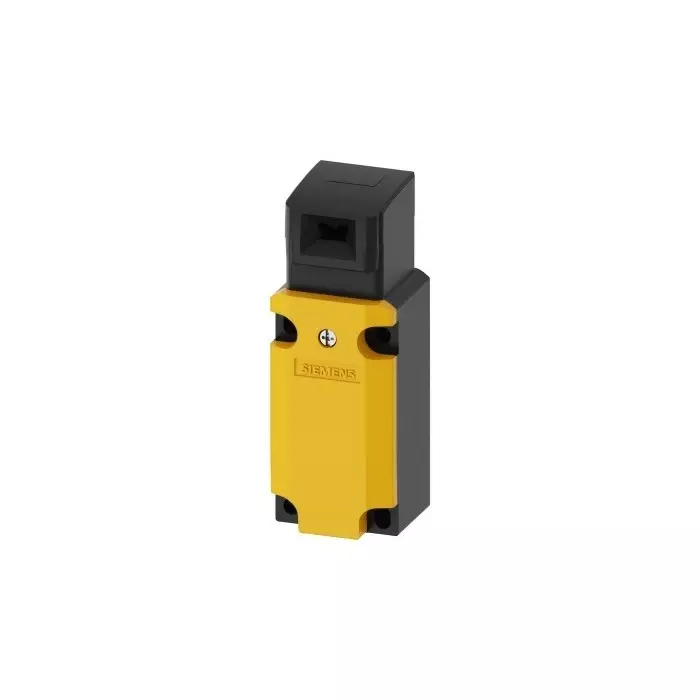

Type of Product | 3SE5 Safety Interlock Switch |
Width | 40mm |
Length | 110mm |
Range | SIRIUS |
Type of Product |
3SE5 Safety Interlock Switch |
Width |
40mm |
Length |
110mm |
Range |
SIRIUS |
Depth |
37.3mm |
Series |
3SE5 |
Country of Origin |
Germany |
Name of Manufacturer/Packer/Importer |
Siemens |
Dimension |
110 x 40mm |
Pack of |
Each of 1 Piece |
IP Rating |
IP66, IP67 |
Manufacturer Model Number |
3SE5112-0QV10 |
Auxiliary Contacts |
2NC/1NO |
Actuator Included |
No |
Normal State Configuration |
2NC/1NO |
Number of Head Directions |
5 |
Safety Contacts |
2 |
Connection Type |
M20 |
Maximum Current |
3 A, 6A |
Maximum DC Voltage |
230V |
Lock Style |
Keyed |
Maximum AC Voltage |
230V |
Housing Material |
Metal |
Maximum Operating Temperature |
+85°0C |
Standards Met |
CE |
Minimum Operating Temperature |
-25°0C |
