| Output Voltage (V) | Single Phase 100 |
| Country of Origin | Japan |
| Output Frequency (Hz) | 0.5 to 60 (starting frequency 0.5Hz), operating frequency is 15 to 60 (initial setting) |
| Storage Temperature | -20 To 65°C (Temperature That Can Be Applied For Short Periods Such As During Transportation) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Output Voltage (V) |
Single Phase 100 |
Country of Origin |
Japan |
Output Frequency (Hz) |
0.5 to 60 (starting frequency 0.5Hz), operating frequency is 15 to 60 (initial setting) |
Storage Temperature |
-20 To 65°C (Temperature That Can Be Applied For Short Periods Such As During Transportation) |
Type of Product |
Blower Inverter |
Features |
1) Various external controls In addition to operating/stopping from the outside, frequency can be changed using DC 0-5V, DC 0-10V, and DC 4-20mA.<br> 2) Low noise operation The high carrier frequency PWM control method enables operation at a low noise level comparable to that when powered by commercial power.<br> 3) Remote setting of operation mode The simple remote air volume adjustment switch (optional) allows you to start/stop and change the frequency remotely.<br> 4) Frequency jump setting of up to 3 points If resonance occurs at a specific frequency, you can set up to 3 points to avoid that frequency.<br> 5) Initial settings for parameters suitable for the blower. Parameters are initially set to be suitable for the blower, so no extra settings are required (some settings are required).<br> 6) Operating frequency is memorized. Even if the power is cut off, the frequency used last time will be memorized. |
Model No |

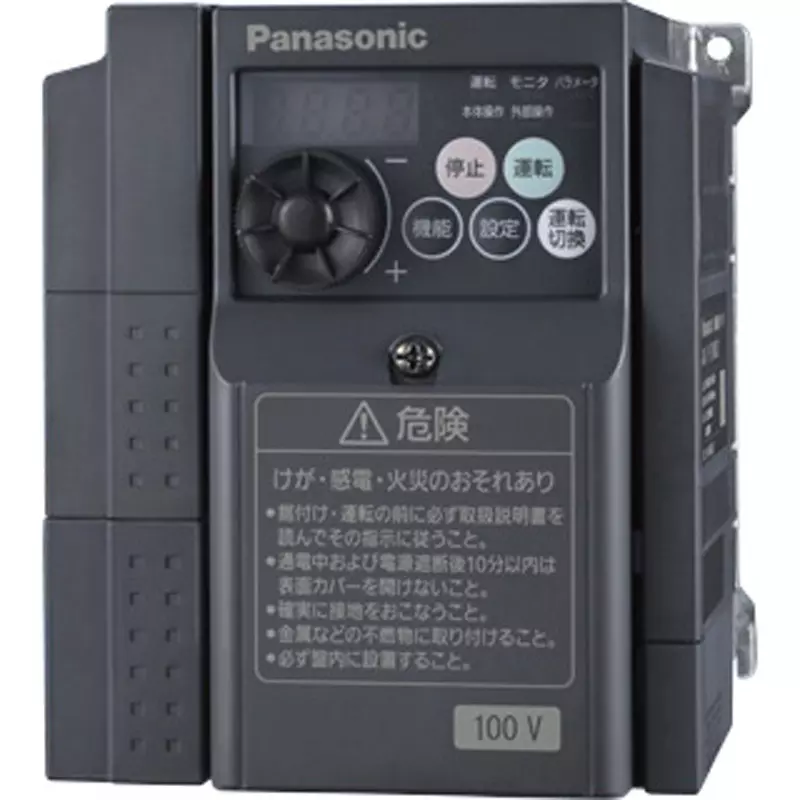

FY-S1N08S2 |
Rated Output Capacity (kVA) |
0.8 |
Monotaro ID |
48459305 |
Atmosphere |
Indoors (free from corrosive gases, flammable gases, oil mist, and dust) |
Import Country |
Direct Import from Japan |
Power Supply Voltage |
Single Phase Ac100V ± 10% |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Ambient Temperature (℃) |
-10 to 40 (no freezing) |
Input Voltage (V) |
Single Phase 100 |
Vibration |
5.9 (0.6G) or less, 10 to 55 Hz (X, Y, Z directions) m/s² |
Operation Mode |
Main unit operation, external operation (no-voltage signal) |
Specifications |
●V/F pattern: Initial setting: 1.5 power reduced torque load ●Frequency jump: 3 points ●Frequency command: Main unit operation dial, external signal (no-voltage signal, DC 0 to 5 V, DC 0 to 10 V, DC 4 to 20 mA) |
Mass (Kg) |
1.5 |
Power Frequency |
50/60±5% Hz |
Control |
High carrier frequency (0.7 to 14.5 kHz) PWM control (initial setting: 14.5 kHz) |
Overload Current Rating |
150% for 1 minute |
Protective Function |
Undervoltage (Single-Phase 100V Models Only), Overcurrent, Overvoltage, Overload Shutdown, Stall Prevention, Fin Overheating, Parameter Storage Element Error, Cpu Error, Analog Input Error, Internal Circuit Error |
Acceleration / Braking Time |
Initial Setting: 15 Seconds |
Rated Current (A) |
8 |
Installation Altitude (m) |
1000 or less |
