| Series | BP1 |
| Model No | BP101-6 |
| Material | PBT |

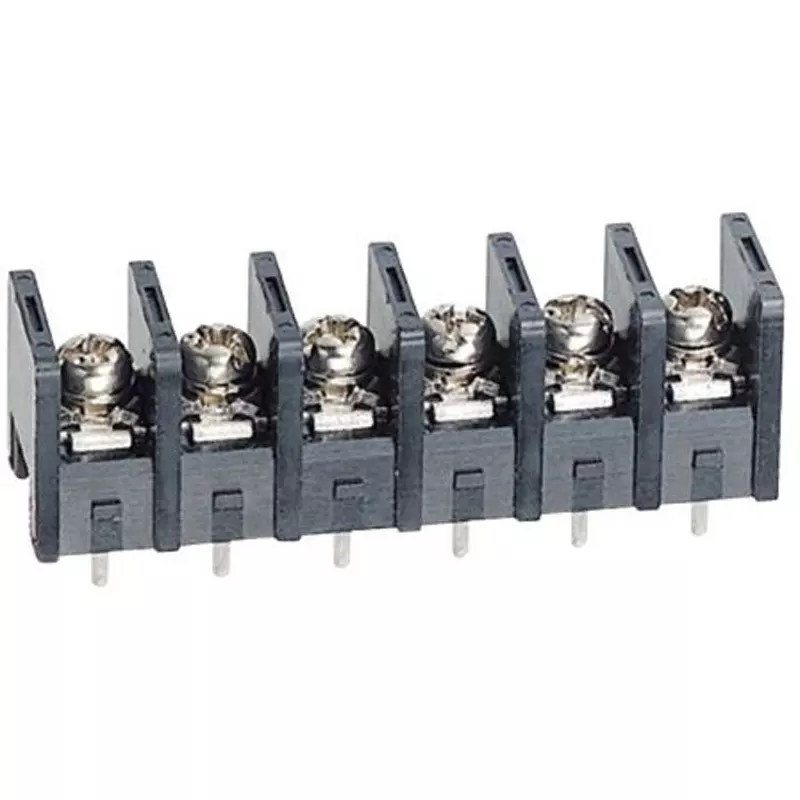

| Type of Product | Pcb Terminal Block Bp1 Series 10Mm Pitch 1 Row 6 Poles 1 Bag 10 Pieces |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
BP1 |
Model No |
BP101-6 |
Material |
PBT |
Type of Product |
Pcb Terminal Block Bp1 Series 10Mm Pitch 1 Row 6 Poles 1 Bag 10 Pieces |
Country of Origin |
Japan |
No. of Pole |
6 |
Rated Current (A) |
15 |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Pack of |
Pack of 10 Pcs |
Specifications |
Code number: 318-5306 |
Heat Resistance |
Soldering: 260°C, 5 seconds or less (flow soldering), 60W, 350°C, 5 seconds or less (hand soldering) |
Import Country |
Direct Import from Japan |
Monotaro ID |
63952755 |
Rated Voltage (V) |
250 |
Temperature Rise |
45 ° C or less |
Storage Temperature Range |
-40 to 80℃ (no icing) |
Insulation_Resistance (MΩ) |
Between live parts, between live parts and grounded metal parts: 100 or more |
Rated Impulse Withstand Voltage (kV) |
DC4 (standard waveform 1 x 40μs) |
Operation Ambient Temperature (°C) |
-10 to 55 (no icing) |
Shock Resistance (m/s²) |
1000 |
Terminal Spacing |
10 mm |
Rated Insulation Voltage (V) |
250 |
Number Of Lines |
1 |
Energizing Current (A) |
15 |
Connectable Wire (mm2) |
Screw terminal: 0.75 to 2 max. 2 pieces, Solder terminal: 2 max., Back tab terminal: 1.25 max. |
Terminal Screw |
M3.5 |
Vibration Resistance (m/s²) |
50 |
