| Model No | SM-11B |
| Material | Stainless Steel (SUS304) |

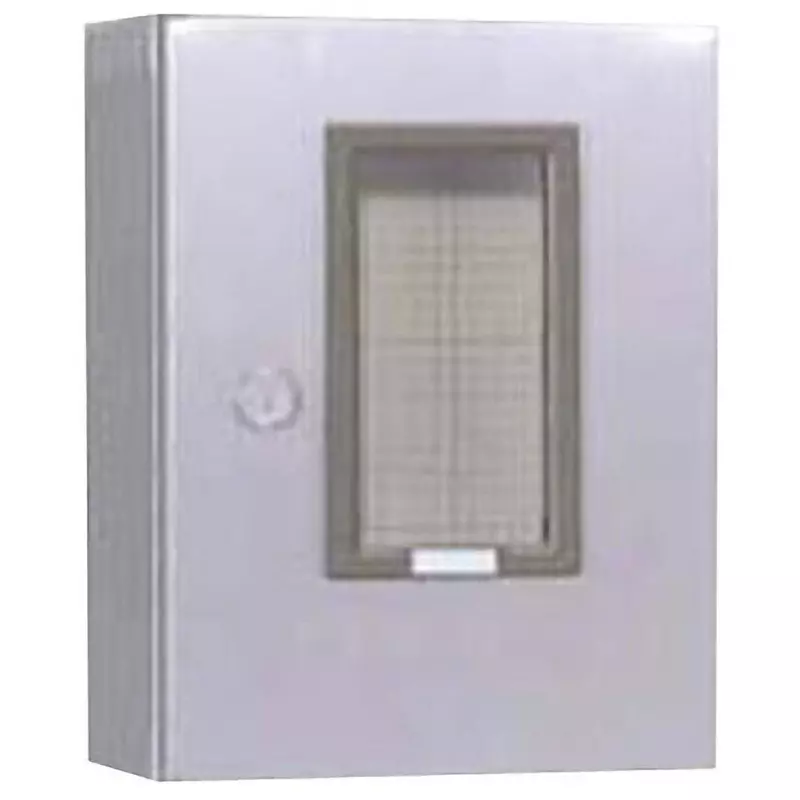

| Type of Product | SM-B Instrument Panel Cabinet |
| Country of Origin | Japan |
Model No |
SM-11B |
Material |
Stainless Steel (SUS304) |
Type of Product |
SM-B Instrument Panel Cabinet |
Country of Origin |
Japan |
Protection Class |
IP44 |
Door Type |
One door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Import Country |
Direct Import from Japan |
Monotaro ID |
44659036 |
RoHS Directive |
Correspondence |
Cabinet Thickness (mm) |
Door, body: 1.5 |
Mass (Kg) |
7.9 |
Mounting Board |
Wooden board 25mm |
External Dimensions (width x length x depth) (mm) |
300×400×200 |
Installation Location |
Indoor / outdoor use |
Paint Color |
Hairline finish / clear paint (no paint on the back) |
Handle |
Key handle with stainless steel seal Handle (H-28) |
Mounting Space |
For all electric power service areas (excluding Tokyo Electric Power Company, Chubu Electric Power Company, and other areas where reinforced weather-resistant power meters are used) [WHM single (3) phase, 3-wire system, 120A] x 1 For Tokyo Electric Power Company, Chubu Electric Power Company, etc. Reinforced weather-resistant power meter usage area [WHM single (3) phase 3-wire system 30A] x 1 |
