| Model No | SH-38BC |
| Material | Iron |

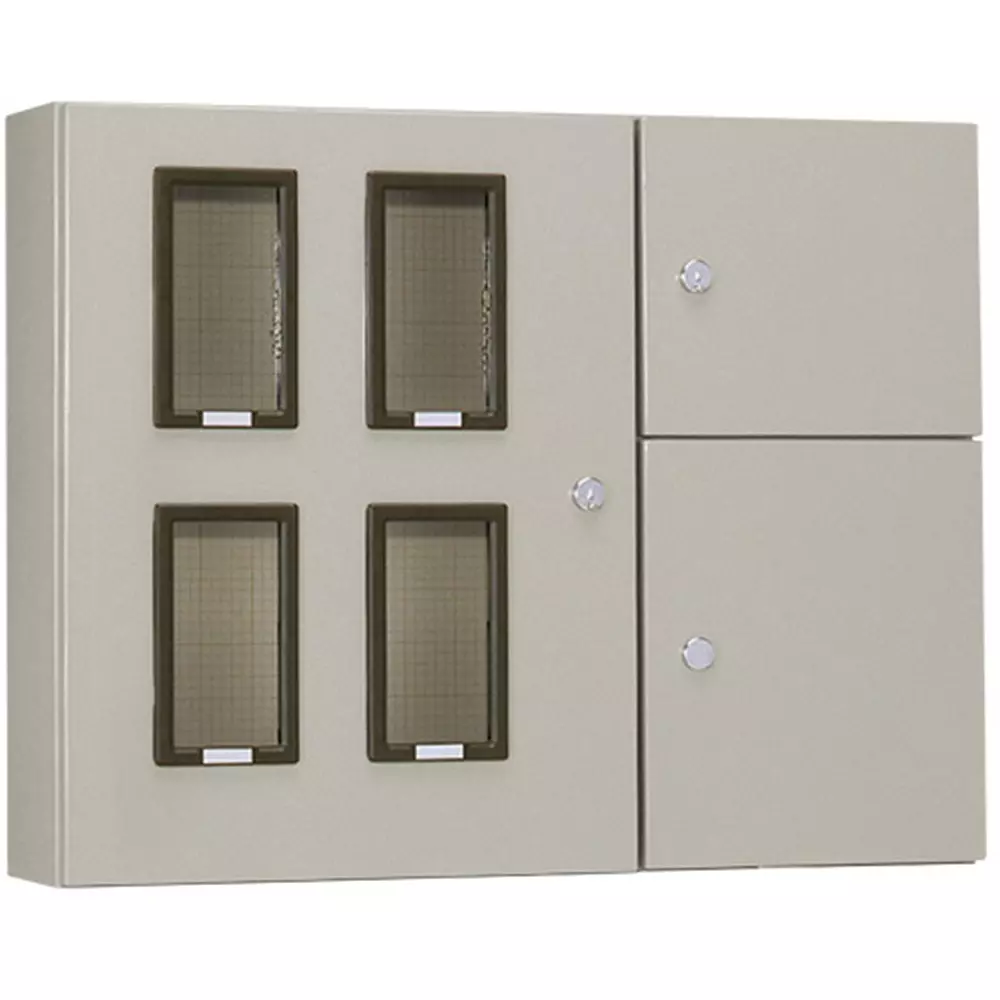

| Type of Product | SH-B Collector Panel Cabinet |
| Dimension | 1300×900×200 mm |
Model No |
SH-38BC |
Material |
Iron |
Type of Product |
SH-B Collector Panel Cabinet |
Dimension |
1300×900×200 mm |
Country of Origin |
Japan |
Protection Class |
IP44 |
Door Type |
3 doors |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Specifications |
For single (3) phase 3-wire 30A8 circuit |
Import Country |
Direct Import from Japan |
Monotaro ID |
44658162 |
RoHS Directive |
Correspondence |
Cabinet Thickness (mm) |
Door, body: 1.6 |
Mass (Kg) |
62.1 |
Mounting Board |
Wooden board (instrument part 25mm, switch part 15mm) |
Installation Location |
Indoor / outdoor use |
Paint Color |
Cream painting (2.5Y9 / 1) |
Handle |
Sealed key handle (H-26N) main switch, (H-27N) instrument key handle (H-24N) branch switch handle (H-28) |
Mounting Space |
[WHM single (3) phase 3-wire system 30A] x 8 [MCB 3P 200A] x 1 [ELB 3P 30A] x 8 |
