| Model No | SHO-126TB |
| Material | Iron |

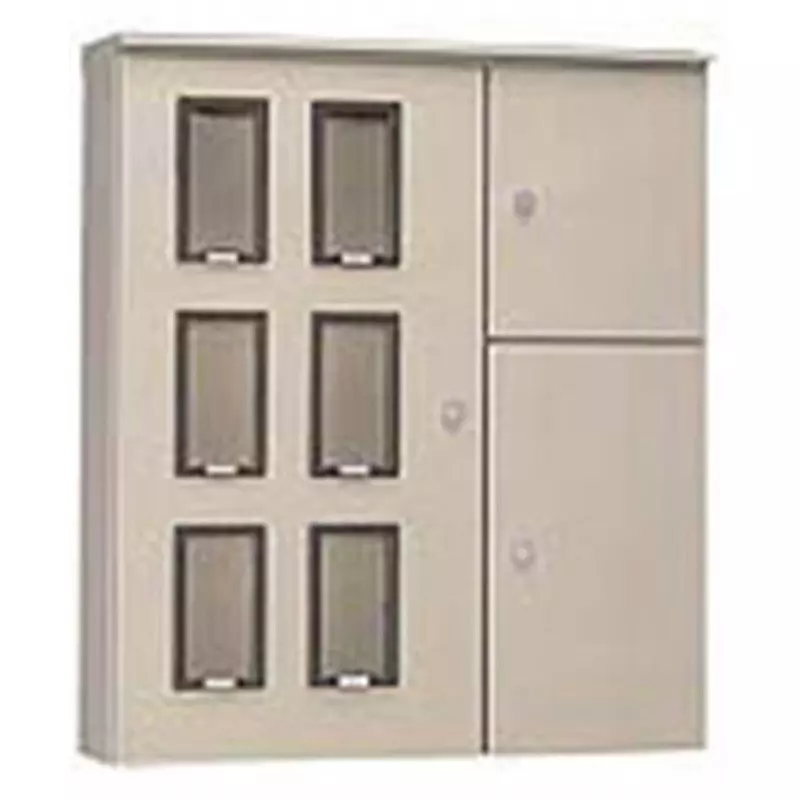

| Type of Product | SHO-TB Collector Panel Cabinet |
| Dimension | 1600×1200×200 mm |
Model No |
SHO-126TB |
Material |
Iron |
Type of Product |
SHO-TB Collector Panel Cabinet |
Dimension |
1600×1200×200 mm |
Country of Origin |
Japan |
Protection Class |
IP44 |
Door Type |
3 doors |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Specifications |
For single (3) phase 3-wire 120 (60) A6 circuit |
Import Country |
Direct Import from Japan |
Monotaro ID |
44658634 |
RoHS Directive |
Correspondence |
Cabinet Thickness (mm) |
Door, body: 1.6 |
Mass (Kg) |
96.5 |
Mounting Board |
Wooden board (instrument part 25mm, switch part 15mm) |
Installation Location |
For outdoor use |
Paint Color |
Light beige (5Y7 / 1) |
Handle |
Sealed key handle (H-26N) main switch, (H-27N) instrument key handle (H-24N) branch switch handle (H-28) |
Outer Dimensions (mm) |
Vertical: 1630 |
Mounting Space |
[WHM single (3) phase 3-wire system 120A] x 6 [MCB 3P 300A] x 1 [ELB 3P 60A] x 6 |
