Ships within 25 days
View
View
View
View
| Model No | MHA-18 |
| Material | Iron |

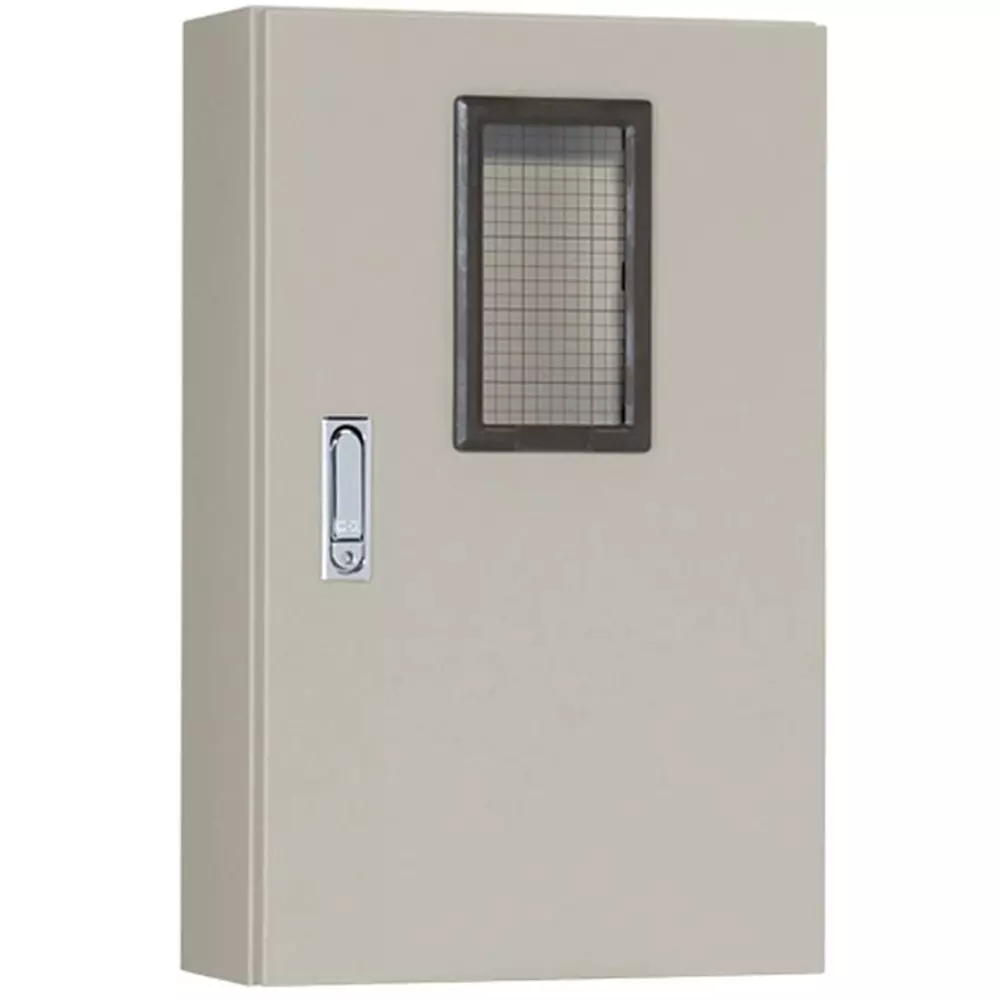

| Type of Product | MHA Intake Instrument Panel Cabinet |
| Dimension | 1200×400×200 mm |
Model No |
MHA-18 |
Material |
Iron |
Type of Product |
MHA Intake Instrument Panel Cabinet |
Dimension |
1200×400×200 mm |
Country of Origin |
Japan |
Protection Class |
IP44 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Import Country |
Direct Import from Japan |
Monotaro ID |
44656333 |
RoHS Directive |
Correspondence |
Cabinet Thickness (mm) |
Door, body: 1.6 |
Mass (Kg) |
27.3 |
Mounting Board |
Wooden board 25mm |
Installation Location |
Indoor and outdoor use |
Paint Color |
Light beige (5Y7 / 1) |
Handle |
Waterproof flat handle H-85 (Key No. N200) |
Dimensions, Width x Length (mm) |
(Wooden board) 320 × 1120 |
Mounting Space |
Chubu Electric Power, Kyushu Electric Power [WHM single (3) phase 3-wire system 200A] x 1 [ELB 3P 200A] x 1 Tohoku Electric Power, Hokkaido Electric Power [WHM single (3) phase 3-wire 250A] x 1 [ ELB 3P 250A] x 1 |
