| Series | AWP Series |
| Features | Waterproof and dustproof |
| Model No | AWP11-6-11BB |

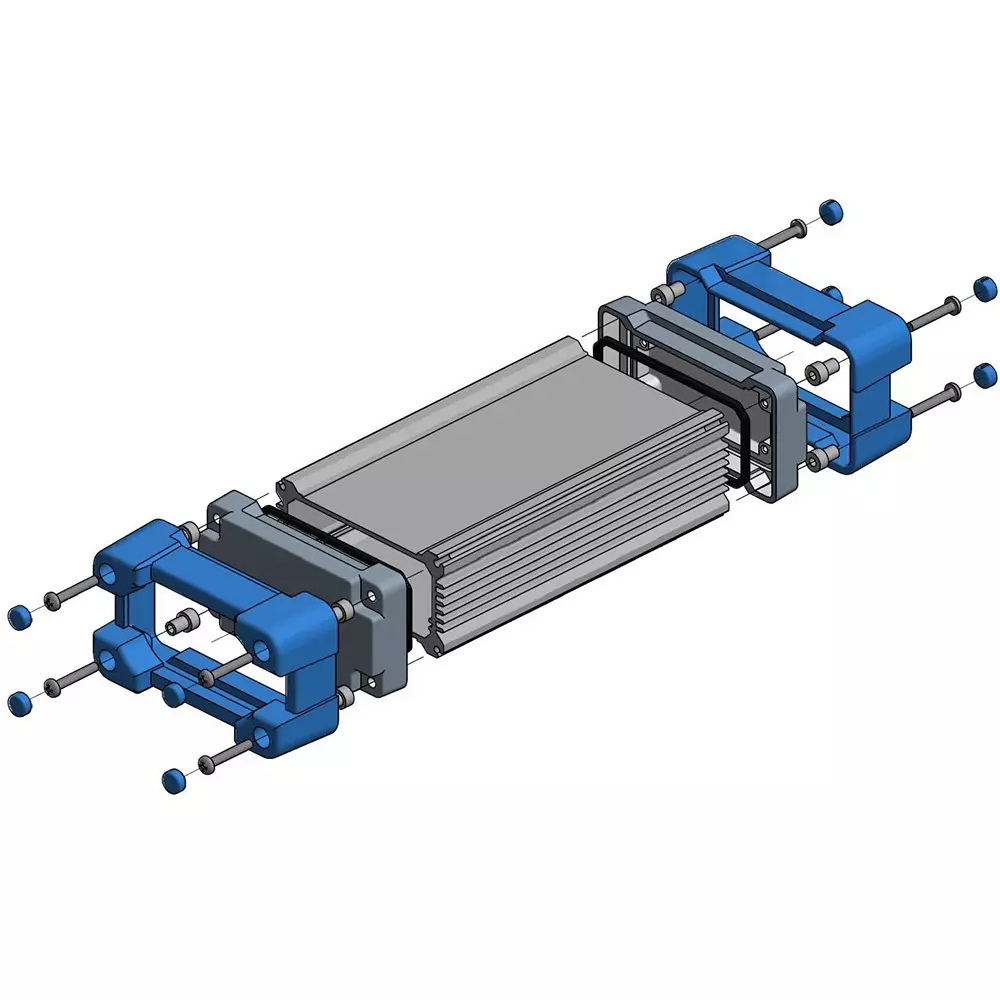

| Material | Spacer: Resin, Blind cap: Silicone rubber, Mounting Screws: Stainless steel, Body frame: Aluminum extrusion A6063S-T5 |
Series |
AWP Series |
Features |
Waterproof and dustproof |
Model No |
AWP11-6-11BB |
Material |
Spacer: Resin, Blind cap: Silicone rubber, Mounting Screws: Stainless steel, Body frame: Aluminum extrusion A6063S-T5 |
Type of Product |

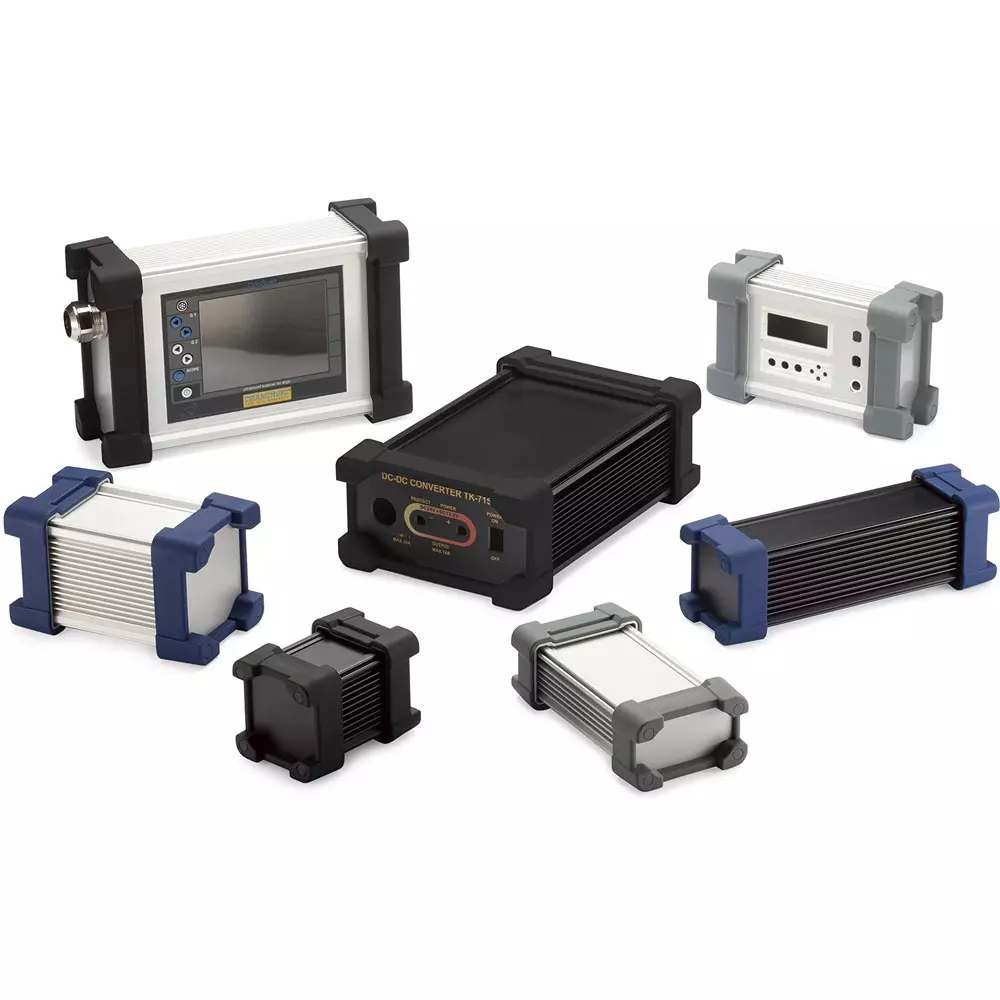

Aluminum Case with Protector |
Color |
Black & Black |
Country of Origin |
Japan |
Protection Class |
IP68 (1 meter submersible for 24 hours) |
Operating Temperature Range |
-40 to 105℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
652.5 |
Specifications |
Shield type, the inside of the panel is unpainted and conductive |
Thermal Resistance |
4.52 ℃ / W |
Panel Material |
Aluminum Die-Cast ADC12 |
Import Country |
Direct Import from Japan |
Monotaro ID |
88234851 |
Surface Treatment |
Panel: Painted (inner surface untreated), Body frame: Anodized and clear coated |
Tightening Torque (Nm) |
1 |
Dimension W |
113.9 mm (Aluminum case dimensions: 106.3 mm ) |
Material (Gasket) |
Conductive Silicone Rubber |
Dimension d |
140 mm (Aluminum case dimensions: 110 mm ) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material Type |
Silicon Rubber Protector |
Dimension H |
65.1 mm (aluminum case dimensions: 56.3 mm) |
