| Type | BB |
| Series | EX Series |
| Model No | EX19-11-18BB |
| Material | Mounting Screws (Hexagonal Socket): Stainless Steel |
Type |
BB |
Series |
EX Series |
Model No |
EX19-11-18BB |
Material |
Mounting Screws (Hexagonal Socket): Stainless Steel |
Type of Product |

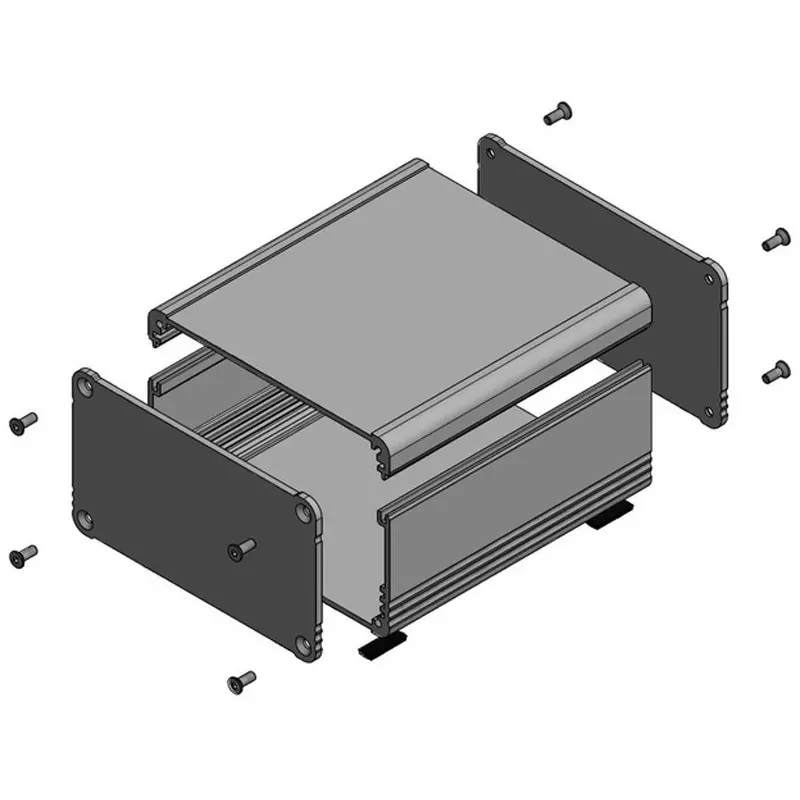

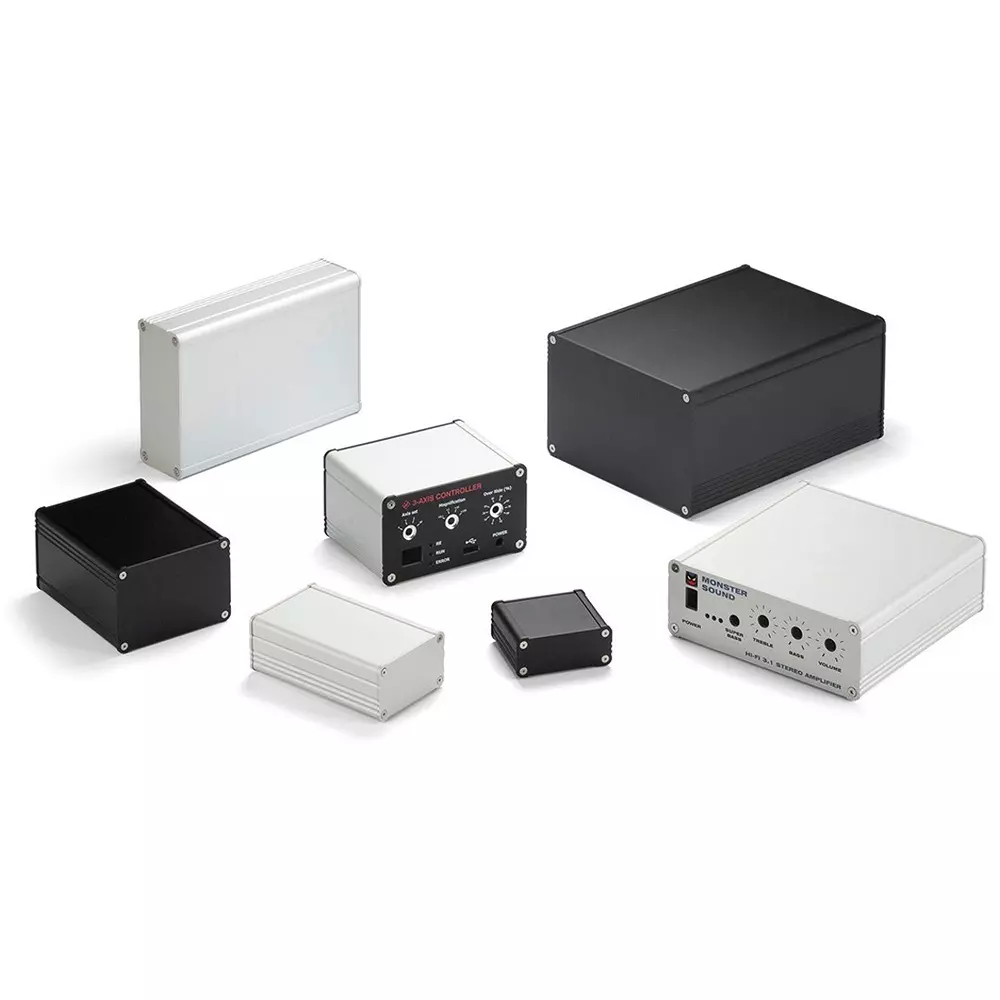

Extruded Aluminum Enclosure |
Color |
Black / Black |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Included Components |
[Screws] Hexagonal Socket Head Countersunk Screws M4x10x8, Hexagonal Wrench |
Cover Color |
Silver/Black (Top/Bottom) |
Import Country |
Direct Import from Japan |
Monotaro ID |
73802829 |
Surface Treatment |
Panel: Silver Anodized Aluminum, Black Anodized Aluminum, Upper And Lower Covers: Anodized Aluminum And Clear Coating, Mounting Screws (Hexagon Socket Head): Untreated |
Dimension D (Φmm) |
4 |
Dimension C (Φmm) |
172 |
Dimension B (Φmm) |
98 |
Dimension A (Φmm) |
131 |
Outer Dimension d (mm) |
177 |
Outer Dimension W (mm) |
186.5 |
Outer Dimension H (mm) |
106.5 |
Cover Material |
Aluminum Extrusion A6063S-T5 (Top And Bottom) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material (Rubber Feet) |
Polyurethane/Synthetic Rubber |
Rubber Foot |
Black |
