| Series | TMB Series |
| Features | Waterproof / Dustproof / Flame Retardant |
| Model No | TMB-20PC |
| Material | [Top Cover] Polycarbonate (Ul94V-0), [Body] Glass Fiber Reinforced Polycarbonate (Ul94V-0), [Gasket] Polyurethane, [Conductive Plate] Brass, [Terminal Screws, Terminal Block Mounting Screws] Iron, [Cover Mounting Screws] Glass Fiber Reinforced Nylon |
Series |
TMB Series |
Features |
Waterproof / Dustproof / Flame Retardant |
Model No |
TMB-20PC |
Material |
[Top Cover] Polycarbonate (Ul94V-0), [Body] Glass Fiber Reinforced Polycarbonate (Ul94V-0), [Gasket] Polyurethane, [Conductive Plate] Brass, [Terminal Screws, Terminal Block Mounting Screws] Iron, [Cover Mounting Screws] Glass Fiber Reinforced Nylon |
Type of Product |

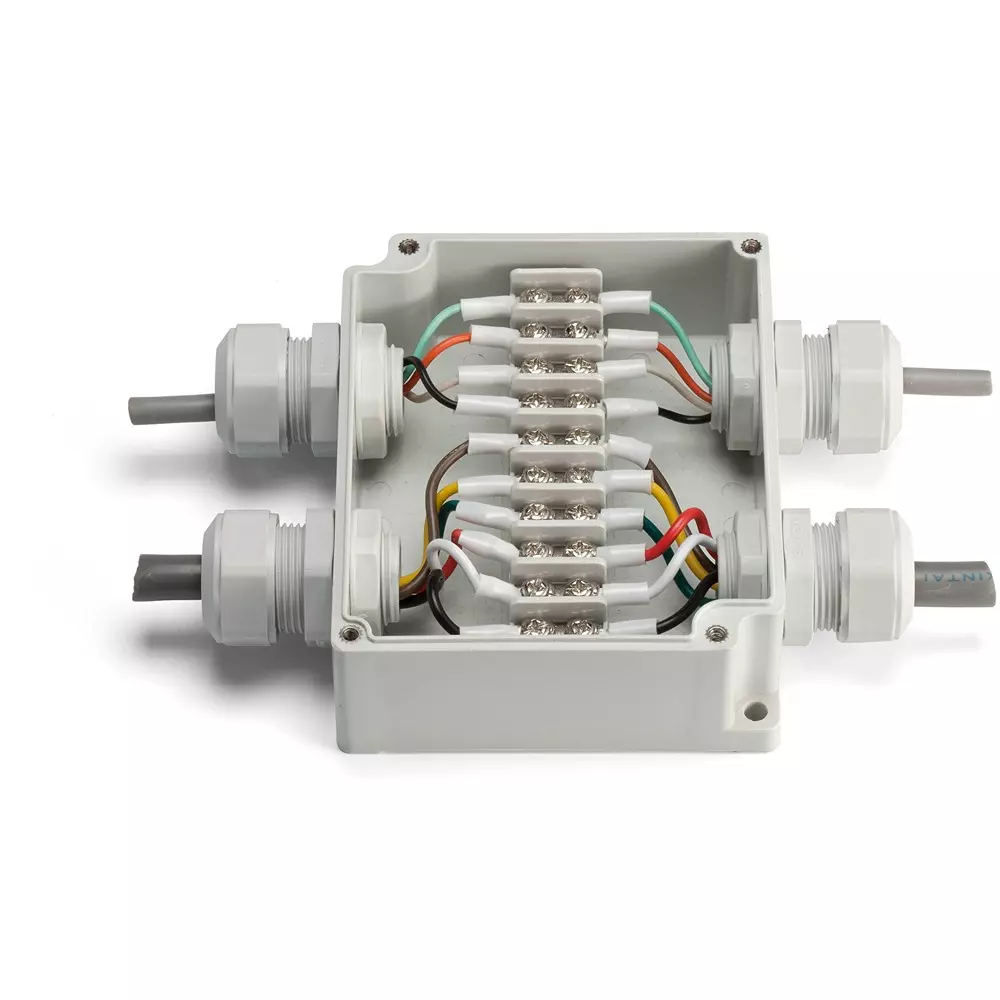

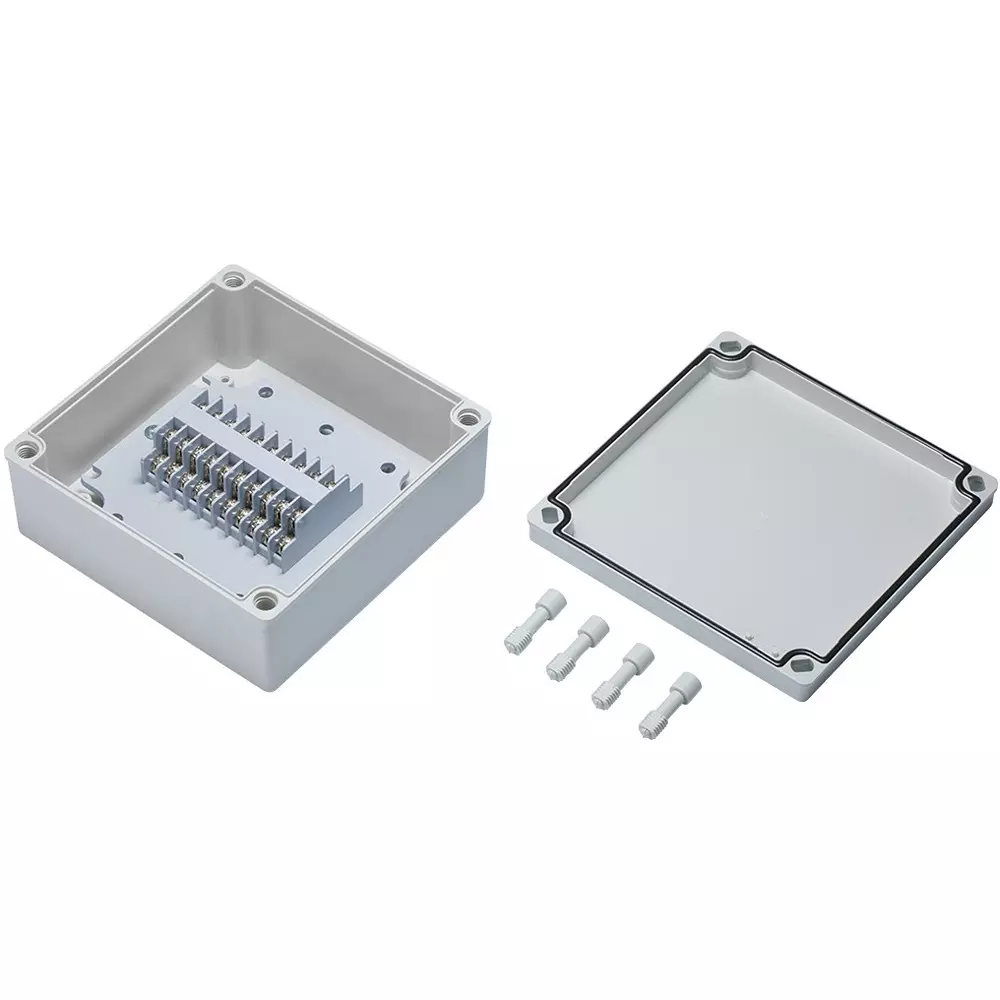

Junction Box with Built-In Terminal Block |
Color |
[Top Cover, Body] Light Gray, [Gasket] Black, [Cover Mounting Screws] White Gray |
Country of Origin |
Japan |
Protection Class |
IP65 |
Rated Current (A) |
17.5 |
Operating Temperature Range |
-10 to +60℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Mass (g) |
560 |
Import Country |
Direct Import from Japan |
Monotaro ID |
88235795 |
Surface Treatment |
[Conductive Plate, Terminal Screws] Nickel Plated, [Terminal Block Mounting Screws] Trivalent Chromate |
Rated Voltage (V) |
400 |
Tightening Torque (Nm) |
[Cover] 1, [Terminal Block] 0.8 |
Dimension L (mm) |
160 |
Dimension W |
160 mm |
Dimension H (Φmm) |
70 |
Rating of Suitable Cable |
1.5 mm² |
Terminal Block |
10Px2 Rows |
Number of Terminal Block Poles |
10Px2 Rows |
Suitable Terminal |
R1.25-3.5 |
