| Series | WP Series |
| Features | Waterproof / Flame Retardant |
| Model No | WP6-8-3G |

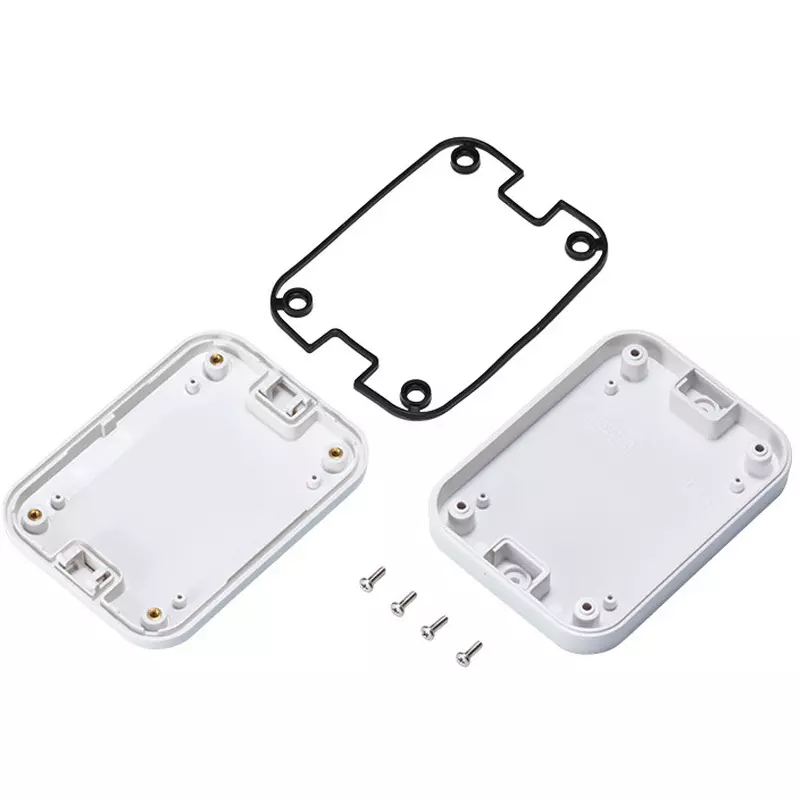

| Material | [Top Cover, Body, Blind Cover] Asa Resin (Ul94Hb), [Gasket] Silicone Rubber, [Mounting Screws (Binding Head)] Stainless Steel |
Series |
WP Series |
Features |
Waterproof / Flame Retardant |
Model No |
WP6-8-3G |
Material |
[Top Cover, Body, Blind Cover] Asa Resin (Ul94Hb), [Gasket] Silicone Rubber, [Mounting Screws (Binding Head)] Stainless Steel |
Type of Product |
Waterproof Box |
Color |
[Top Cover, Body, Blind Cover] White Gray, [Gasket] Black |
Country of Origin |
Japan |
Protection Class |
IP68 |
Body Material |
Asa Resin (Ul94Hb) |
Operating Temperature Range |
-20 to +60℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
49 |
Import Country |
Direct Import from Japan |
Monotaro ID |
55130626 |
Surface Treatment |
Mounting Screw (Binding Head): Unprocessed |
Tightening Torque (Nm) |
0.25 to 0.3 |
Material (Gasket) |
Silicon Rubber |
Outer Dimension d (mm) |
80 |
Outer Dimension W (mm) |
60 |
Outer Dimension H (mm) |
30 |
Cover Material |
Asa Resin (Ul94Hb) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Mounting Screw |
M2x8 (4) |
Effective dimension (width) (mm) |
53 (Internal) |
Effective dimension (depth) (mm) |
51 (Internal) |
Effective Dimension (height) (mm) |
24.7 (Internal) |
