| Series | TMA Series |
| Model No | TMA-20P |
| Material | Aluminum Die-Cast |

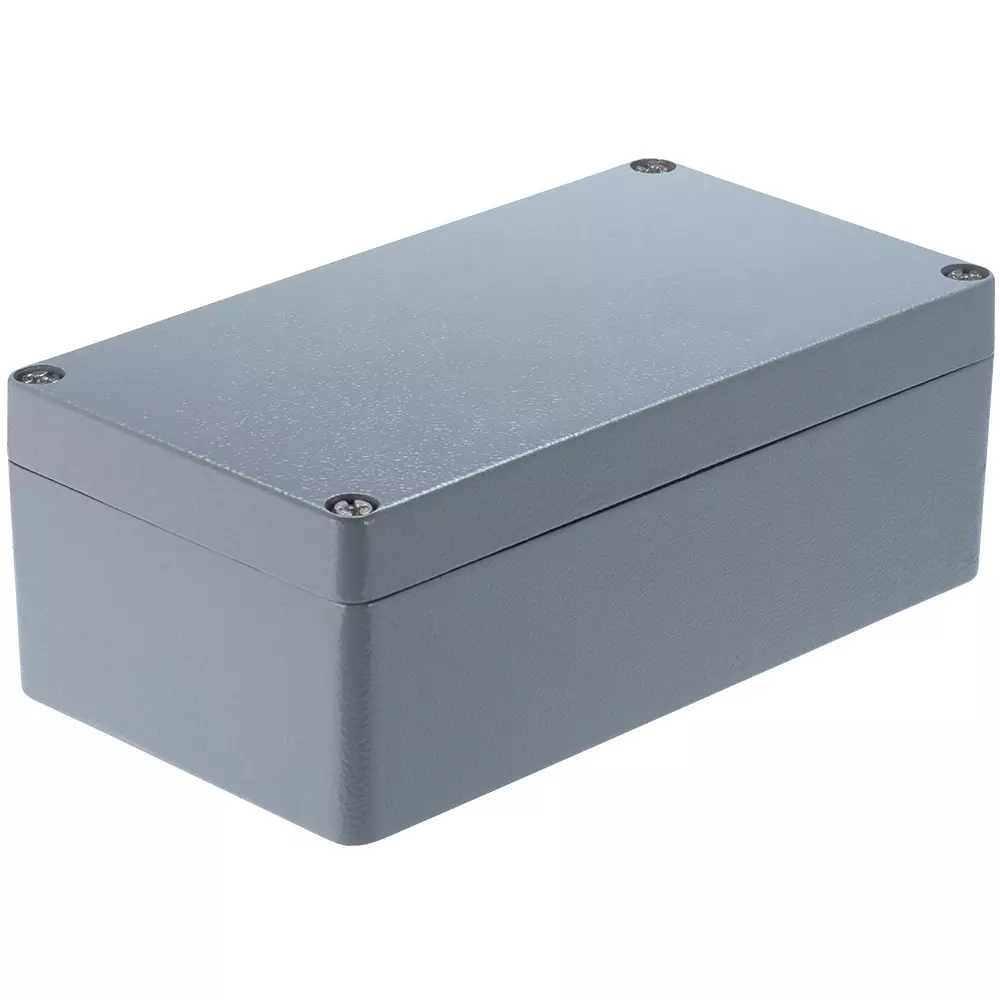

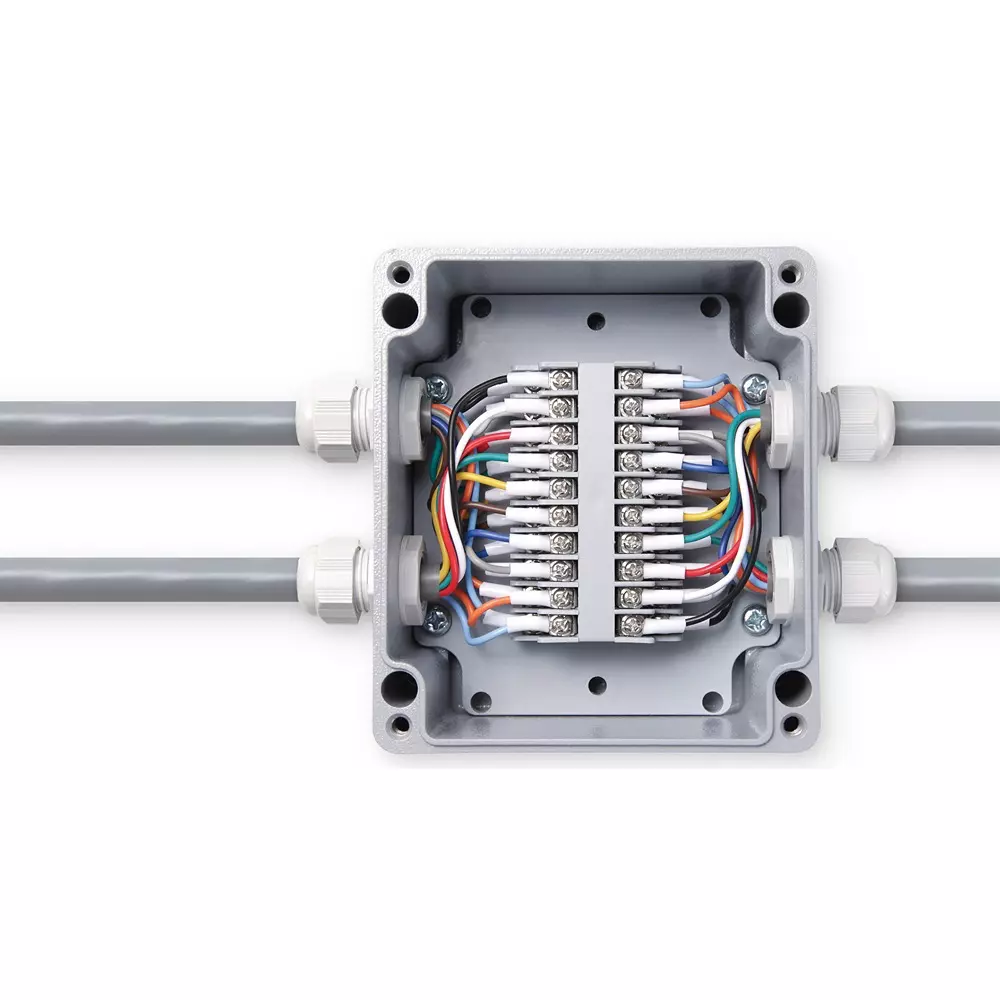

| Type of Product | Aluminum Die-Cast Terminal Box |
Series |
TMA Series |
Model No |
TMA-20P |
Material |
Aluminum Die-Cast |
Type of Product |
Aluminum Die-Cast Terminal Box |
Country of Origin |
Japan |
Protection Class |
IP65 |
Rated Current (A) |
17.5 |
Operating Temperature Range |
-40 to 80℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
1426 |
Specifications |

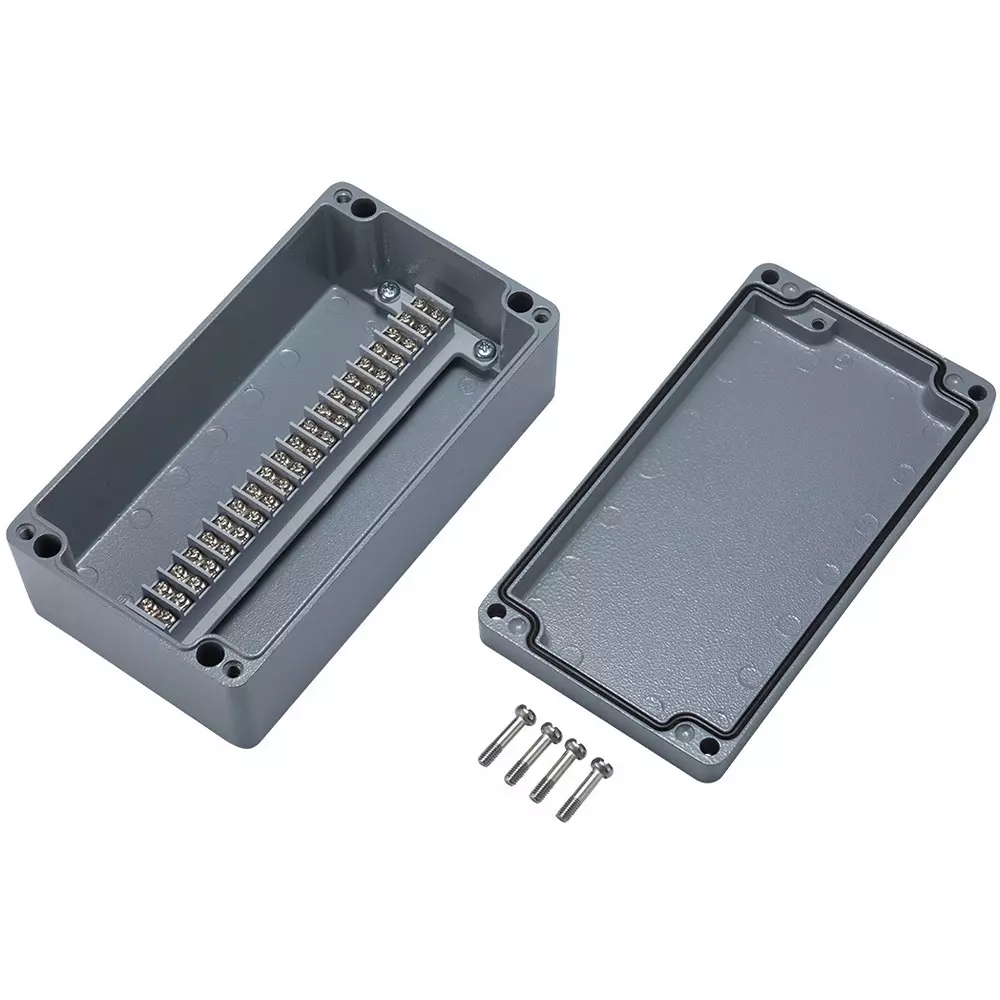

●Cover tightening torque (N m): 1 ●Material (body): Aluminum die-cast ●Material (top cover): Aluminum die-cast ●Material (terminal screw): Iron (pan M3.5) ●Material (terminal base ): PBT resin (UL94V-0) ●Material (terminal block mounting screw): Iron (pan M4, M6) ●Material (cover screw): Stainless steel ●Surface treatment (body): Gray painting ●Surface treatment (top cover): Gray paint ●Surface treatment (conductive plate): Nickel plating ●Surface treatment (terminal screws): Nickel plating (pan head M3.5) ●Surface treatment (terminal block mounting screw): Trivalent chromate (pan head M4, M6) ●Surface treatment (Cover screw): Untreated ●Color (terminal base): Light gray ●Quantity: Top cover, body, gasket, terminal basex1, cover screwx4, terminal block mounting screw (pan-head M4, M6)x2 to 4, conductive platex6-30, terminal screw (pan-head M3.5)x12-60 ● Rated applicable wire (mm <sup>2</sup> ): 1.5 ● Standard tightening torque (N m): 0.8 |
Import Country |
Direct Import from Japan |
Monotaro ID |
88235856 |
Rated Voltage (V) |
400 |
Dimension L (mm) |
120 |
Dimension W |
220 mm |
Material (Gasket) |
Polyurethane |
Dimension H (Φmm) |
80 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Number of Terminal Block Poles |
20P |
Material (Conductive Plate) |
Brass |
