Ships within 25 days
View
View
View
View
| Type | BI |
| Series | EXP Series |
| Features | Shock Resistance |
| Model No | EXP15-8-11BI |
Type |
BI |
Series |
EXP Series |
Features |
Shock Resistance |
Model No |
EXP15-8-11BI |
Material |
Corner Guard: Silicone Rubber, Mounting Screw (Hexagon Socket): Stainless Steel |
Type of Product |

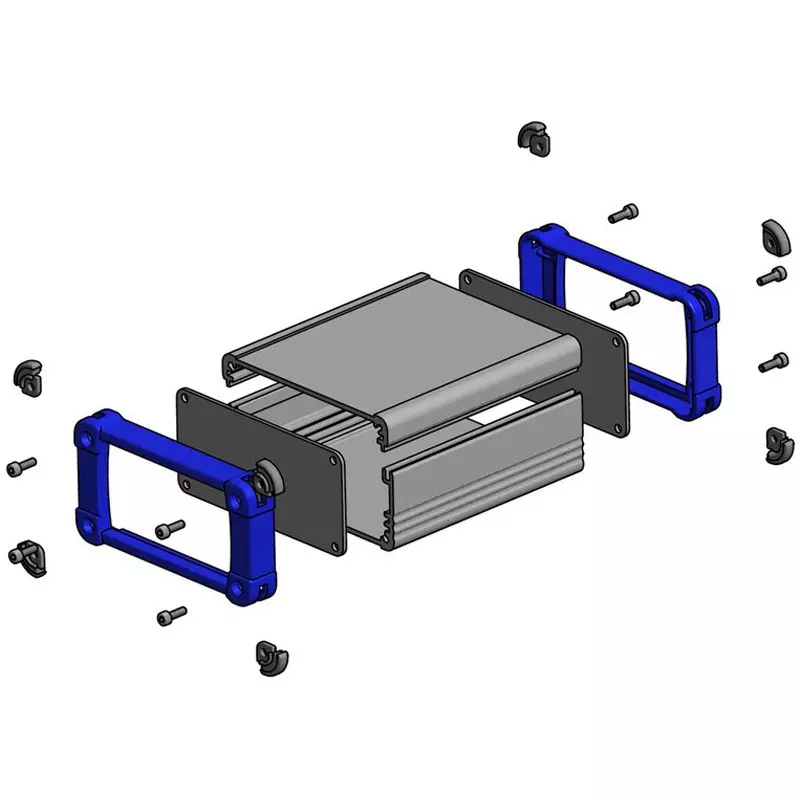

Aluminum Enclosure with Corner Guard |
Color |
Black / Indigo |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Included Components |
Hexagon Socket Head Bolt M3x10x8 Pieces, Hexagon Wrench |
Panel Material |
Aluminum Plate A1100 P |
Import Country |
Direct Import from Japan |
Monotaro ID |
55072447 |
Surface Treatment |
Panel: Painted, Cover: Top/Bottom: Anodized And Clear Coated |
RoHS Directive |
Correspondence |
Frame Material |
Pc + Abs Resin (Ul94V-0 Main Component) |
Outer Dimension d (mm) |
110 |
Outer Dimension W (mm) |
151 |
Outer Dimension H (mm) |
81 |
Cover Material |
Top/Bottom: Aluminum Extrusion A6063S-T5 |
Effective dimension (width) (mm) |
106.8 (Internal) |
Effective dimension (depth) (mm) |
93 (Internal) |
Effective Dimension (height) (mm) |
64 (Internal) |
