| Type | SG |
| Series | EXP Series |
| Features | Shock Resistance |
| Model No | EXP7-3-9SG |
Type |
SG |
Series |
EXP Series |
Features |
Shock Resistance |
Model No |
EXP7-3-9SG |
Material |
Corner Guard: Silicone Rubber, Mounting Screw (Hexagon Socket): Stainless Steel |
Type of Product |

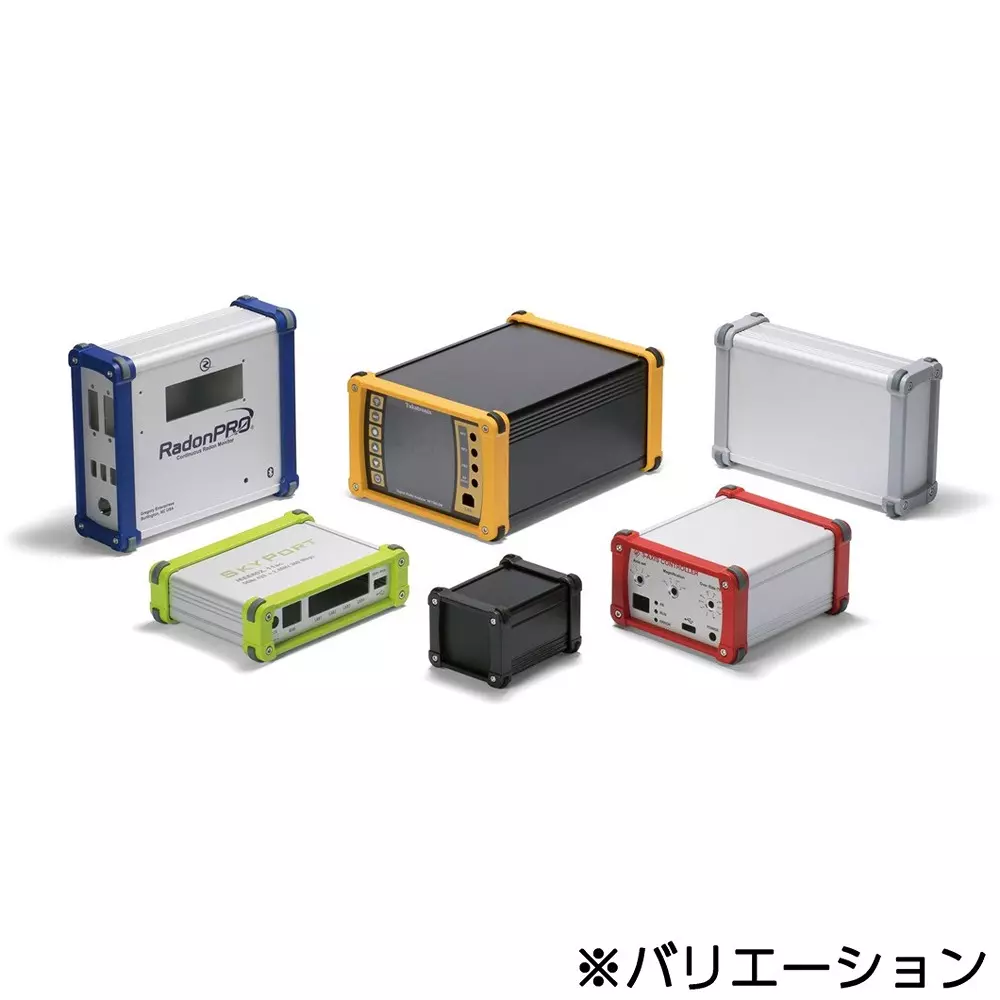

Aluminum Enclosure with Corner Guard |
Color |
Silver gray |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Included Components |
Hexagon Socket Head Bolt M2.5x8x8 Pieces, Hexagon Wrench |
Panel Material |
Aluminum Plate A1100 P |
Import Country |
Direct Import from Japan |
Monotaro ID |
55073314 |
Surface Treatment |
Panel: Painted, Cover: Top/Bottom: Anodized And Clear Coated |
RoHS Directive |
Correspondence |
Frame Material |
Pc + Abs Resin (Ul94V-0 Main Component) |
Outer Dimension d (mm) |
87 |
Outer Dimension W (mm) |
69 |
Outer Dimension H (mm) |
34 |
Cover Material |
Top/Bottom: Aluminum Extrusion A6063S-T5 |
Effective dimension (width) (mm) |
46 (Internal) |
Effective dimension (depth) (mm) |
73 (Internal) |
Effective Dimension (height) (mm) |
19.6 (Internal) |
