Ships within 25 days
View
View
View
View
| Type | SB |
| Series | EXPE Series |
| Features | Shock Resistance |
| Model No | EXPE15-5-11SB |
Type |
SB |
Series |
EXPE Series |
Features |
Shock Resistance |
Model No |
EXPE15-5-11SB |
Material |
Corner Guard: Silicone Rubber, Shield Gasket: Conductive Fiber/Tpe, Mounting Screw (Hexagon Socket): Stainless Steel |
Type of Product |

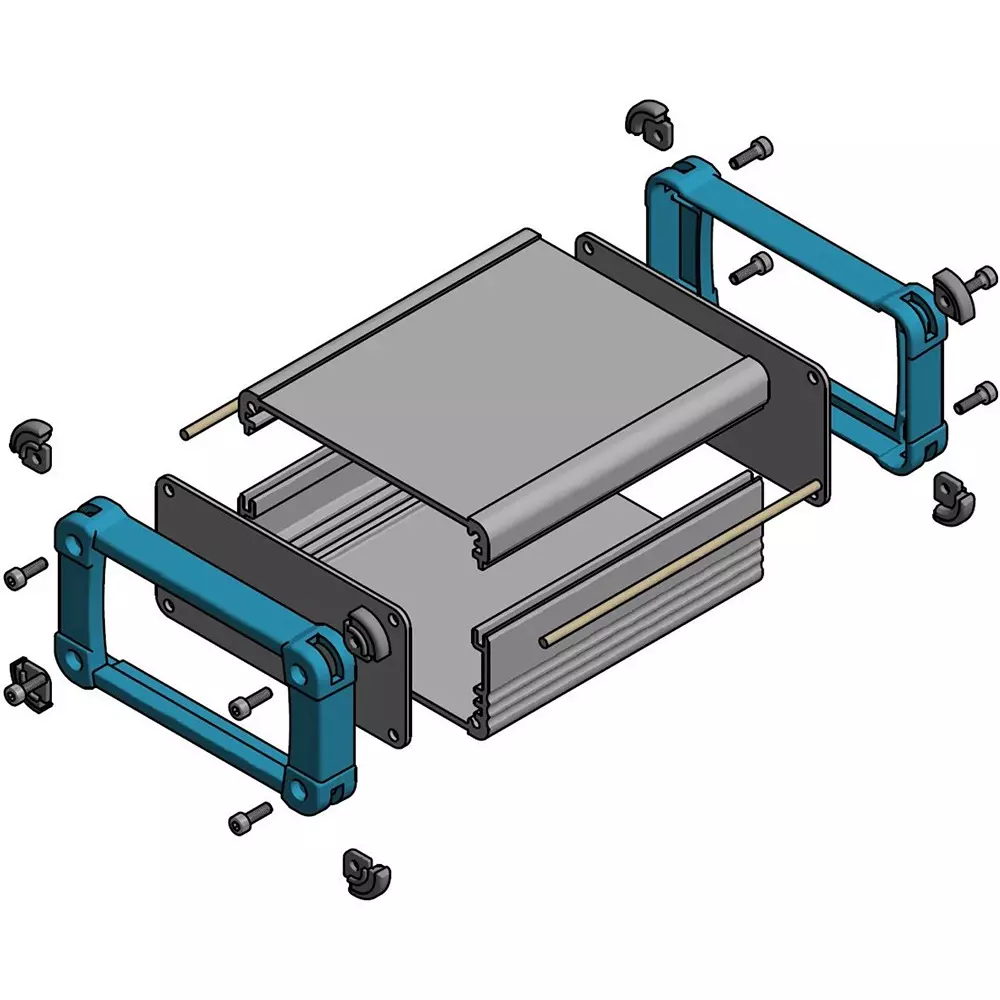

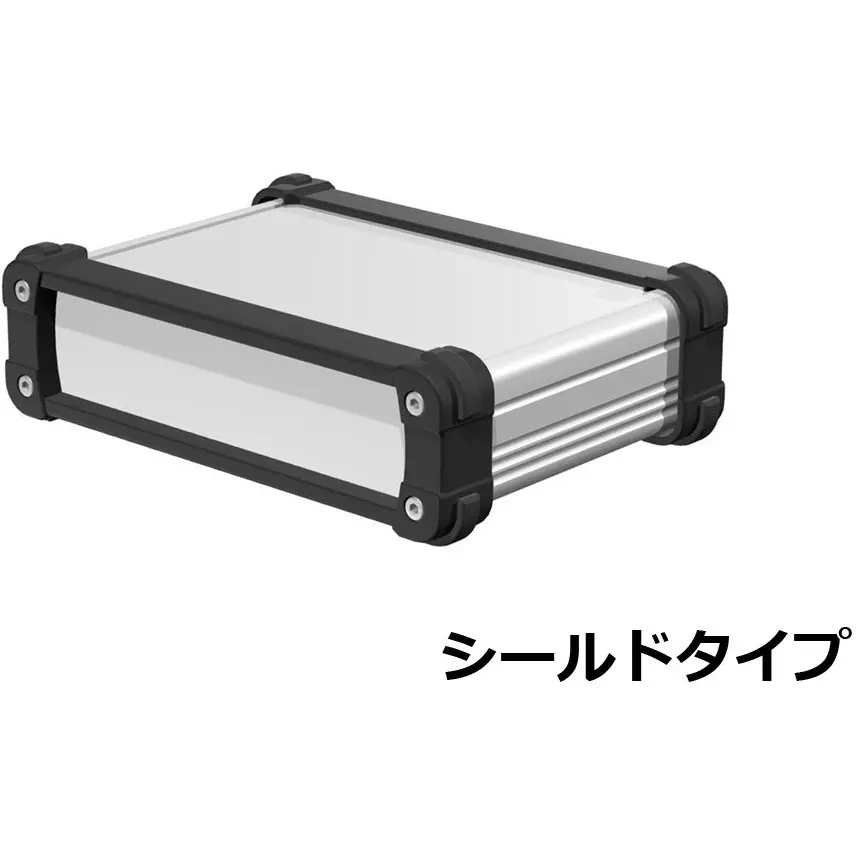

EMC Shielding Enclosure with Corner Guard |
Color |
Silver / Black |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Included Components |
Hexagon Socket Head Bolt M3x10x8 Pieces, Hexagon Wrench |
Panel Material |
Aluminum Plate A1100 P |
Import Country |
Direct Import from Japan |
Monotaro ID |
55067382 |
Surface Treatment |
Panel: Painted, Back Surface Conductive Treatment, Cover: Top/Bottom: Painted - Untreated Interior |
Frame Material |
Pc + Abs Resin (Ul94V-0 Main Component) |
Outer Dimension d (mm) |
110 |
Outer Dimension W (mm) |
151 |
Outer Dimension H (mm) |
46 |
Cover Material |
Top/Bottom: Aluminum Extrusion A6063S-T5 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Effective dimension (width) (mm) |
106.8 (Internal) |
Effective dimension (depth) (mm) |
93 (Internal) |
Effective Dimension (height) (mm) |
29 (Inside) |
