Ships within 25 days
View
View
View
View
| Type | Normal Type |
| Series | AW Series |
| Features | Waterproof And Dustproof |
| Model No | AW16-9-28NGS |
Type |
Normal Type |
Series |
AW Series |
Features |
Waterproof And Dustproof |
Model No |
AW16-9-28NGS |
Material |
Flanged Side Plate: Aluminum Die-Cast Adc12, Mounting Screws (Binding): Stainless Steel |
Type of Product |

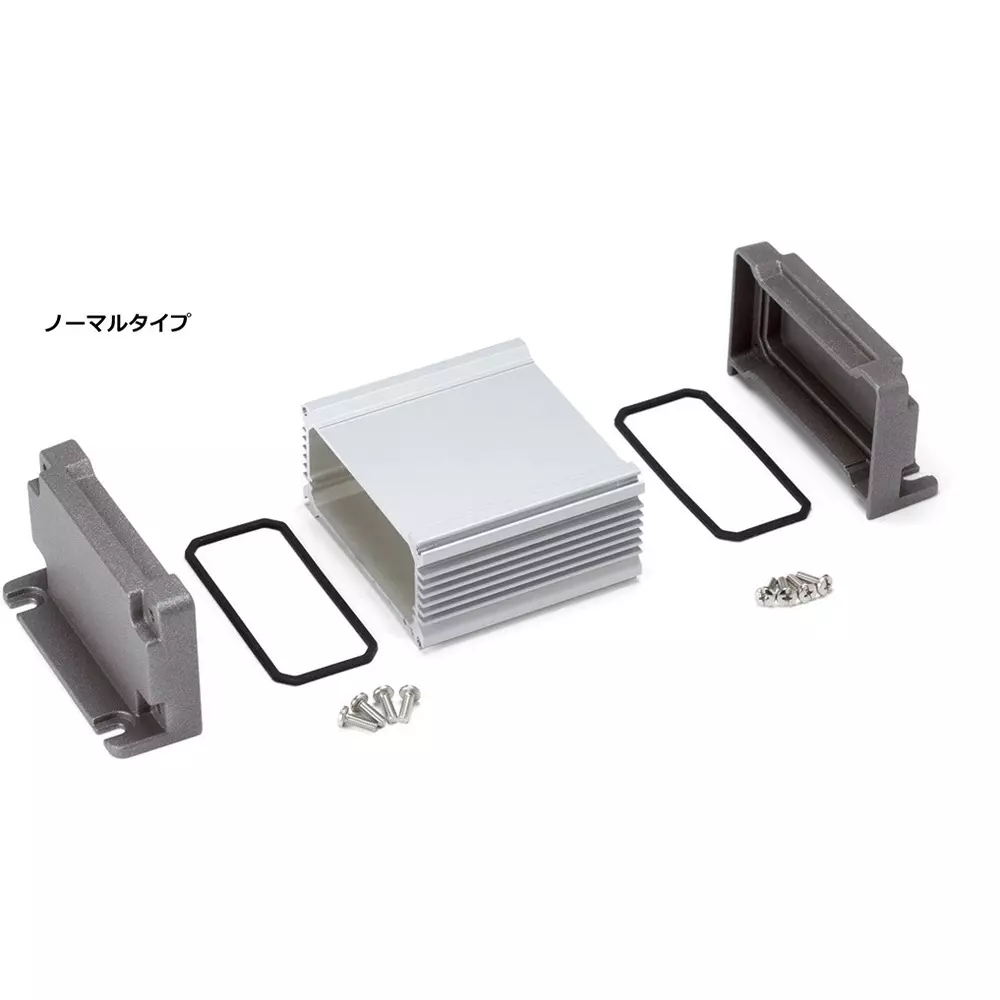

Flanged Aluminum Enclosure |
Color |
Metallic Gray / Silver |
Country of Origin |
Japan |
Protection Class |
Ip68 (1 Meter Submersible For 24 Hours) |
Body Material |
Aluminum Extrusion Material A6063S-T5 |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
1459 |
Import Country |
Direct Import from Japan |
Monotaro ID |
88231525 |
Surface Treatment |
Flanged Side Panel: Powder Coating |
Dimension D (Φmm) |
275 |
Dimension C (Φmm) |
3 |
Tightening Torque (Nm) |
1 |
Dimension L (mm) |
304 |
Dimension W |
156.3 mm |
Material (Gasket) |
Silicon Rubber |
Dimension B (Φmm) |
61.5 |
Dimension A (Φmm) |
136.5 |
Dimension H (Φmm) |
87 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Temperature Range (℃) |
-40 to 105 |
