| Series | WP Series |
| Features | Waterproof / Flame Retardant |
| Model No | WP20-28-7G |
| Material | [Top Cover, Body, Blind Cover] Asa Resin (Ul94Hb), [Gasket] Silicone Rubber, [Mounting Screws (Binding Head)] Stainless Steel |
Series |
WP Series |
Features |
Waterproof / Flame Retardant |
Model No |
WP20-28-7G |
Material |
[Top Cover, Body, Blind Cover] Asa Resin (Ul94Hb), [Gasket] Silicone Rubber, [Mounting Screws (Binding Head)] Stainless Steel |
Type of Product |

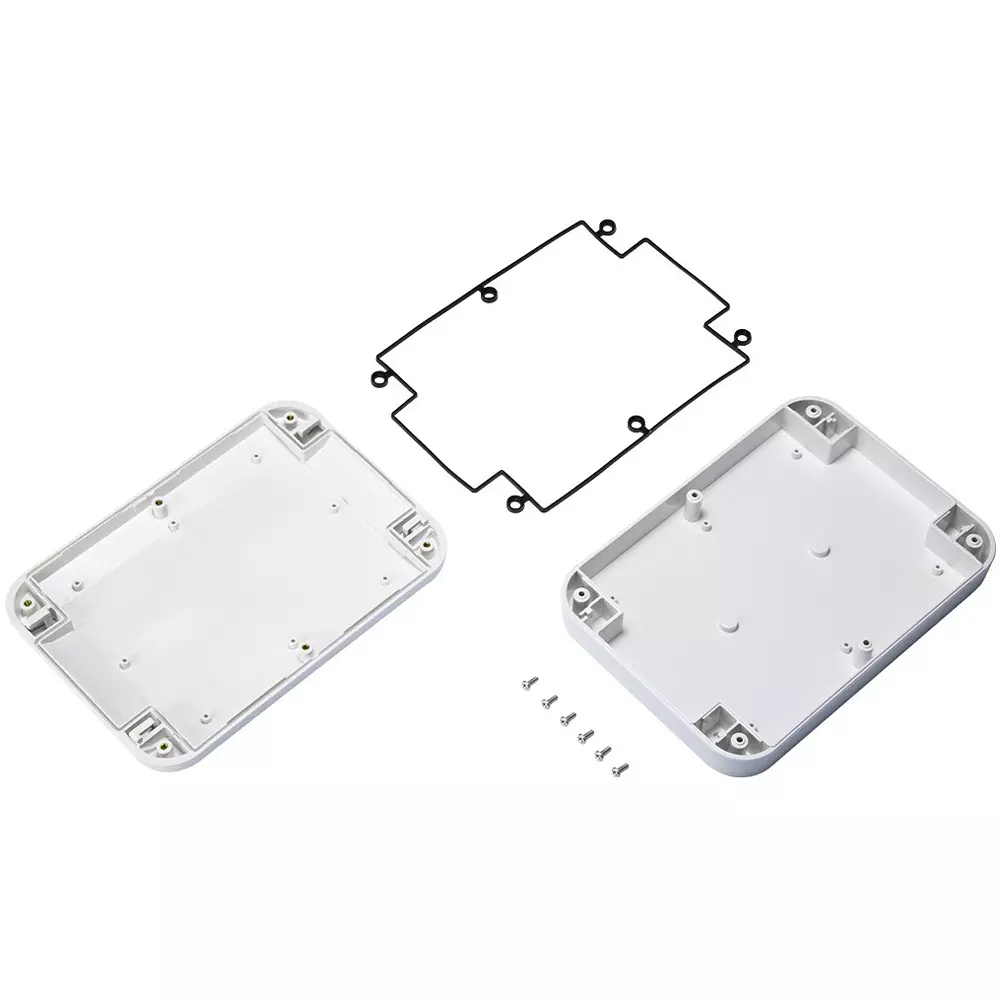

Waterproof Box |
Color |
[Top Cover, Body, Blind Cover] White Gray, [Gasket] Black |
Country of Origin |
Japan |
Protection Class |
IP67 |
Body Material |
Asa Resin (Ul94Hb) |
Operating Temperature Range |
-20 To +55 (-20 To +60 When Using Protective Vent)℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
646 |
Import Country |
Direct Import from Japan |
Monotaro ID |
62298819 |
Surface Treatment |
Mounting Screw (Binding Head): Unprocessed |
Tightening Torque (Nm) |
0.45 to 0.55 |
Trusco Part No. |
196-9018 |
Material (Gasket) |
Silicon Rubber |
Outer Dimension d (mm) |
280 |
Outer Dimension W (mm) |
200 |
Outer Dimension H (mm) |
65 |
Cover Material |
Asa Resin (Ul94Hb) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Mounting Screw |
M3x8 (8 Pieces) |
Effective dimension (width) (mm) |
189 (Internal) |
Effective dimension (depth) (mm) |
229 (Internal) |
Effective Dimension (height) (mm) |
58.5 (Internal) |
