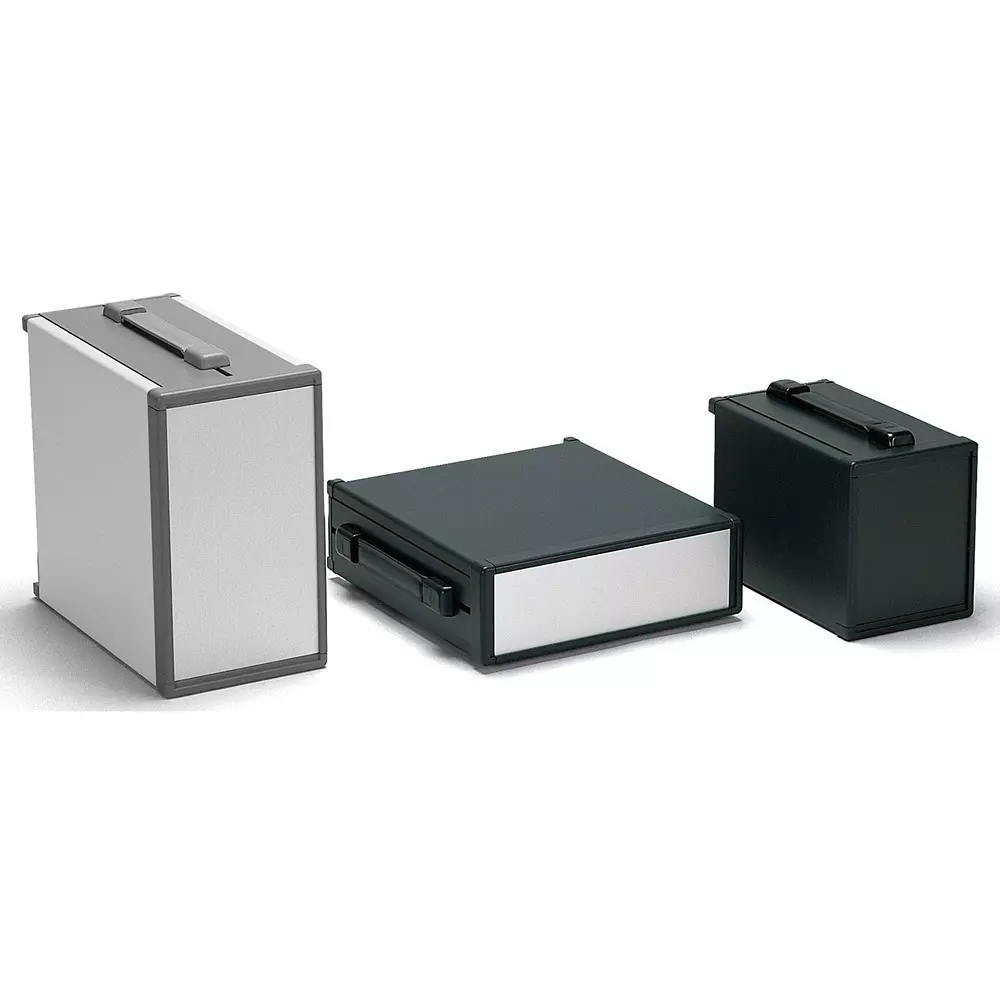

TAKACHI MOY Series Aluminum Case with Band Handle 450x66x370 mm, MOY66-37-45BS

Name: TAKACHI MOY Series Aluminum Case with Band Handle 450x66x370 mm, MOY66-37-45BS
Brand: TAKACHI
SKU: ELE.JUN.643333736
Price: 27139 INR
Availability: InStock

Visit the TAKACHI Store

EMI starts at ₹2411/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Series	MOY Series
Model No	MOY66-37-45BS
Type of Product	Aluminum Case with Band Handle
Color	Silver (Panel)/Black (Top And Bottom Covers)/Black (Side Frame)

More TAKACHI Junction Boxes products More Junction Boxes products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Series	MOY Series
Model No	MOY66-37-45BS
Type of Product	Aluminum Case with Band Handle
Color	Silver (Panel)/Black (Top And Bottom Covers)/Black (Side Frame)
Country of Origin	Japan
Weight (Kg)	2.6
Name of Manufacturer/Packer/Importer	Takachi Electric Industrial Co., Ltd.
Specifications	●Material (front panel): Aluminum plate A1100P t2.0 ●Material (rear panel): Aluminum plate A1100P t2.0 ●Material (side frame): Aluminum extrusion material A6063S-T5 ●Material (front frame): Aluminum extrusion material A6063S- T5●Material (rear frame): Aluminum extrusion material A6063S-T5●Material (upper and lower covers): Steel plate SPCC t1.0●Material (corner block): Aluminum die-cast ADC12●Material (rear feet): Flame-retardant ABS (UL94V -0 main components) ●Material (band handle): PP resin + elastomer ●Surface treatment (front panel): Silver anodized/black alumite ●Surface treatment (rear panel): Silver anodized/black alumite ●Surface treatment (side frame): Gray Painting/black painting ●Surface treatment (front frame): Gray painting/black painting ●Surface treatment (rear frame): Silver alumite ●Surface treatment (upper and lower covers): Light gray painting/black/painting ●Surface treatment (corner block): Gray paint/black paint Color (rear feet): Grain gray/grain black Color (band handle): Gray/Black Number of pieces: Front panel, rear panel, band handlex1, top and bottom covers 1 each, side frame, front frame, Rear frame, corner block, rear feetx2, rubber feetx4
Screw Type	Yes (Plate M4x6/Trivalent Chromatex4, Pan M4x8/Trivalent Chromatex8, Bind M4x10/Trivalent Black Chromatex4)
Import Country	Direct Import from Japan
Monotaro ID	88249095
Dimension D (Φmm)	450
Dimension W	370 mm
Dimension H (Φmm)	66
RoHS Directive (10 Substances Compliant)	Correspondence
Material (Rubber Feet)	Polyurethane
Rubber Foot	Black
