| Type | G Type |
| Series | BCAP Series |
| Features | Waterproof And Dustproof, Openable |
| Model No | BCAP172711G |
Type |
G Type |
Series |
BCAP Series |
Features |
Waterproof And Dustproof, Openable |
Model No |
BCAP172711G |
Material |
[Top Cover, Body] ABS Resin, [Gasket] Polyurethane, [Latch] Stainless Steel, [Mounting Base Screws] Iron |
Type of Product |

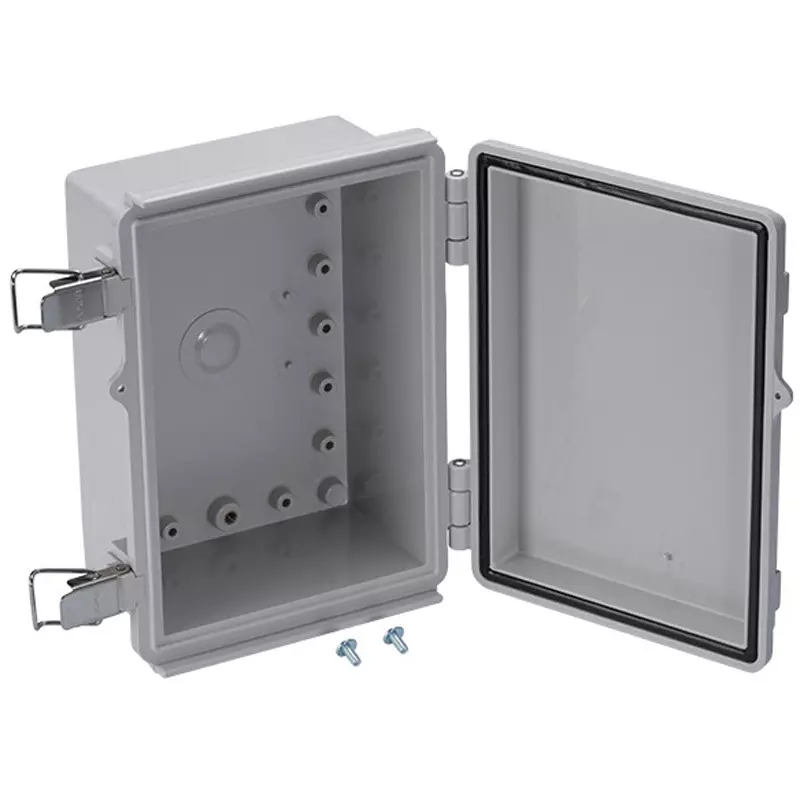

Latch-Hinged Plastic Box |
Color |
[Top Cover, Body] White Gray, [Gasket] Black |
Country of Origin |
Japan |
Protection Class |
IP65 |
Body Material |
ABS resin |
Operating Temperature Range |
-10 to +60℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Body Color |
White gray |
Specifications |
Nuts: None |
Cover Color |
White gray |
Import Country |
Direct Import from Japan |
Monotaro ID |
88217534 |
Surface Treatment |
[Latch] Untreated, [Mounting Base Screws] Trivalent Chromate |
Dimension D (Φmm) |
270 |
Dimension C (Φmm) |
232 (Bottom Mounting Hole) |
Dimension W |
170 mm |
Material (Gasket) |
Polyurethane |
Dimension A (Φmm) |
132 (Bottom Mounting Hole) |
Dimension H (Φmm) |
110.5 |
Flame Retardance |
UL94HB |
Cover Material |
ABS resin |
RoHS Directive (10 Substances Compliant) |
Correspondence |
