Ships within 25 days
View
View
View
View
| Series | JW Series |
| Model No | JW-2W-4P |
| Material | Rubber Bushing: Silicon Rubber, Terminal Block: Pa6/Brass, Cover Mounting Tapping Screw: Stainless Steel |

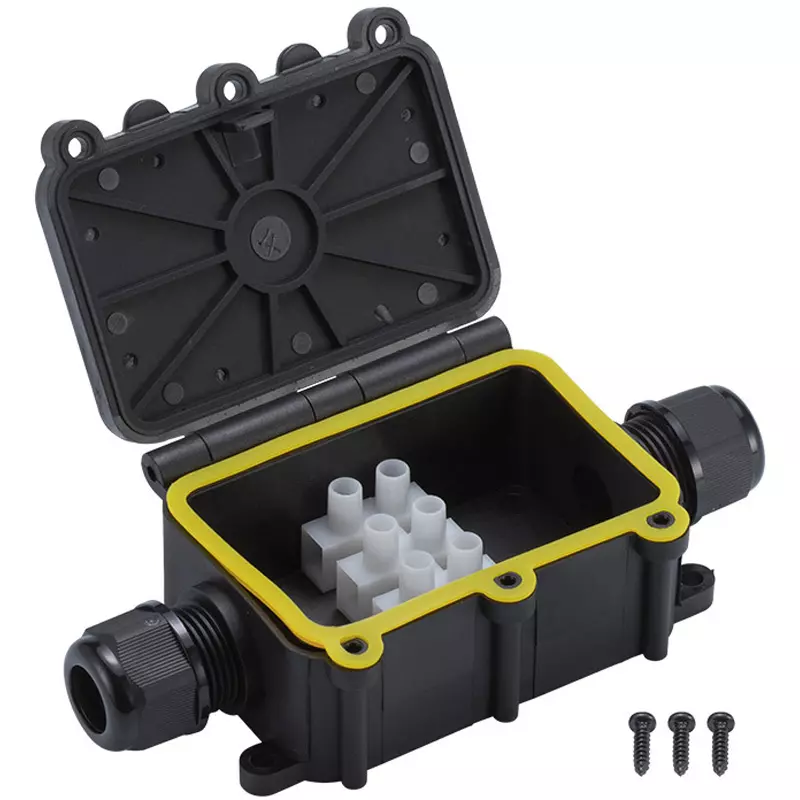

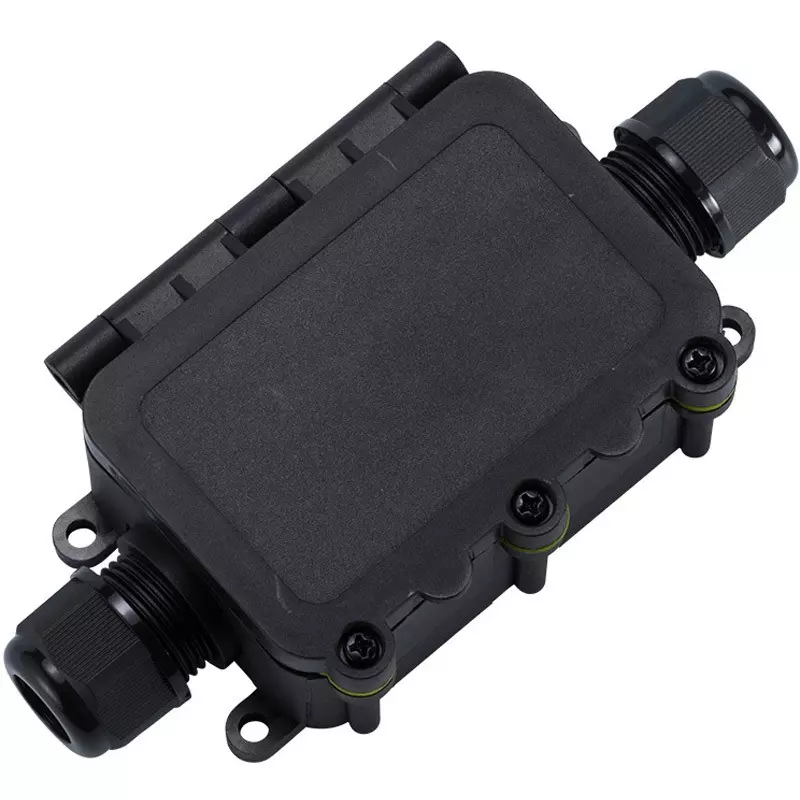

| Type of Product | Waterproof Junction Box |
Series |
JW Series |
Model No |
JW-2W-4P |
Material |
Rubber Bushing: Silicon Rubber, Terminal Block: Pa6/Brass, Cover Mounting Tapping Screw: Stainless Steel |
Type of Product |
Waterproof Junction Box |
Color |
Gasket: Yellow, Lock Nut: Black, Rubber Bushing: Green, Cover Mounting Tapping Screw: Black |
Country of Origin |
Japan |
Protection Class |
Ip68 (1 Meter Submersible For 24 Hours) |
Rated Current (A) |
Terminals: 40 |
Body Material |
PA66 |
Operating Temperature Range |
-25 to 60℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Cover Color |
Black |
Mass (g) |
110.5 |
Import Country |
Direct Import from Japan |
Monotaro ID |
70397865 |
Surface Treatment |
Terminal Block: Nickel Plated, Cover Mounting Tapping Screws: Plated |
Rated Voltage (V) |
Terminal: AC450 |
Terminal Screw |
M3.5 minus |
Tightening Torque (Nm) |
Cover: 0.5 to 0.6 |
Material (Gasket) |
Silicon Rubber |
Outer Dimension d (mm) |
68 |
Outer Dimension W (mm) |
136 |
Outer Dimension H (mm) |
37.5 |
Cover Material |
PA66 |
Terminal Block |
4P |
No. of Branches |
2 |
Locknut Material |
PA6 |
