Ships within 25 days
View
View
View
View
| Series | MSY Series |
| Model No | MSY177-21-23B |

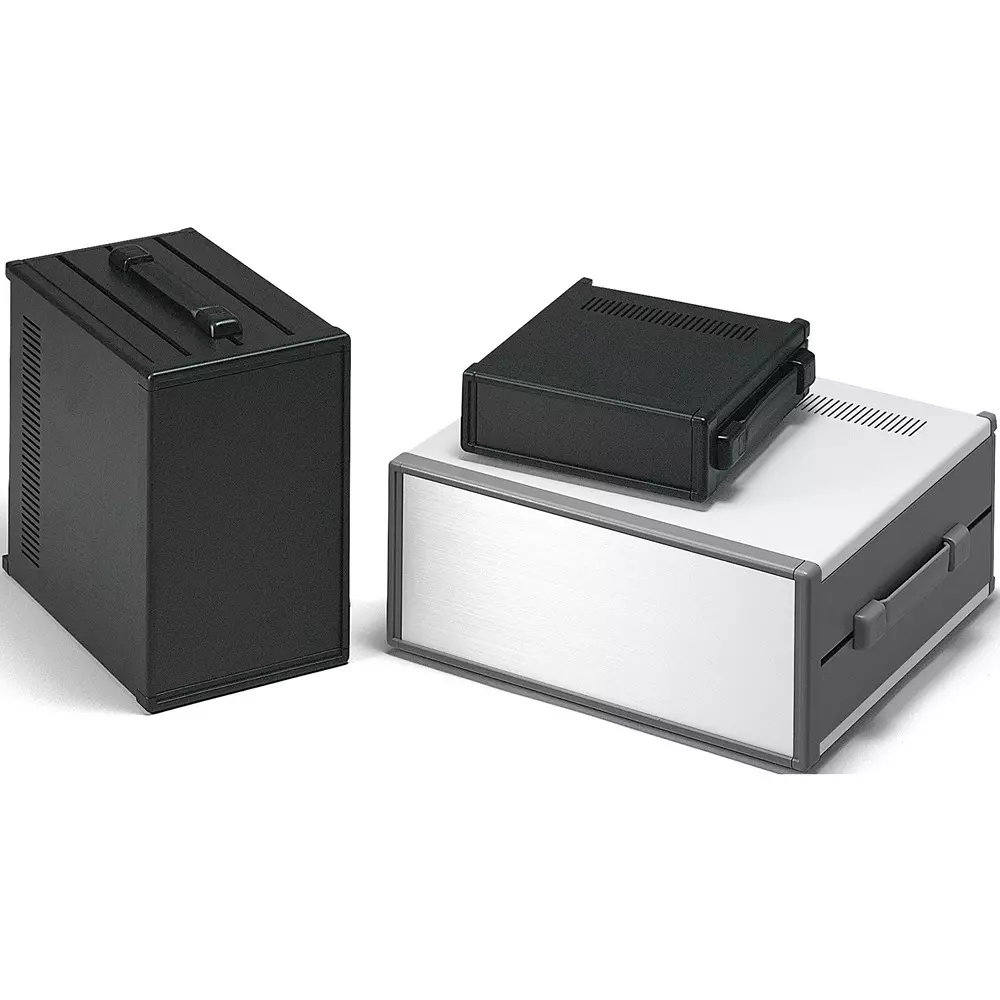

| Type of Product | Case with Band Handle |
| Color | Black (Panel)/Black (Top And Bottom Covers)/Black (Side Frame) |
Series |
MSY Series |
Model No |
MSY177-21-23B |
Type of Product |
Case with Band Handle |
Color |
Black (Panel)/Black (Top And Bottom Covers)/Black (Side Frame) |
Country of Origin |
Japan |
Weight (Kg) |
2.6 |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Specifications |
●Material (front panel): Aluminum plate A1100P t2.0 ●Material (rear panel): Aluminum plate A1100P t2.0 ●Material (side frame): Aluminum extrusion material A6063S-T5 ●Material (front frame): Aluminum extrusion material A6063S- T5●Material (rear frame): Aluminum extrusion material A6063S-T5●Material (upper and lower covers): Steel plate SPCC t1.0●Material (corner block): Aluminum die-cast ADC12●Material (rear feet): Flame-retardant ABS (UL94V -0 main components) ●Material (band handle): PP resin + elastomer ●Surface treatment (front panel): Silver anodized/black alumite ●Surface treatment (rear panel): Silver anodized/black alumite ●Surface treatment (side frame): Gray Paint/Black paint -Surface treatment (front frame): Gray paint/Black paint -Surface treatment (rear frame): Silver alumite -Surface treatment (upper and lower covers): Light gray paint/Black paint -Surface treatment (corner block): Gray Paint/black paint ●Color (rear feet): Grain gray/grain black ●Color (band handle): Gray/Black ●Quantity: Front panel, rear panel, band handlex1, top and bottom covers 1 each, side frame, front frame, rear Frame, corner block, rear feetx2, rubber feetx4 |
Screw Type |
Yes (Plate M4x6/Trivalent Chromatex4, Pan M4x8/Trivalent Chromatex8, Bind M4x10/Trivalent Black Chromatex4) |
Import Country |
Direct Import from Japan |
Monotaro ID |
88267487 |
Dimension D (Φmm) |
230 |
Dimension W |
210 mm |
Dimension H (Φmm) |
177 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material (Rubber Feet) |
Polyurethane |
Rubber Foot |
Black |
