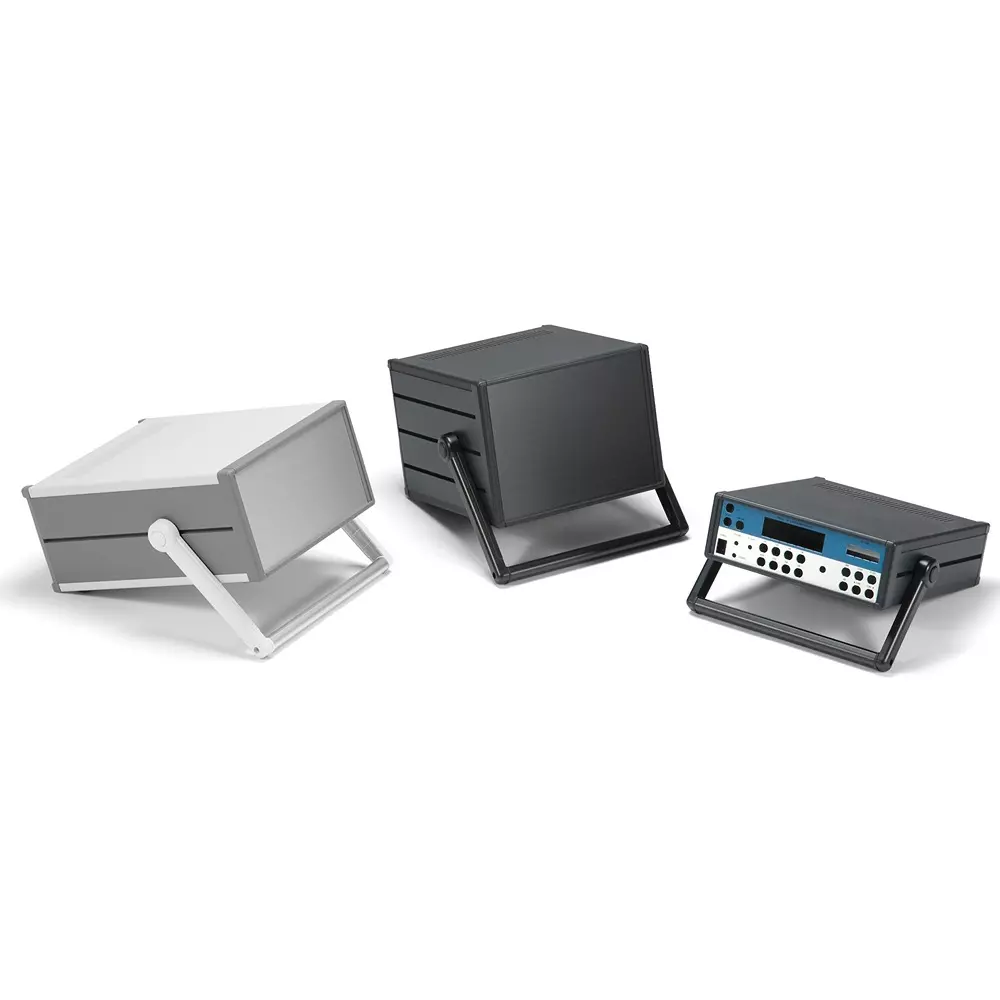

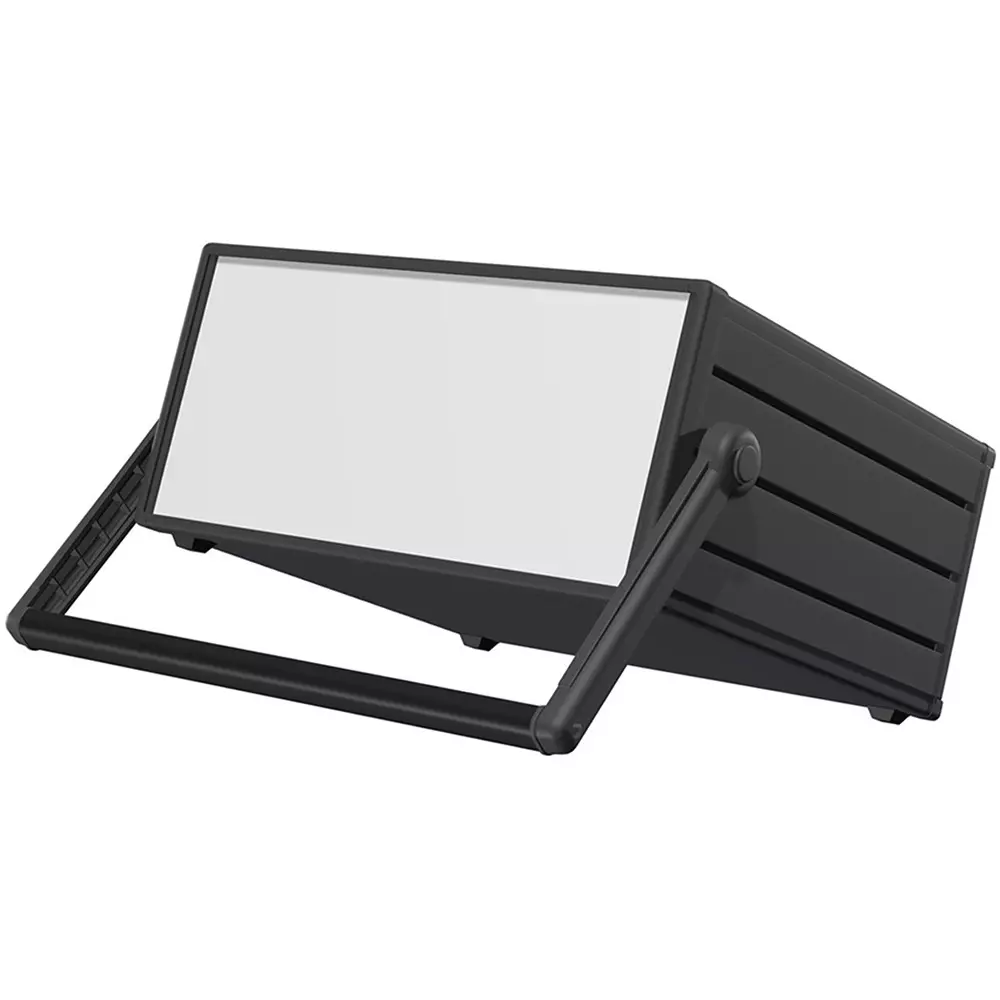

TAKACHI MSN Series Case with Step Handle 350x177x370 mm, MSN177-37-35BS

Name: TAKACHI MSN Series Case with Step Handle 350x177x370 mm, MSN177-37-35BS
Brand: TAKACHI
SKU: ELE.JUN.843355791
Price: 35399 INR
Availability: InStock

Visit the TAKACHI Store

EMI starts at ₹3145/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Series	MSN Series
Model No	MSN177-37-35BS
Type of Product	Case with Step Handle
Color	Silver (Panel)/Black (Top And Bottom Covers)/Black (Side Frame)

More TAKACHI Junction Boxes products More Junction Boxes products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Series	MSN Series
Model No	MSN177-37-35BS
Type of Product	Case with Step Handle
Color	Silver (Panel)/Black (Top And Bottom Covers)/Black (Side Frame)
Country of Origin	Japan
Weight (Kg)	5.2
Name of Manufacturer/Packer/Importer	Takachi Electric Industrial Co., Ltd.
Specifications	●Material (front panel): Aluminum plate A1100P t2.0 ●Material (rear panel): Aluminum plate A1100P t2.0 ●Material (side frame): Aluminum extrusion material A6063S-T5 ●Material (front frame): Aluminum extrusion material A6063S- T5●Material (rear frame): Aluminum extrusion material A6063S-T5●Material (upper and lower covers): Steel plate SPCC t1.0●Material (corner block): Aluminum die-cast ADC12●Material (rear feet): Flame-retardant ABS (UL94V -0 main components) ●Material (step handle): ABS resin (UL94HB) [Bracket]/Aluminum extrusion material A6063S-T5 [Grip] ●Surface treatment (front panel): Silver anodized/black anodized ●Surface treatment (rear panel): Silver anodized/black alumite ●Surface treatment (side frame): Gray painting/black painting ●Surface treatment (front frame): Gray painting/black painting ●Surface treatment (rear frame): Silver anodized ●Surface treatment (upper and lower covers): Light Gray painting/black painting ●Surface treatment (corner block): Gray painting/black painting ●Color (rear feet): Grain gray/grain black ●Color (step handle): Light gray/black (bracket)/Silver/black (grip) -Quantity: Front panel, rear panel, step handle (grip)x1, top and bottom cover each 1, side frame, front frame, rear frame, corner block, rear foot, step handle (bracket)x2, rubber feetx4
Screw Type	Yes (Plate M4x6/Trivalent Chromatex4, Pan M4x8/Trivalent Chromatex8, Bind M4x10/Trivalent Black Chromatex4)
Import Country	Direct Import from Japan
Monotaro ID	88262912
Dimension D (Φmm)	350
Dimension W	370 mm
Dimension H (Φmm)	177
RoHS Directive (10 Substances Compliant)	Correspondence
Material (Rubber Feet)	Polyurethane
Rubber Foot	Black
