| Series | MSN Series |
| Model No | MSN222-32-35B |

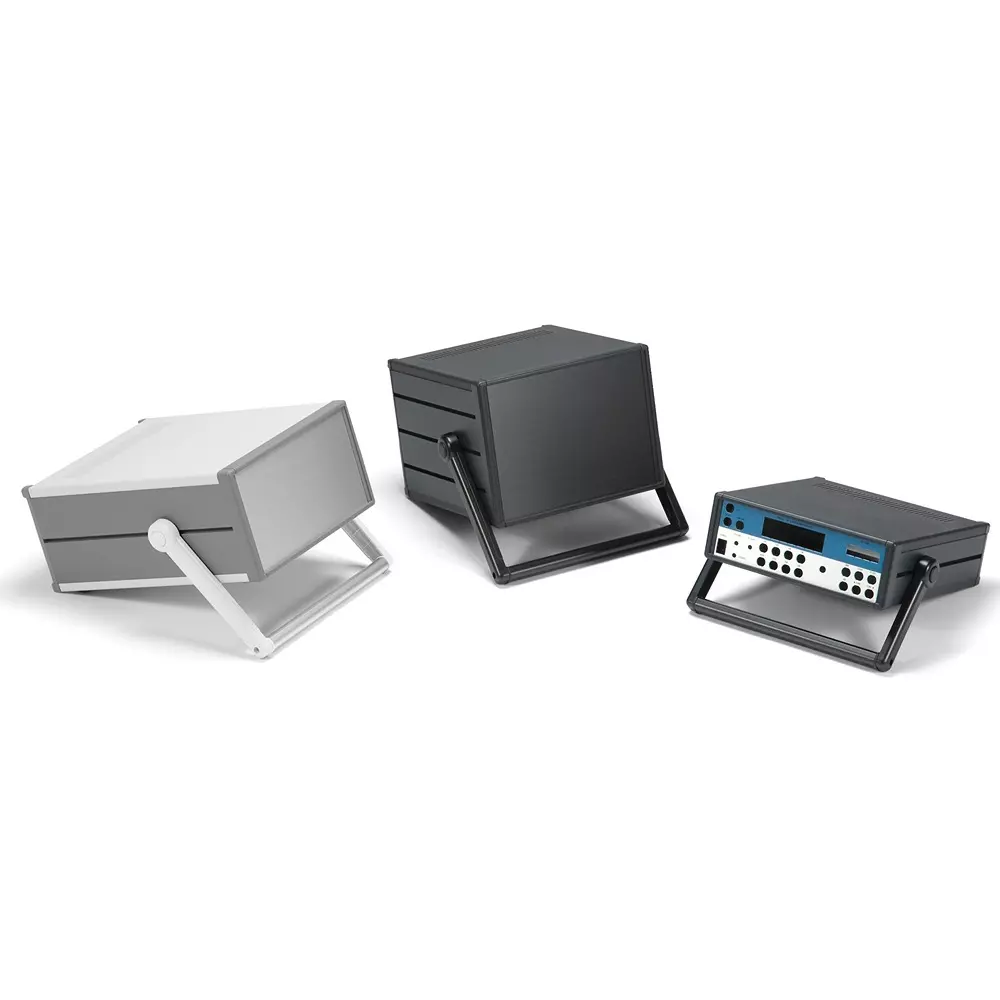

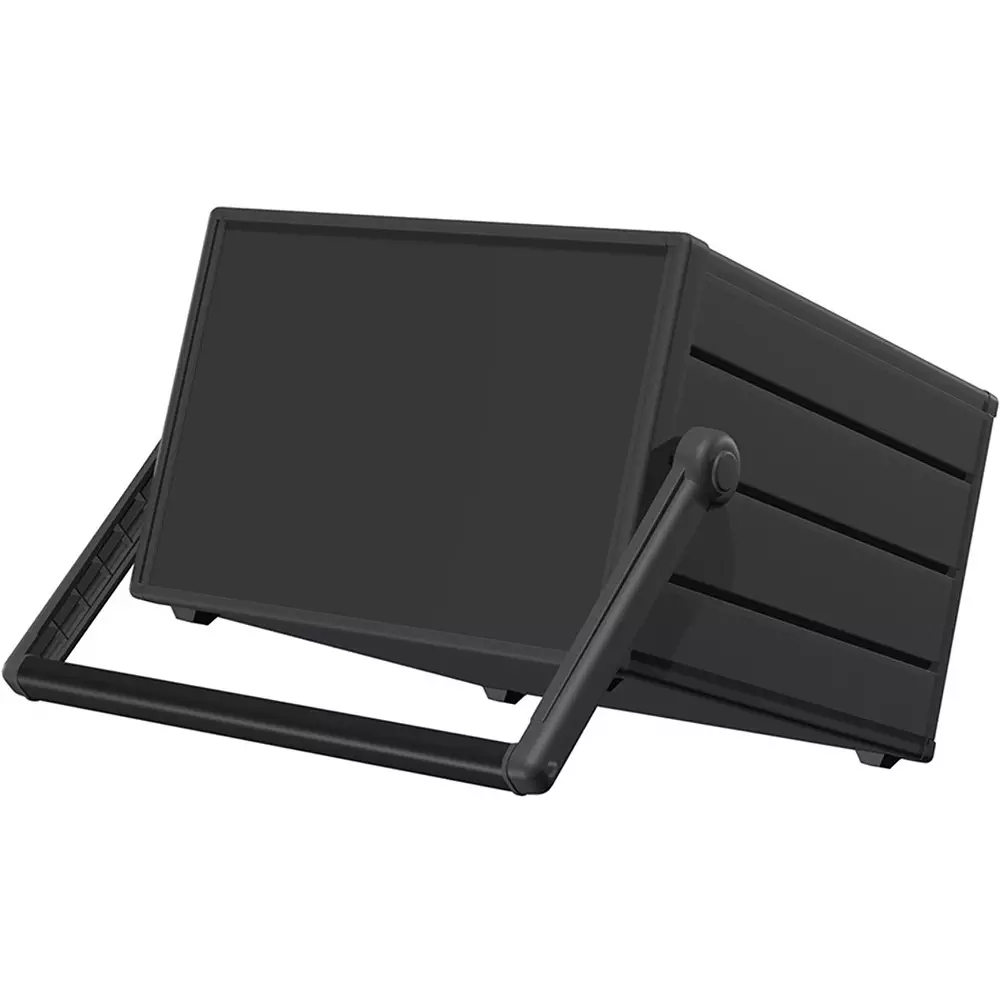

| Type of Product | Case with Step Handle |
| Color | Black (Panel)/Black (Top And Bottom Covers)/Black (Side Frame) |
Series |
MSN Series |
Model No |
MSN222-32-35B |
Type of Product |
Case with Step Handle |
Color |
Black (Panel)/Black (Top And Bottom Covers)/Black (Side Frame) |
Country of Origin |
Japan |
Weight (Kg) |
5.0999999999999996 |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Specifications |
●Material (front panel): Aluminum plate A1100P t2.0 ●Material (rear panel): Aluminum plate A1100P t2.0 ●Material (side frame): Aluminum extrusion material A6063S-T5 ●Material (front frame): Aluminum extrusion material A6063S- T5●Material (rear frame): Aluminum extrusion material A6063S-T5●Material (upper and lower covers): Steel plate SPCC t1.0●Material (corner block): Aluminum die-cast ADC12●Material (rear feet): Flame-retardant ABS (UL94V -0 main components) ●Material (step handle): ABS resin (UL94HB) [Bracket]/Aluminum extrusion material A6063S-T5 [Grip] ●Surface treatment (front panel): Silver anodized/black anodized ●Surface treatment (rear panel): Silver anodized/black alumite ●Surface treatment (side frame): Gray painting/black painting ●Surface treatment (front frame): Gray painting/black painting ●Surface treatment (rear frame): Silver anodized ●Surface treatment (upper and lower covers): Light Gray painting/black painting ●Surface treatment (corner block): Gray painting/black painting ●Color (rear feet): Grain gray/grain black ●Color (step handle): Light gray/black (bracket)/Silver/black (grip) -Quantity: Front panel, rear panel, step handle (grip)x1, top and bottom cover each 1, side frame, front frame, rear frame, corner block, rear foot, step handle (bracket)x2, rubber feetx4 |
Screw Type |
Yes (Plate M4x6/Trivalent Chromatex4, Pan M4x8/Trivalent Chromatex8, Bind M4x10/Trivalent Black Chromatex4) |
Import Country |
Direct Import from Japan |
Monotaro ID |
88264127 |
Dimension D (Φmm) |
350 |
Dimension W |
320 mm |
Dimension H (Φmm) |
221.5 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material (Rubber Feet) |
Polyurethane |
Rubber Foot |
Black |
