Ships within 25 days
View
View
View
View
| Type | BB |
| Series | EX Series |
| Model No | EX6-4-5BB |
| Material | Mounting Screws (Hexagonal Socket): Stainless Steel |
Type |
BB |
Series |
EX Series |
Model No |
EX6-4-5BB |
Material |
Mounting Screws (Hexagonal Socket): Stainless Steel |
Type of Product |

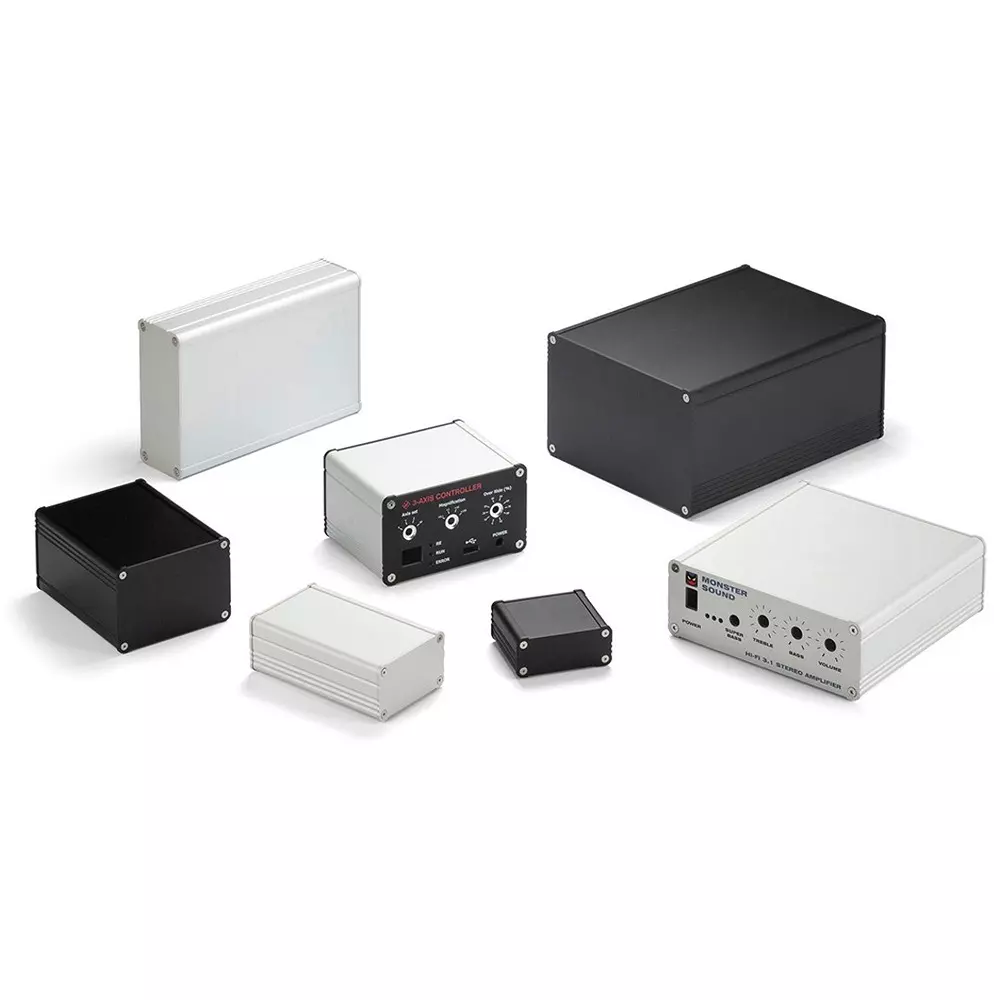

Extruded Aluminum Enclosure |
Color |
Black / Black |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Included Components |
[Screws] Hexagonal Socket Head Countersunk Screws M2.5x8x8 Pieces, Hex Wrench |
Cover Color |
Silver/Black (Top/Bottom) |
Import Country |
Direct Import from Japan |
Monotaro ID |
55124186 |
Surface Treatment |
Panel: Silver Anodized Aluminum, Black Anodized Aluminum, Upper And Lower Covers: Anodized Aluminum And Clear Coating, Mounting Screws (Hexagon Socket Head): Untreated |
Dimension D (Φmm) |
2.5 |
Dimension C (Φmm) |
45.2 |
Dimension F (Φmm) |
0.3 |
Dimension T |
2 mm |
Dimension B (Φmm) |
27 |
Dimension A (Φmm) |
52 |
Outer Dimension d (mm) |
50 |
Outer Dimension W (mm) |
60.6 |
Outer Dimension H (mm) |
35.6 |
Cover Material |
Aluminum Extrusion A6063S-T5 (Top And Bottom) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material (Rubber Feet) |
Polyurethane/Synthetic Rubber |
Dimension E (Φmm) |
0.9 |
Rubber Foot |
Black |
