| Type | EBS Type |
| Series | AWN Series |
| Features | Waterproof And Dustproof |
| Model No | AWN16-9-28EBS |
Type |
EBS Type |
Series |
AWN Series |
Features |
Waterproof And Dustproof |
Model No |
AWN16-9-28EBS |
Material |
Mounting Screws (Binding): Stainless Steel, Body Frame: Aluminum Extrusion A6063S-T5 |
Type of Product |
Aluminum Case |
Color |
Black / Silver |
Country of Origin |
Japan |
Protection Class |
Ip68 (1 Meter Submersible For 24 Hours) |
Operating Temperature Range |
-40 to 105℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
1385 |
Specifications |

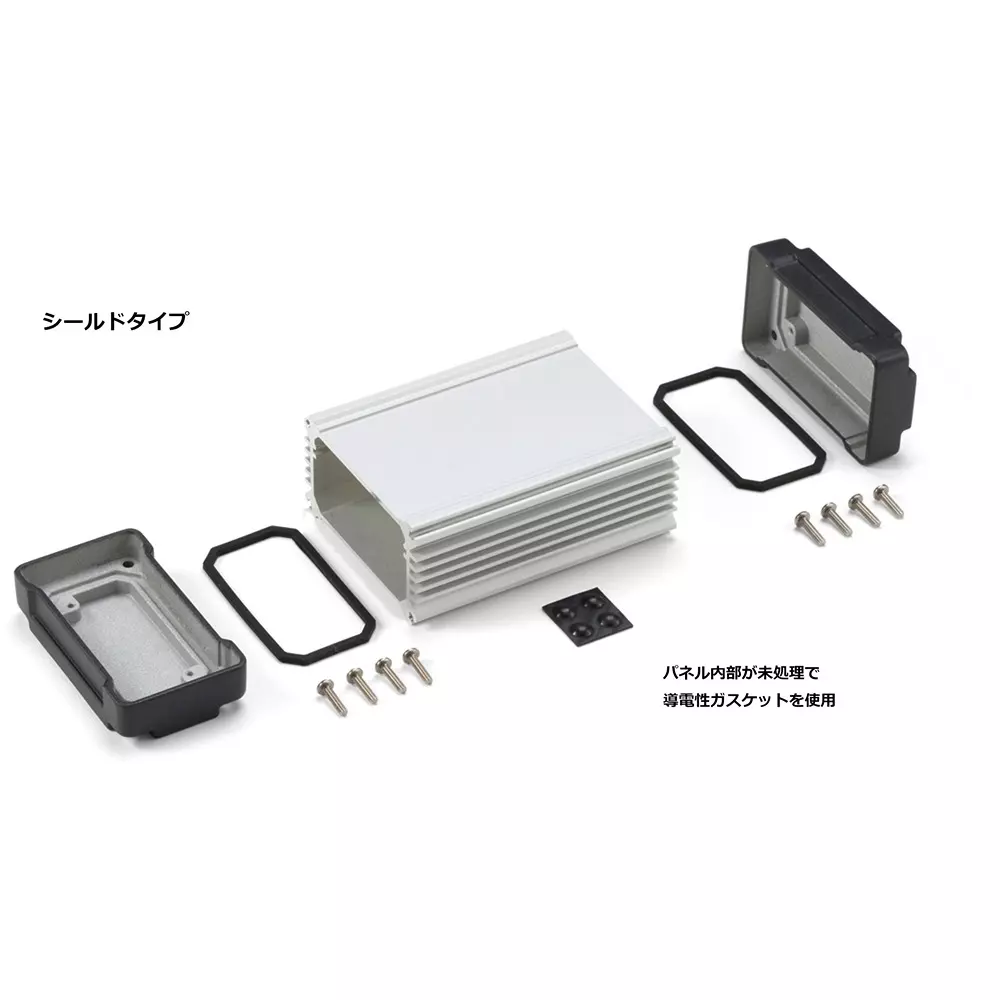

Shield Type, The Inside Of The Panel Is Unpainted And Conductive |
Panel Material |
Aluminum Die-Cast Adc12 |
Import Country |
Direct Import from Japan |
Monotaro ID |
88233713 |
Surface Treatment |
Panel: Painted (Inner Surface Untreated) |
Dimension D (Φmm) |
275 |
Dimension C (Φmm) |
3 |
Tightening Torque (Nm) |
1 |
Dimension W |
156.3 mm |
Material (Gasket) |
Conductive Silicone Rubber |
Dimension B (Φmm) |
61.5 |
Dimension A (Φmm) |
136.5 |
Dimension H (Φmm) |
81.3 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material (Rubber Feet) |
Polyurethane |
