Ships within 25 days
View
View
View
View
| Series | DRB Series |
| Model No | DRB15-10-10 |
| Material | Mounting Screws (Countersunk Head M3x5): Iron, Din Rail Mounting Bracket: Steel Plate, Bracket Mounting Screws (Pan Head M3x5): Iron |

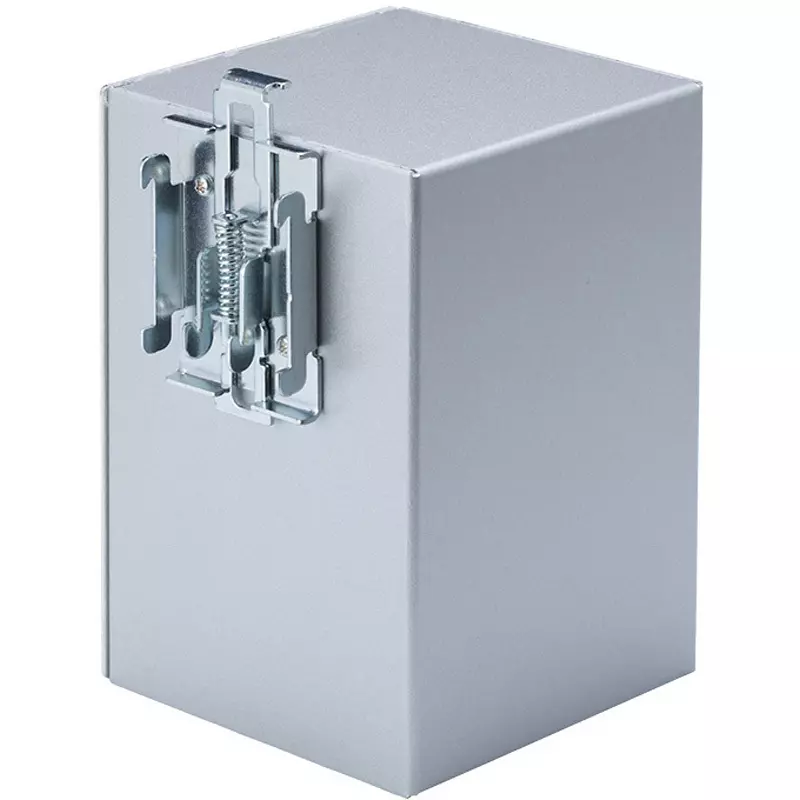

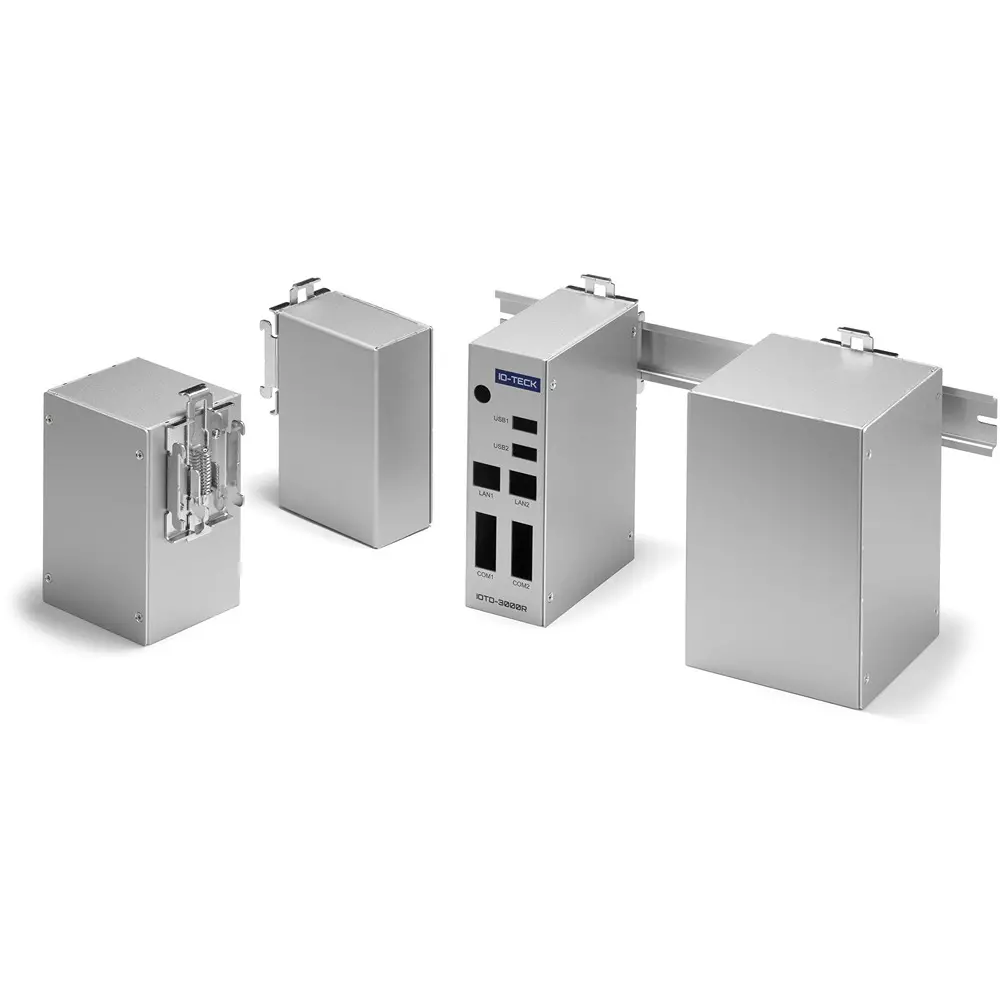

| Type of Product | Din Rail Box |
Series |
DRB Series |
Model No |
DRB15-10-10 |
Material |
Mounting Screws (Countersunk Head M3x5): Iron, Din Rail Mounting Bracket: Steel Plate, Bracket Mounting Screws (Pan Head M3x5): Iron |
Type of Product |
Din Rail Box |
Country of Origin |
Japan |
Body Material |
Aluminum Plate A1100P T1.5 |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
386.5 |
Import Country |
Direct Import from Japan |
Monotaro ID |
70397829 |
Surface Treatment |
Mounting Screws (Countersunk Head M3x5): Nickel Plated, Din Rail Mounting Bracket: Zinc Plated, Bracket Mounting Screws (Pan Head M3x5): Trivalent Chromate, Cover: Surface: Metallic Silver Coating, Back: Conductive Treatment, Body: Surface: Metallic Silver Coating, Back: Conductive Treatment |
Dimension D (Φmm) |
84 (Effective Size) |
Dimension W |
134 mm (Effective Size) |
Outer Dimension d (mm) |
100 |
Outer Dimension W (mm) |
150 |
Outer Dimension H (mm) |
100 |
Dimension H (Φmm) |
95.5 (Effective Size) |
Allowable Load (kg) |
3 |
Cover Material |
Aluminum Plate A1100P T1.5 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Terminal Fitting Type |
Din Rail (35 Mm) |
