Ships within 19 days
View
View
View
View
| Type | D type |
| Series | LC Series |

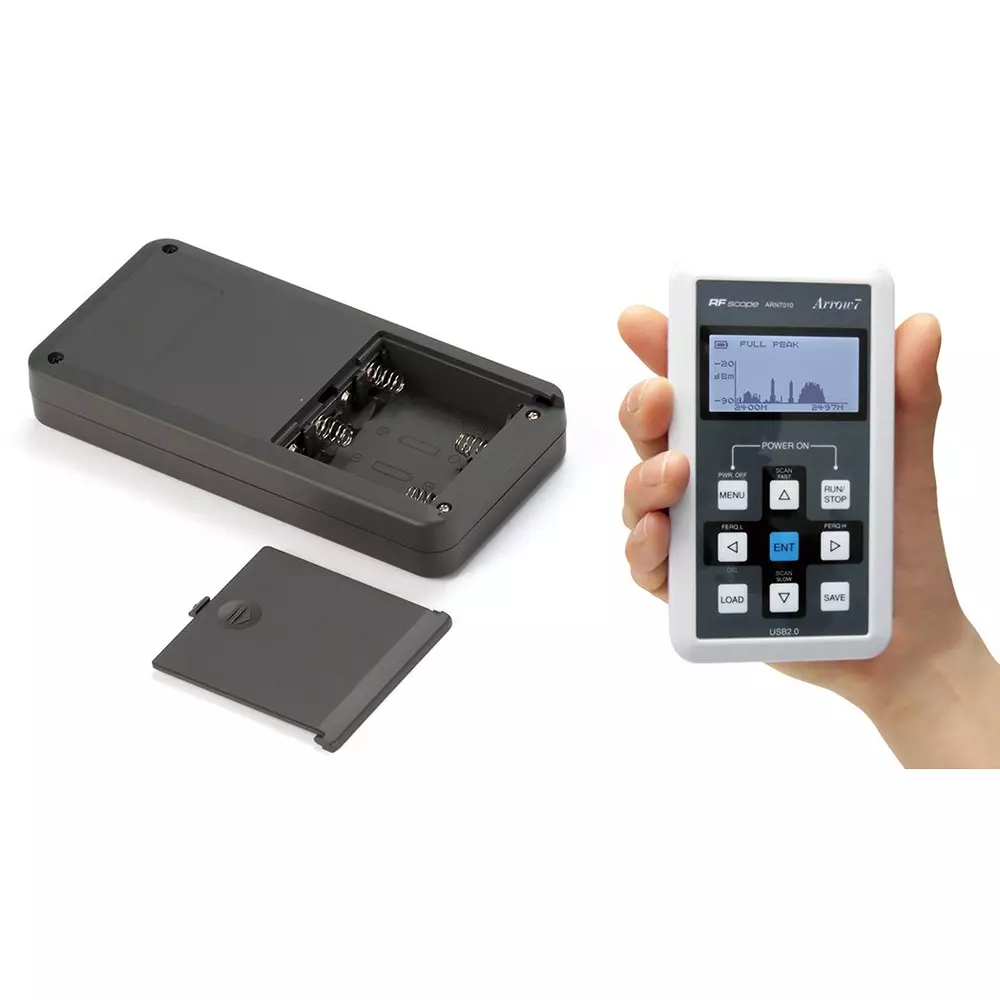

| Features | This Hand-Type Case Has A Tapered, Sharp Design And Can Be Used For A Variety Of Handheld Devices, Including Measuring Instruments, Inspection Equipment, Communication Devices, And Medical Equipment. |
| Model No | LC135-M3-D |
Type |
D type |
Series |
LC Series |
Features |
This Hand-Type Case Has A Tapered, Sharp Design And Can Be Used For A Variety Of Handheld Devices, Including Measuring Instruments, Inspection Equipment, Communication Devices, And Medical Equipment. |
Model No |
LC135-M3-D |
Material |

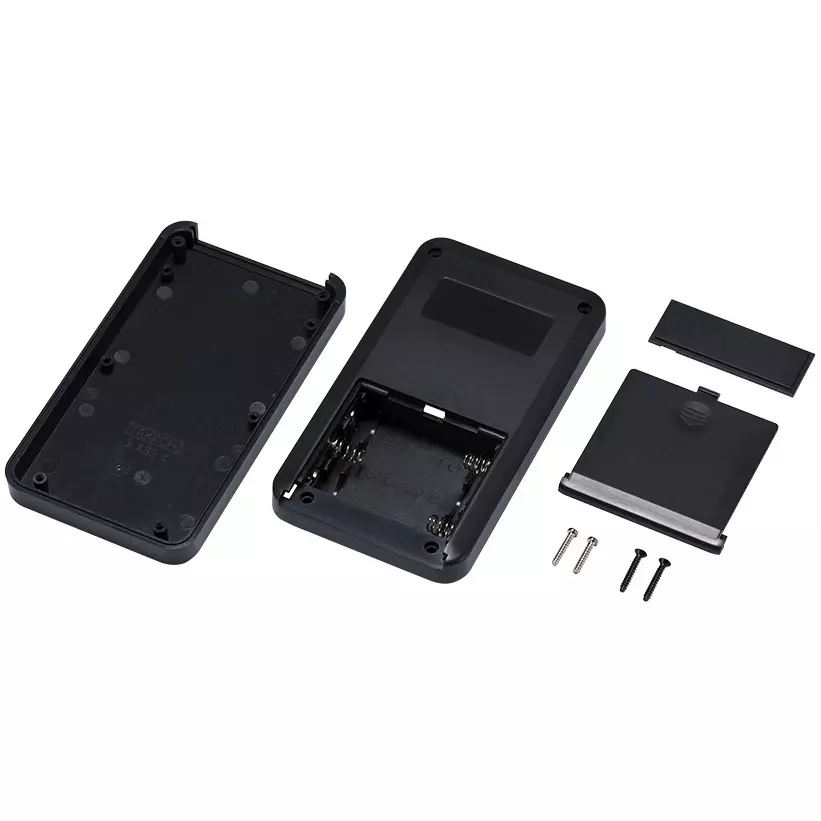

Mounting Screws (Tapping M2.6): Iron, Battery Cover: Flame-Retardant Abs Resin (Ul94V-0 Main Component), Battery Terminals: Brass, Battery Snaps: Brass And Pvc |
Type of Product |
Hand Type Plastic Case |
Color |
Dark gray |
Country of Origin |
China |
Operating Temperature Range |
-10 to +60℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
113.5 |
Cover Color |
Off-White/Dark Gray (Top/Bottom) |
Import Country |
Direct Import from Japan |
Monotaro ID |
88206291 |
Surface Treatment |
[Top And Bottom Covers/Panel/Battery Cover] Textured, [Mounting Screws] Nickel-Plated And Trivalent Black Chromate, [Battery Terminals/Battery Snaps] Nickel-Plated |
Outer Dimension d (mm) |
135 |
Outer Dimension W (mm) |
76 |
Outer Dimension H (mm) |
27 |
Flame Retardance |
Flame Retardant |
Cover Material |
(Top And Bottom) Flame-Retardant Abs Resin (Ul94V-0 Main Component) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Mounting Screw |
Included: 2 Round Plates M2.6x18 / 2 Pans M2.6x14 |
Effective dimension (width) (mm) |
68.2 (Internal) |
Effective dimension (depth) (mm) |
59.2 (Internal) |
Effective Dimension (height) (mm) |
16 (Internal) |
Panel Color |
Off-White/Dark Gray |
Structure |
AAx3 |
