| Type | G type |
| Series | SPCM Series |
| Model No | SPCM181810G |
| Material | [Top Cover] Polycarbonate (Ul94V-2), [Body] Glass Fiber Reinforced Polycarbonate (Ul94V-0), [Gasket] Polyurethane, [Cover Screw] Polyamide |
Type |
G type |
Series |
SPCM Series |
Model No |
SPCM181810G |
Material |
[Top Cover] Polycarbonate (Ul94V-2), [Body] Glass Fiber Reinforced Polycarbonate (Ul94V-0), [Gasket] Polyurethane, [Cover Screw] Polyamide |
Type of Product |

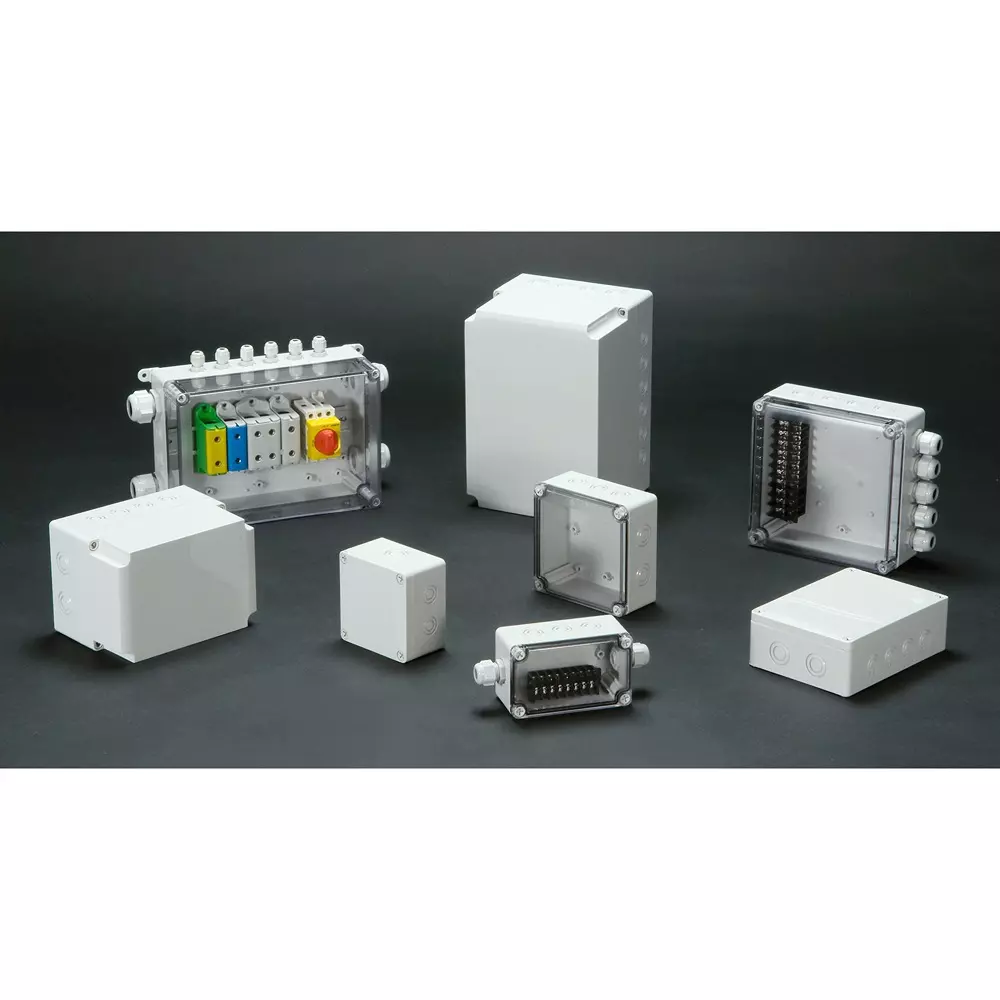

Waterproof Box with Knockout |
Color |
[Top Cover, Body, Cover Screw] White Gray, [Gasket] Black |
Country of Origin |
Japan |
Protection Class |
IP66/67 |
Body Material |
Glass Fiber Reinforced Polycarbonate (Ul94V-0) |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Body Color |
White gray |
Specifications |
(Latch / Hinge mounting) x |
Cover Color |
Top: White Grey |
Import Country |
Direct Import from Japan |
Monotaro ID |
88225672 |
Surface Treatment |
Mounting Base Screws (Tapping Screws): Nickel Plated |
Tightening Torque (Nm) |
Cover: 1 to 1.5 |
Set Contents |

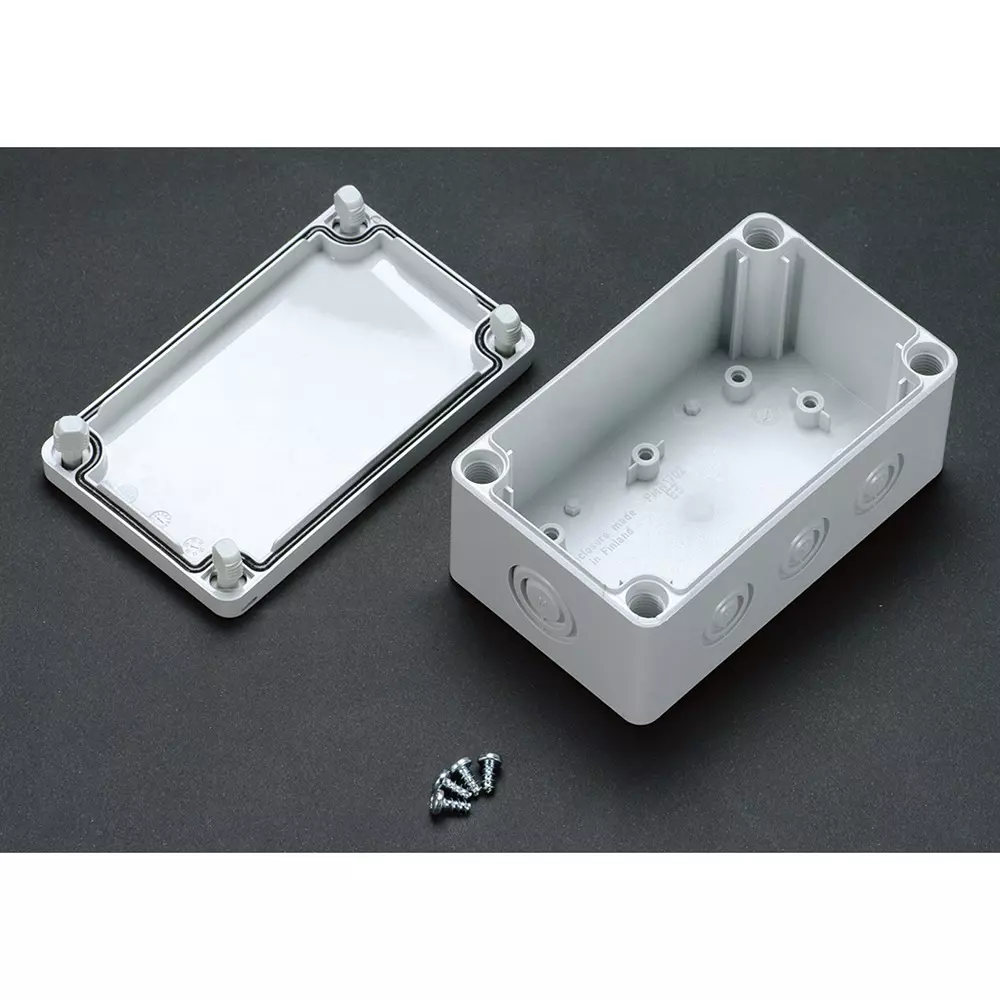

Top Coverx1, Bodyx1, Gasketx1, Cover Screwx4, Mounting Base Screwx4 |
Outer Dimension a (mm) |
50 |
Material (Gasket) |
Polyurethane |
Dimension B (Φmm) |
85.5 |
Dimension A (Φmm) |
50 |
Outer Dimension d (mm) |
175 |
Outer Dimension W (mm) |
175 |
Outer Dimension H (mm) |
100 |
Cover Material |
Polycarbonate (Ul94V-2) |
Temperature Range (℃) |
-20 to +75 |
