Ships within 19 days
View
View
View
View
| Type | G type |
| Series | SPCP Series |
| Model No | SPCP131805G |
| Material | [Top Cover] Polycarbonate (Ul94V-2), [Body] Glass Fiber Reinforced Polycarbonate (Ul94V-0), [Gasket] Polyurethane, [Cover Screw] Polyamide, [Mounting Base Screw (Tapping Screw)] Iron |
Type |
G type |
Series |
SPCP Series |
Model No |
SPCP131805G |
Material |
[Top Cover] Polycarbonate (Ul94V-2), [Body] Glass Fiber Reinforced Polycarbonate (Ul94V-0), [Gasket] Polyurethane, [Cover Screw] Polyamide, [Mounting Base Screw (Tapping Screw)] Iron |

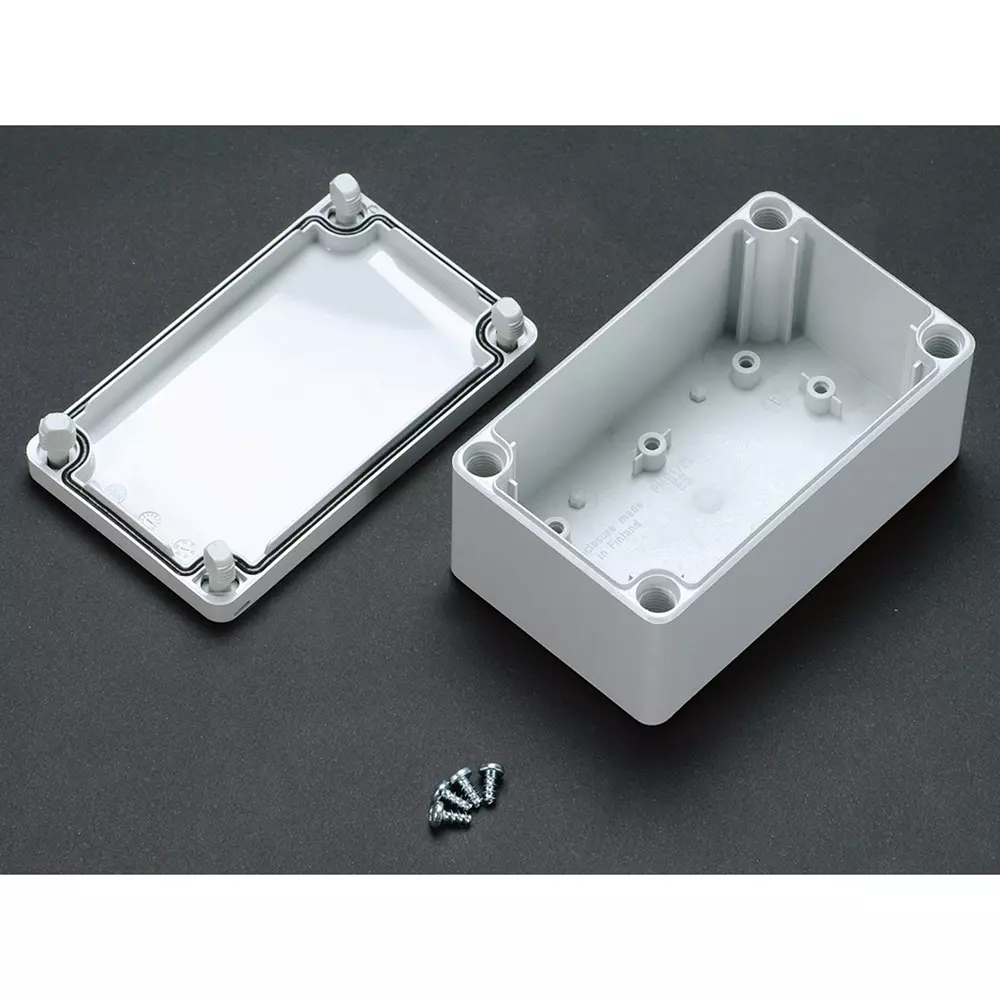

Type of Product |
Polycarbonate Box |
Color |
[Top Cover, Body, Cover Screw] White Gray, [Gasket] Black |
Country of Origin |
Japan |
Protection Class |
IP66/67 |
Mounting |
Latch And Hinge Mounting x |
Body Material |
Glass Fiber Reinforced Polycarbonate (Ul94V-0) |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Body Color |
White gray |
Cover Color |
Top: White Grey |
Import Country |
Direct Import from Japan |
Monotaro ID |
88226092 |
Surface Treatment |
Mounting Base Screws (Tapping Screws): Nickel Plated |
Dimension C (Φmm) |
24 |
Tightening Torque (Nm) |
Cover: 1 to 1.5 |
Material (Gasket) |
Polyurethane |
Dimension B (Φmm) |
35.5 |
Dimension A (Φmm) |
25 |
Outer Dimension d (mm) |
175 |
Outer Dimension W (mm) |
125 |
Outer Dimension H (mm) |
50 |
Cover Material |
Flame-Retardant Abs Resin (Ul94V-0 Main Component) |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Temperature Range (℃) |
-20 to +75 |
