| Type | Heat Control Products |
| Series | HYR Series |
| Model No | HYR88-43-23BB |
| Material | Heatsink Side Panels: Aluminum Extrusion A6063S-T5, Top And Bottom Panels: Aluminum Plate A1050P T2.0 |
Type |
Heat Control Products |
Series |
HYR Series |
Model No |
HYR88-43-23BB |
Material |
Heatsink Side Panels: Aluminum Extrusion A6063S-T5, Top And Bottom Panels: Aluminum Plate A1050P T2.0 |
Type of Product |

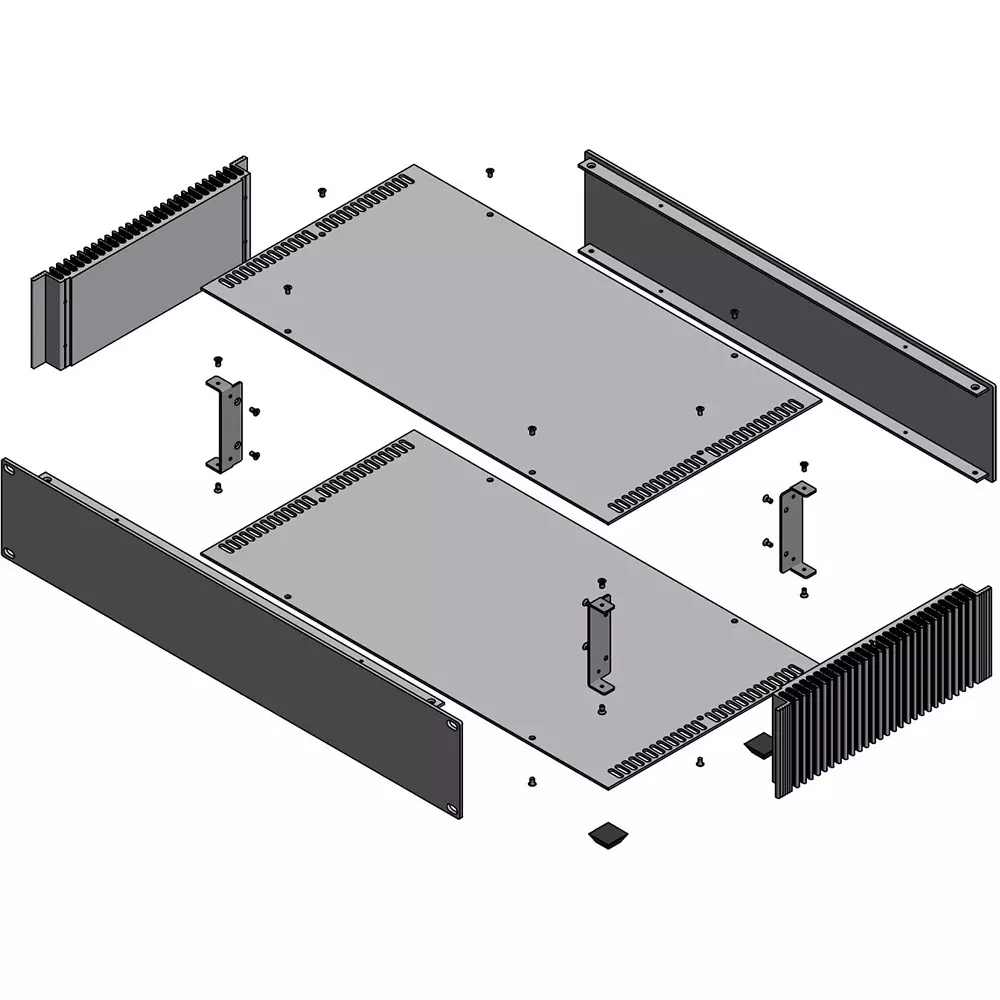

Vertical Heat Sink Type Rack Case |
Color |
Black |
Country of Origin |
Japan |
Standard |
EIA |
Weight (Kg) |
2.8 |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Panel Material |
Front/Rear: Aluminum Extrusion A6063S-T5 |
Screw Type |
Yes (Flat M3x6 Trivalent Black Chromatex16, Cross Recessed Trapezoidal Screw M3x5 Trivalent Black Chromatex12) |
Import Country |
Direct Import from Japan |
Monotaro ID |
88341897 |
Surface Treatment |
Heatsink Side Panels: Black Anodized Aluminum, Front Panel/Rear Panel/Top And Bottom Panels: Hairline-Finished Black Anodized Aluminum, Fixing Brackets: Trivalent Chromate |
Dimension D (Φmm) |
231 |
Dimension W |
482.6 mm |
Dimension H (Φmm) |
88 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Material (Rubber Feet) |
Polyurethane |
Material (fixing bracket) |
Steel Plate Spcc T1.6 |
Rubber Foot |
Black |
