| Type | G type |
| Features | Waterproof And Dustproof, Openable |
| Model No | BCAP203013GN |
| Material | Mounting Base Screws: Iron |
Type |
G type |
Features |
Waterproof And Dustproof, Openable |
Model No |
BCAP203013GN |
Material |
Mounting Base Screws: Iron |

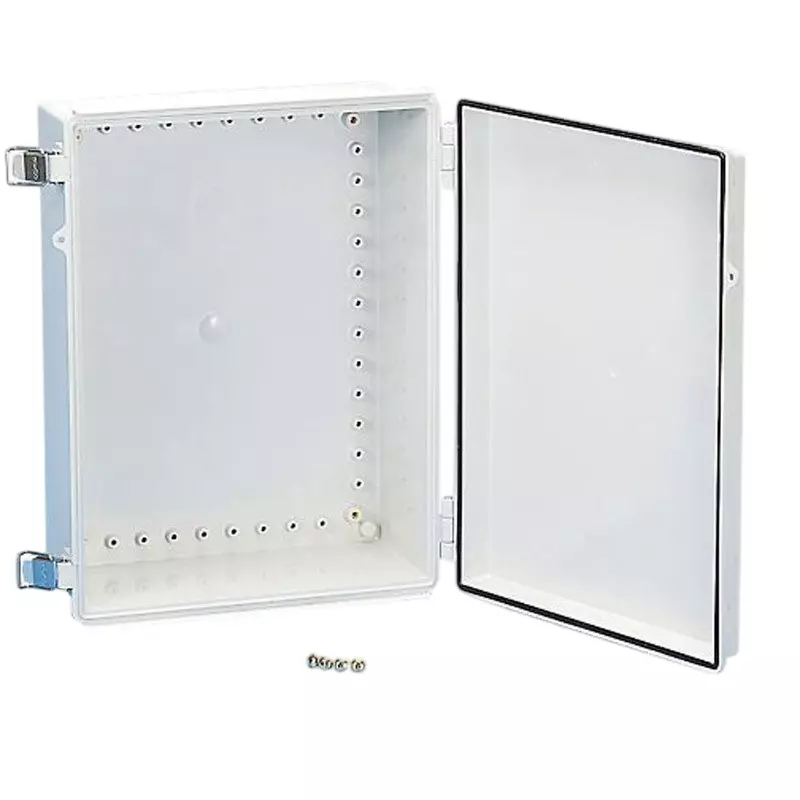

Type of Product |
Open/Close Plastic Box |
Color |
Gasket: Black |
Country of Origin |
South Korea |
Protection Class |
IP65 |
Part No |
3-983-72 |
Body Material |
ABS resin |
Operating Temperature Range |
-10 to 60℃ |
Name of Manufacturer/Packer/Importer |
Takachi Electric Industrial Co., Ltd. |
Weight (g) |
921 |
Body Color |
White gray |
Specifications |
Nut: Yes |
Cover Color |
White gray |
Import Country |
Direct Import from Japan |
Monotaro ID |
61485009 |
Surface Treatment |
Latch: Untreated, Mounting Base Screws: Trivalent Chromate |
Dimension D (Φmm) |
300 |
Dimension C (Φmm) |
252 (Bottom Mounting Hole) |
Dimension W |
200 mm |
Material (Gasket) |
Polyurethane |
Dimension A (Φmm) |
152 (Bottom Mounting Hole) |
Dimension H (Φmm) |
130 |
Flame Retardance |
UL94HB |
