| Type | S type |
| Model No | BOXTM-401 |
| Material | Reinforced PBT, NBR & (Zinc Plated |
| Type of Product | BOXTM Series |
Type |
S type |
Model No |
BOXTM-401 |
Material |
Reinforced PBT, NBR & (Zinc Plated |
Type of Product |
BOXTM Series |
Country of Origin |
Japan |
Protection Class |
IP67 |
Rated Current (A) |
20 |
Operating Temperature Range |
-25 to 100°C |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |

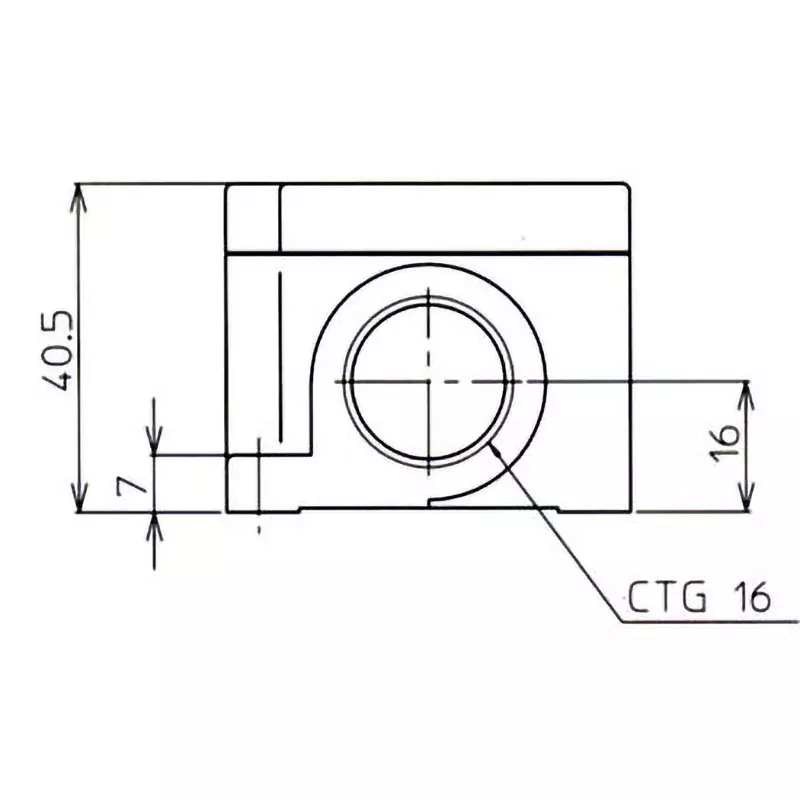

Cable Entry Hole |
CTG16 × 2 ports |
Specifications |
The box and terminal block are integrated, improving work efficiency. The built-in terminal block type is available in a variety of pole numbers, and can be selected from same pole on top and bottom or independent types depending on the application. Ideal for storing devices such as sensor amplifiers. The resin used is reinforced PBT, which has excellent oil and chemical resistance. A wide variety of hole types and lid types are available for wide use. |
Mass (g) |
About 97 |
Import Country |
Direct Import from Japan |
Monotaro ID |
35194914 |
Rated Voltage (V) |
AC/DC600 |
Insulation_Resistance (MΩ) |
100 (at DC500V mega) |

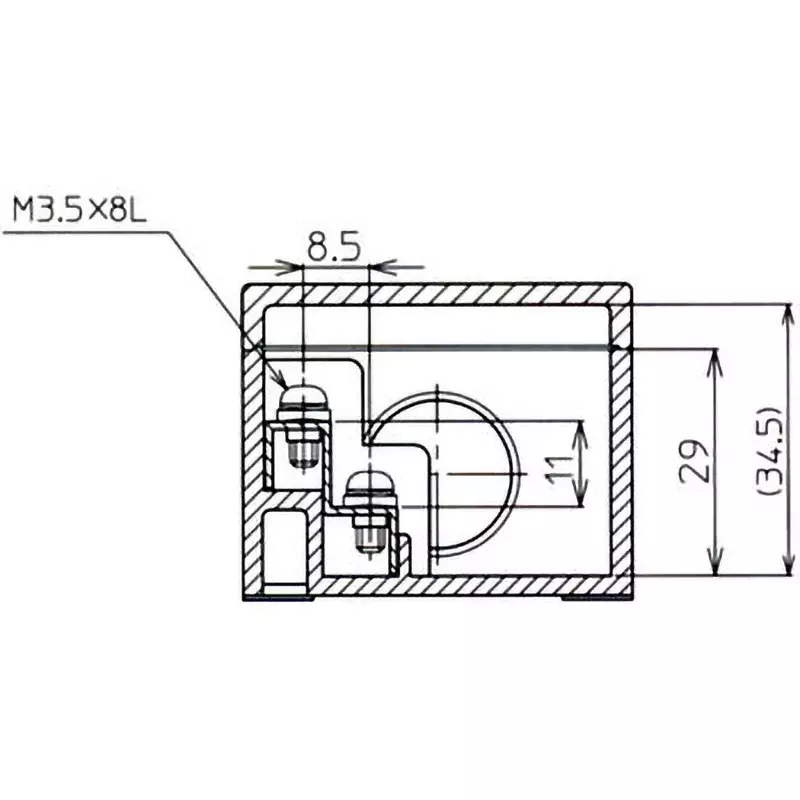

Terminal Screw |
M3.5×8L |
Compatible Cable |
(Maximum) 2 |
Tightening Torque (Nm) |
0.8 to 1.4 (terminal screw) |
Trusco Part No. |
391-8513 |
Flame Retardance |
UL94V-0 |
Terminal Block |
4P |

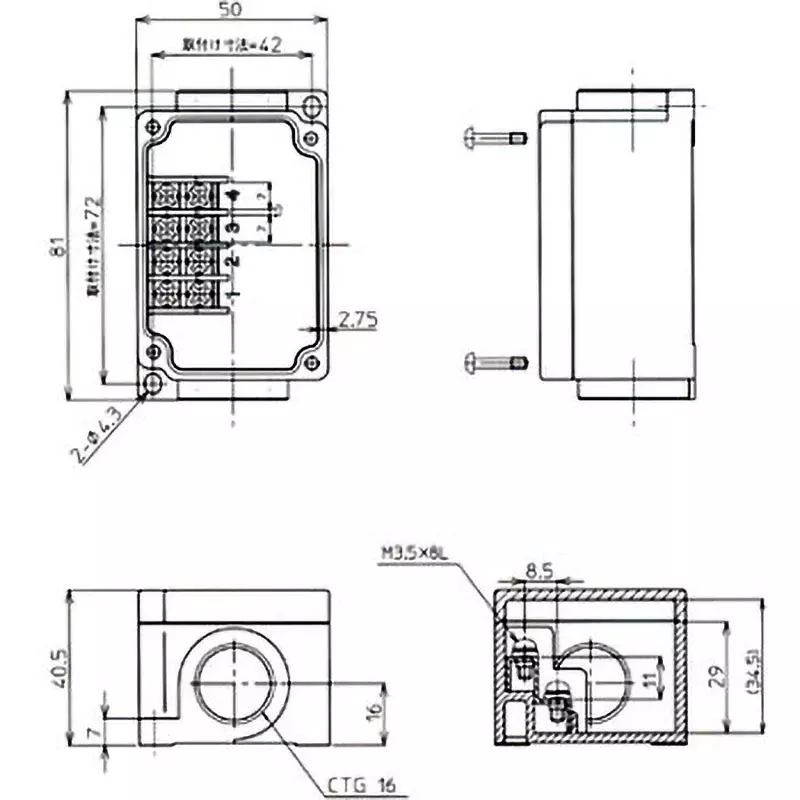

Outer Dimensions, Width W x Height H x Depth D (mm) |
81×50×40.5 |
Terminal Material |
Screws: Iron (Zn-plated trivalent chromate) |
Relative Humidity |
45% to 85% |
