| Model No | BOXTC-6 |
| Material | Nylon 6 & PBT with Glass |
| Type of Product | BOX TC Series |
| Color | 5Y7/1 |
Model No |
BOXTC-6 |
Material |
Nylon 6 & PBT with Glass |
Type of Product |
BOX TC Series |
Color |
5Y7/1 |
Country of Origin |
Japan |
Protection Class |
IP65(IEC529) |
Rated Current (A) |
15 |
Operating Temperature Range |
-25 to 60°C |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Included Components |
Two rubber sleeves (Φ5.3, Φ7.5) each (Φ7.5 already installed) |
Import Country |
Direct Import from Japan |
Monotaro ID |
35194896 |
Rated Voltage (V) |
AC/DC250 |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Terminal Screw |
M3×8L |
RoHS Directive |
Correspondence |
Compatible Cable |
(Maximum) 1.25 |
Tightening Torque (Nm) |
1.2 |
Suitable Cable Outer Dia. (Φmm) |
3.5 to 7.3 |
Withstand voltage (V / min) |
AC2000 |

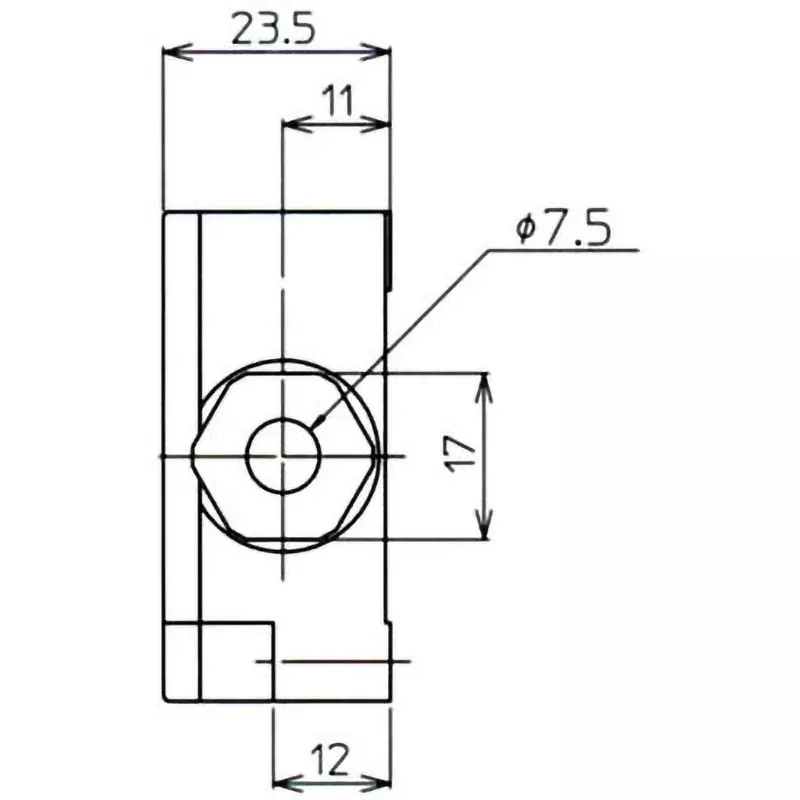

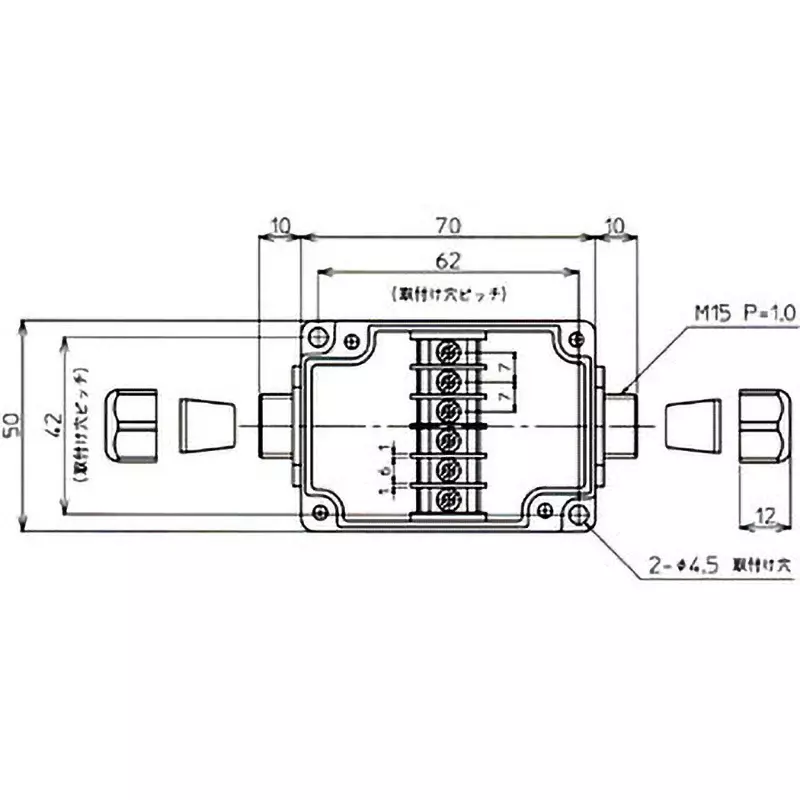

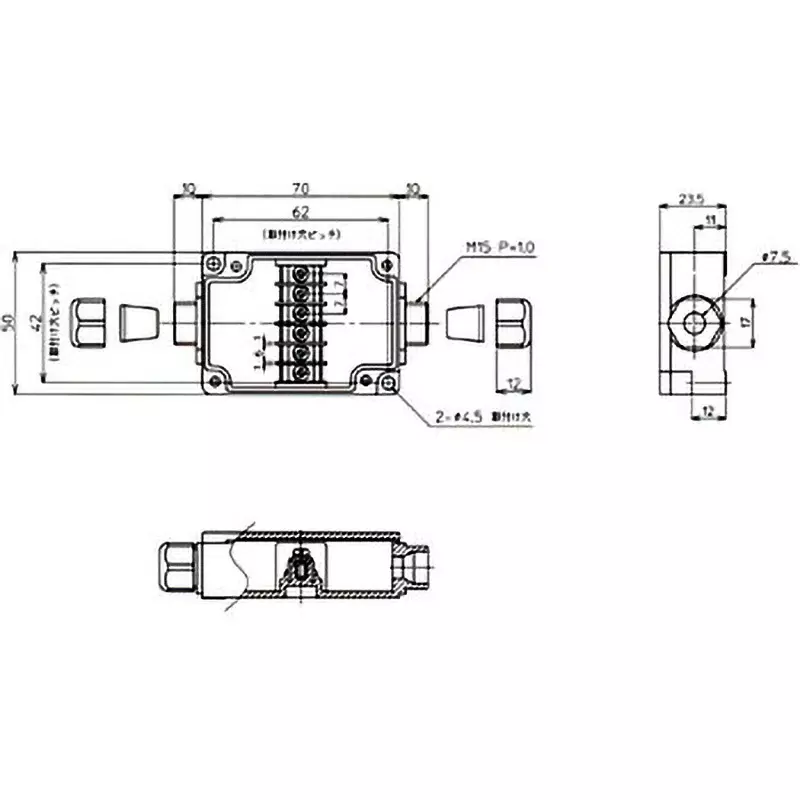

Outer Dimensions, Width W x Height H x Depth D (mm) |
90×50×23.5 |
