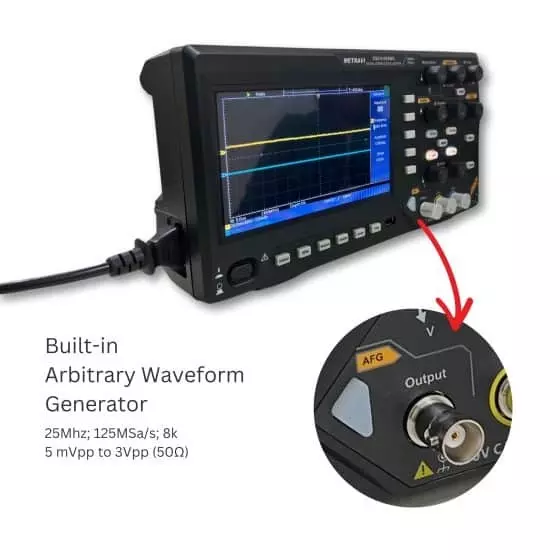

| Type of Product | Digital Storage Oscilloscope |
| Model No | DSO-6100AWG |
| Country of Origin | India |
| Resolution | 800 (Horizontal) × 480 (Vertical) pixels |
Type of Product |
Digital Storage Oscilloscope |
Model No |
DSO-6100AWG |
Country of Origin |
India |
Resolution |
800 (Horizontal) × 480 (Vertical) pixels |
Display |
7-inch (177.8 mm) TFT LCD display |
Operating Temperature |
0° to 40°C |
Storage Temperature |
-20° to 60°C |
Name of Manufacturer/Packer/Importer |
Rameshtha Enterprises |
Bandwidth |
100 MHz |
Input Impedance |
1 MΩ±2%, in parallel with 12 pF±5 pF |
Channel |
Dual Channel (2) |
Power Consumption |
< 16 W |
Mode |
Normal, Peak detect, Averaging |
Input Coupling |
DC, AC , Ground |
Fuse |
2A, T class, 250V |
Maximum Input Voltage |
400 V (DC+AC, PK - PK) |
Waveform Storage |
16 waveforms |

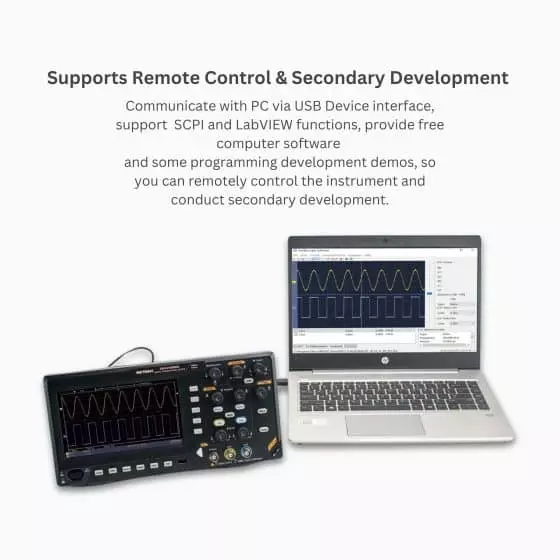

Port |
USB 2.0 |
Output Voltage |
About 5 V, with the Peak-to-Peak voltage ≥1 MΩ |
Bandwidth Limit |
20 MHz, full bandwidth |
Sample Rate |
1 GS/s |
