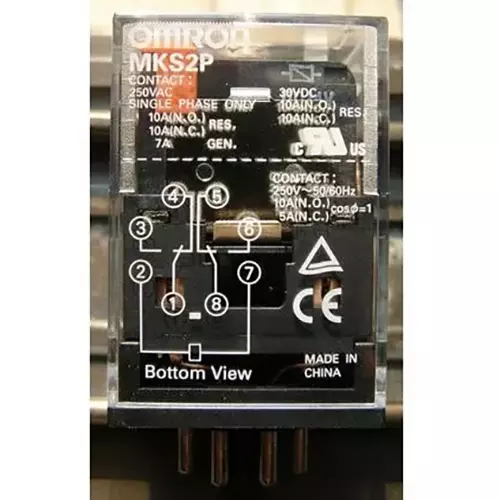

Omron Small Power Relay 2C Contact Configuration 1000 m/s² Impact Resistance, MKS2PIN

Name: Omron Small Power Relay 2C Contact Configuration 1000 m/s² Impact Resistance, MKS2PIN
Brand: Omron
SKU: IND.LAT.445823694
Price: 3657 INR
Availability: InStock

Visit the Omron Store

EMI starts at ₹325/month. No Cost EMI available.

Procurement Type

Explore 1 more variant

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Model No	MKS2PIN
Features	Power relay
Rated Current (A)	10
Contact Material	AgSnIn

More Omron Latching Relay products More Latching Relay products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

EXPLORE OTHER VARIANTS

SKU ID: EL.SW.RE.140780

Omron MKS2PIN 24 VDC Latching Relay

Procurement Type

Locally Procured from India

₹1,533

specifications

Model No	MKS2PIN
Features	Power relay
Rated Current (A)	10
Contact Material	AgSnIn
Type of Product	Small Power Relay
Mass (g)	Approximately 90
Withstand voltage (V / min)	(Between coil and Contact) AC 2500 50/60Hz, (Between opposite polarity Contacts) AC 2500 50/60Hz, (Between same polarity Contacts) AC 1000 50/60Hz
Operating Time (ms)	20 or less (when rated operating voltage is applied, excluding contact bounce, at an ambient temperature of 23°C)
Mechanical Durability	Over 5 million times (open/close frequency of 18,000 times/hour)
Resistive Load	(A Contact) AC 250 VB 10 Amp, DC 30 VB 10 Amp, (B Contact) AC 250 VB 5 Amp, DC 30 VB 5 Amp
Power Consumption (VA, W)	Approximately 1.4
Contact Mechanism	single
Maximum Contact Voltage (V)	AC 250, DC 250
Coil Resistance	430 (tolerance ±15%, coil temperature 23℃)
Rated Current (mA)	55.8
Maximum Allowable Voltage (V)	110% of rated voltage
Monotaro ID	46690567
Maximum contact current (A)	10
Inductive Load (cosΦ = 0.4, L/R=7ms)	AC 250 V 7 A
Operating Voltage	80% or less of the rated voltage
Electrical Durability	Over 100,000 cycles (rated load, switching frequency 1800 cycles/hour) (ambient temperature 23°C)
No. of Pole	2
Country of Origin	Japan
Contact Configuration	2c
Import Country	Direct Import from Japan
Terminal Shape	Plug-in terminals
Name of Manufacturer/Packer/Importer	Omron Corporation
Power Consumption	Approximately 1.4
Operating Temperature Range	-25 to 60 degrees Celsius (no condensation or freezing)
Classification	Built-in operation indicator light
Maximum Allowable Contact Current (A)	10
Rated Coil Voltage	DC24
Contact Resistance (ohm)	100 or less (calculated using the DC 5V 1A voltage drop method)
Insulation Resistance (MOhm)	Over 100 (at DC500V)
Operation Ambient Temperature (°C)	-25 to +60 degrees Celsius (but no freezing or condensation)
Maximum opening/closing Capacity	Reference values: (normally open) AC2500VA/DC300W, (normally closed) AC1250VA/DC150W
Impact Resistance (Durability) (m/s²)	1000
Ib Order code	46690567
Vibration (Malfunction) Hz	10 to 55 to 10 single amplitude 0.5 mm (double amplitude 1 mm), 10 to 55 to 10 single amplitude 0.75 mm (double amplitude 1.5 mm)
Recorder Voltage	More than 15% of the rated voltage
Contents	1 piece
Part No	MKS2PIN DC24
Indicator Light	Built-in operation indicator light
shock (malfunction) (m/s2)	100
Functionality	Latching lever type
Shock Proof	1000 m/ s²
Protective Structure	Comes in a case
Maximum switching frequency (cycles/hour) / Rated load	1800
Failure rate P level (reference value: switching frequency 30 times / min)	DC 1 V 10 mA
RoHS Directive (10 Substances Compliant)	correspondence
Ambient Humidity (% RH)	5-85
Display	Mechanical indicator
Recovery time	20 or less (when rated operating voltage is applied, excluding contact bounce, at an ambient temperature of 23°C)
Maximum opening/closing frequency (times/hour) / Mechanical	18000
Procurement Type	Direct Import from Japan
