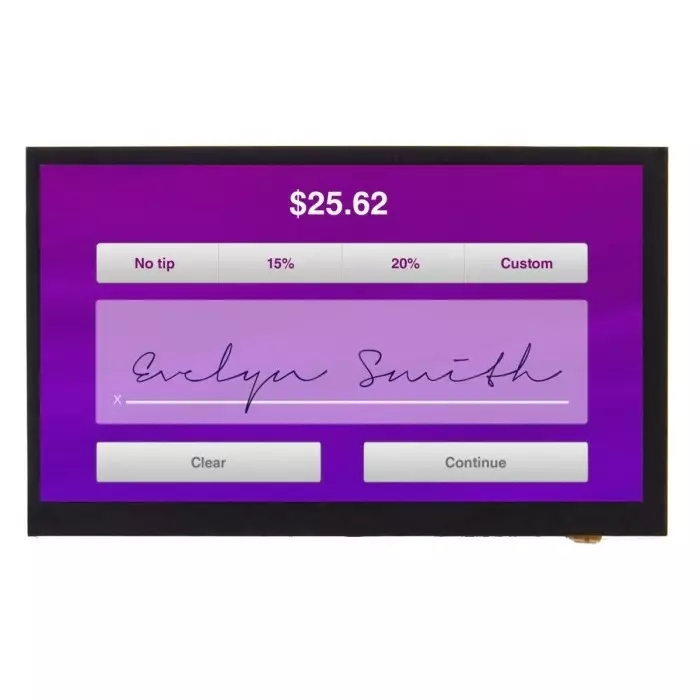

| Type of Product | LCD Colour Display |
| Country of Origin | China |
| Dimension | 164.9x100x2.8 mm |
| Brightness | 210 cd/m² |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
LCD Colour Display |
Country of Origin |
China |
Dimension |
164.9x100x2.8 mm |
Brightness |
210 cd/m² |
Response Time |
25 ms |
Contrast Ratio |
800:1 |
Operating Temperature Range |
-20-+70°C |
Display Mode |
Transmissive |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Current Rating |
45 mA |
Voltage Rating |
2.6-3.6V |
Resolution |
1024x600pixels |
Supply Voltage |
2.6-3.6 V |
Height |
100 mm |
Interface Type |
LVDS |
Depth |
2.8 mm |
Width |
164.9 mm |
Name of Manufacturer/Packer/Importer |
Displaytech |
Display Size (Inch) |
7 inch |
Manufacturer Part Number |
DT070BTFT-PTS1 |
Viewing Area Height |
85.92 mm |
No. of Colors |
16777216 |
Input Voltage (AC/DC) |
DC |
Product Code |
1359782 |
Viewing Area Width |
154.21 mm |
Screen Type |
Capacitive |
Display Matrix Technology |
TFT |
Touch Screen Controller |
Yes |
Viewing Area Dimensions |
154x86 mm |
Diagonal Display Size |
177.80 mm |
Power Supply Included |
Yes |
