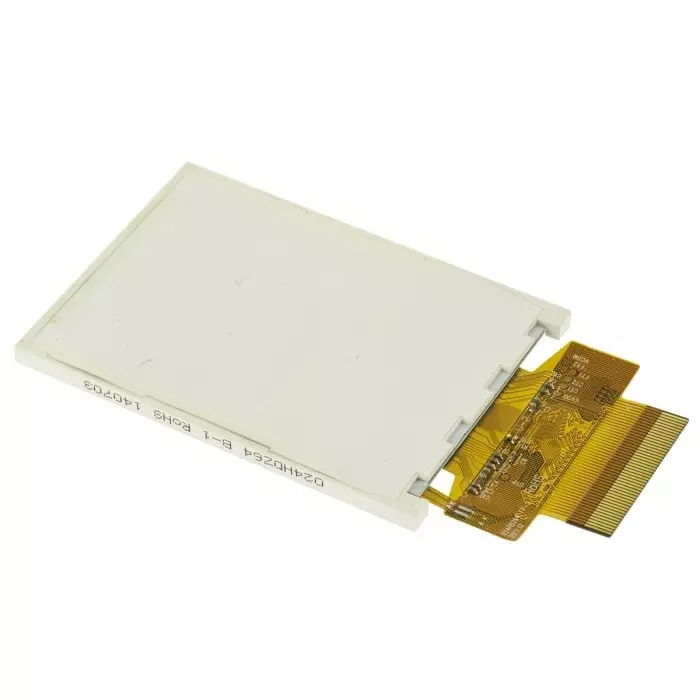

| Type of Product | LCD Colour Display |
| Backlight | LED |
| Country of Origin | China |
| Dimension | 59.46x42.72x2.8 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
LCD Colour Display |
Backlight |
LED |
Country of Origin |
China |
Dimension |
59.46x42.72x2.8 mm |
Brightness |
200 cd/m² |
Response Time |
20 ms |
Contrast Ratio |
350:1 |
Operating Temperature Range |
-20-+70°C |
Display Mode |
Transmissive |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Resolution |
240x320pixels |
Supply Voltage |
-0.3-+4.6 V DC |
Height |
59.46 mm |
Aspect Ratio |
0.16875000000000001 |
Interface Type |
Parallel, RGB |
Depth |
2.8 mm |
Width |
42.72 mm |
Name of Manufacturer/Packer/Importer |
Displaytech |
Display Size (Inch) |
2.4 inch |
Manufacturer Part Number |
DT024CTFT |
Viewing Area Height |
36.72 mm |
No. of Colors |
262144 |
Input Voltage (AC/DC) |
DC |
Product Code |
7812998 |
Viewing Area Width |
48.96 mm |
Screen Type |
None |
Display Matrix Technology |
TFT |
Touch Screen Controller |
No |
Viewing Area Dimensions |
37x49 mm |
Diagonal Display Size |
60.96 mm |
Graphics Array Type |
QVGA |
