| Type of Product | Display Unit |

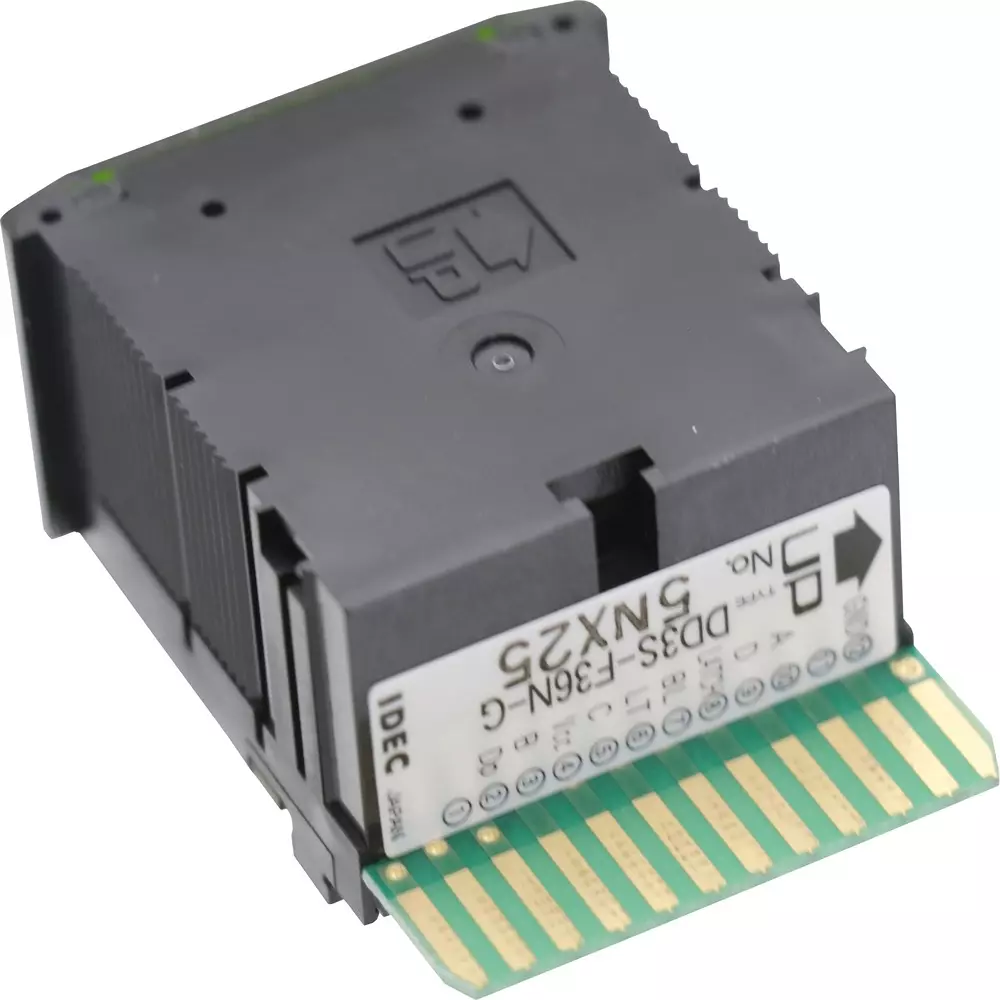

| Model No | DD3S-F36N-G |
| Type | Standard |
| Monotaro ID | 6196374 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Display Unit |
Model No |
DD3S-F36N-G |
Type |
Standard |
Monotaro ID |
6196374 |
Country of Origin |
Japan |
Storage Temperature |
-25-80 (no icing) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
LED Color |
Green |
Protection Class |
IP40(IEC 60529) |
Input Logic |
Negative logic |
Number of Digit |
Up to 8 digits can be combined arbitrarily |
Specifications |
Data input (V): L: 0 to 2, H: 9 to 30Display characters: 7-segment, green, display: 0 to 9, A to F, decimal pointUnit combination: Fit-in typePanel mounting method: Snap-on |
Noise Resistance |
Power supply terminal (normal/common mode): ±1000V, input terminal (normal/common mode): ±1000V, output terminal (normal/common mode): ±500V (impulse conditions: pulse width 100ns, 1μs) |
Operation Ambient Temperature (°C) |
-10 to 55 (no icing) |
Shock Resistance (m/s²) |
Durability: 490 |
Inrush current (A) |
Approx. 0.3 (power supply voltage 24V) |
Current Consumption (mA) |
40 or less |
Operating Ambient Humidity (% RH) |
35 to 85 (with no condensation) |
Mass (g) |
Display unit: (approx.) 16, End plate: (approx.) 4.5 (1 set for left and right) |
Vibration Resistance |
Durability: Frequency 10-55Hz, single amplitude 0.25mm |
Withstand voltage (V / min) |
DC1500 between live parts and non-live parts |
Operating Voltage Range (V) |
DC12 - 24±10% |
