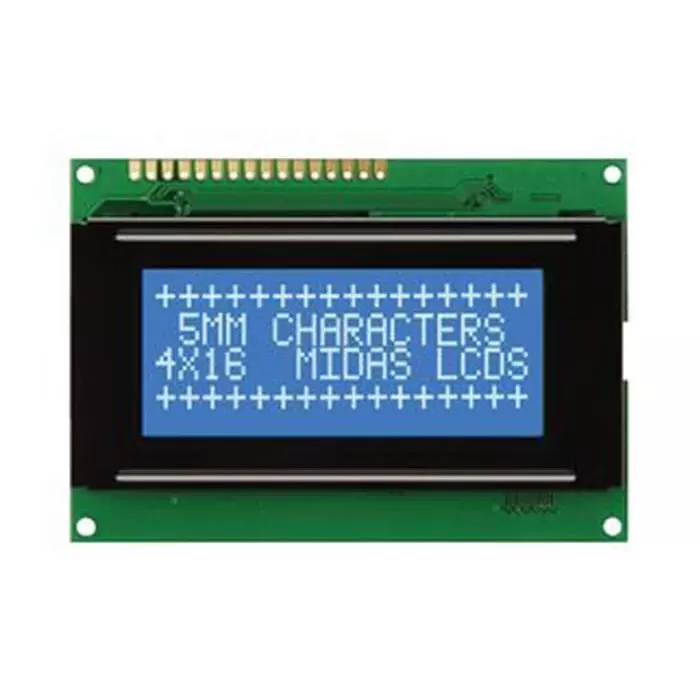

| Type of Product | Alphanumeric LCD Display |
| Backlight | LED |
| Country of Origin | China |
| Display Type | Alphanumeric |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Alphanumeric LCD Display |
Backlight |
LED |
Country of Origin |
China |
Display Type |
Alphanumeric |
Character Height |
4.8 mm |
External Dimension |
87x14x60 mm |
Operating Temperature Range |
-20 to +70°C |
Display Mode |
Transmissive |
Maximum Operating Temperature |
+70°C |
Series |
A |
Minimum Operating Temperature |
-20°C |
Current Rating |
1.5 mA |
Voltage Rating |
4.7 to 5.5 V |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Manufacturer Part Number |
MC41605A6W-BNMLW-V2 |
Viewing Area Height |
25.2 mm |
Viewing Area Width |
61.8 mm |
Display Matrix Technology |
STN |
Viewing Area Dimensions |
62x25 mm |
External Depth |
14 mm |
External Height |
60 mm |
Background Color |
White |
Illumination Color |
Blue |
External Width |
87 mm |
Character Matrix |
4 Rows x 16 Characters |
Character Rows |
4 |
Character Width |
3 mm |
Characters Per Row |
16 |
Driver Mounting |
COB |
