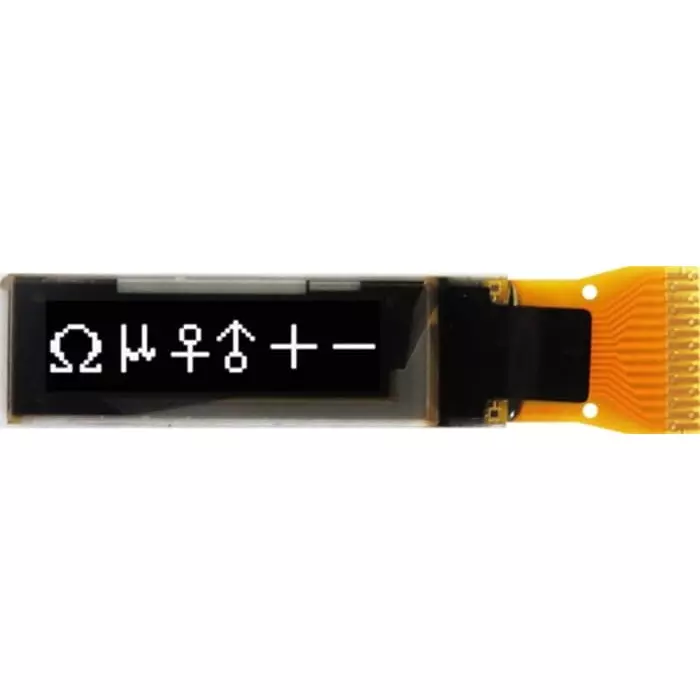

| Type of Product | Passive Matrix OLED Display |
| Country of Origin | Taiwan, Province Of China |
| Dimension | 26.3x8x1.3 mm |
| Display Color | White |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Passive Matrix OLED Display |
Country of Origin |
Taiwan, Province Of China |
Dimension |
26.3x8x1.3 mm |
Display Color |
White |
Contrast Ratio |
>10000:1 |
Operating Temperature Range |
-40 to +70°C |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-40°C |
Resolution |
96x16 Pixels |
Height |
8 mm |
Depth |
1.3 mm |
Width |
26.3 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Manufacturer Part Number |
MCOT096016AY-WI |
Forward voltage (V) |
3.3 V DC |
Screen Size |
1.75 cm (0.69 inch) |
Viewing Area Height |
5.18 mm |
Viewing Area Width |
19.71 mm |
Viewing Area Dimensions |
19.71x5.18 mm |
Driver Mounting |
TAB |
Interface Port(s) |
I2C |
Matrix Type |
Passive |
