Ships within 120 days
View
View
View
View

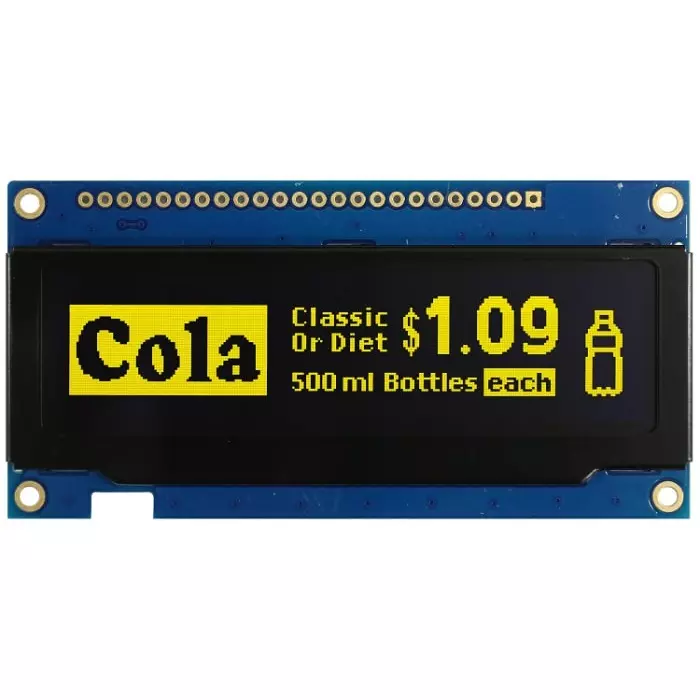

| Type of Product | Passive Matrix OLED Display |
| Country of Origin | Taiwan |
| Dimension | 89.2x44x3.3 mm |
| Display Color | Yellow |
Type of Product |
Passive Matrix OLED Display |
Country of Origin |
Taiwan |
Dimension |
89.2x44x3.3 mm |
Display Color |
Yellow |
Contrast Ratio |
10000:1 |
Operating Temperature Range |
-40 to +80°C |
Maximum Operating Temperature |
+80°C |
Minimum Operating Temperature |
-40°C |
Resolution |
256x64 Pixels |
Height |
3.3 mm |
Aspect Ratio |
76.78:19.18 |
Depth |
3.3 mm |
Width |
89.2 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Manufacturer Part Number |
MDOB256064B1V-YM |
Forward voltage (V) |
3.3 V DC |
Screen Size |
7.92 cm (3.12 inch) |
Viewing Area Height |
22.18 mm |
Viewing Area Width |
79.78 mm |
Viewing Area Dimensions |
79.78x22.18 mm |
Driver Mounting |
COB |
Interface Port(s) |
Parallel, SPI |
Matrix Type |
Passive |
