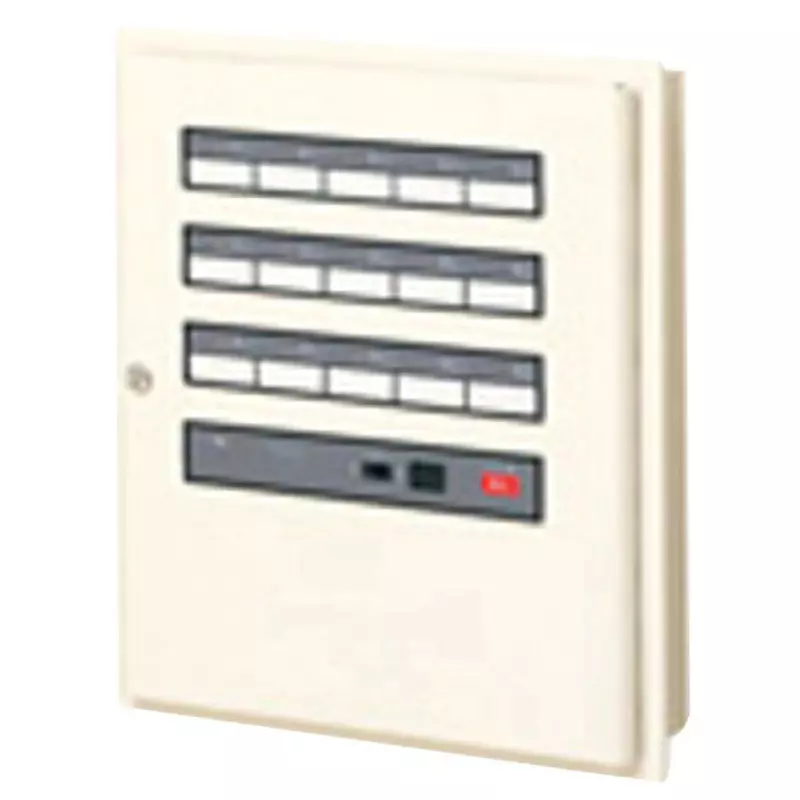

| Type of Product | Alarm Display |
| Model No | BRN1155 |
| Type | Exposure type |
| Material | Made Of Steel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Alarm Display |
Model No |
BRN1155 |
Type |
Exposure type |
Material |
Made Of Steel |
Monotaro ID |
38216385 |

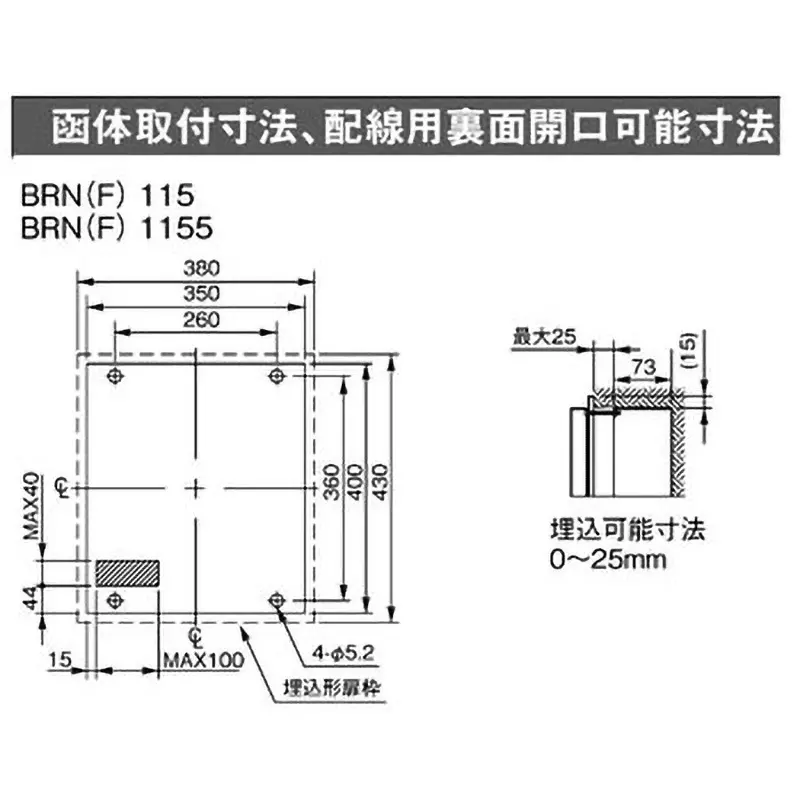

Cabinet dimensions (width x length x depth) (mm) |
350x400x105 |
Circuits |
15 window alarm |
Output |
[Batch alarm output] Non-voltage c contact AC250V 0.5A (resistive load) AC250V 0.2V (cosΦ=0.4) (inductive load) Interlocking with input signal/buzzer sounding (selectable by SW) [Individual alarm output] Non-voltage a /b contact (selected by SW) AC250V 0.5A (resistive load) |
Mass (Kg) |
7.7 |
Input / Output terminal |
Screw Terminal |
Wiring Length |
Signal input: 200 (Φ0.65 to Φ1.6) |
Power Consumption (VA) |
12 |
Sound Pressure Level (dB) |
75 (1m forward) |
Input |
(Alarm) No-Voltage A Contact |
Other functions |
Lamp Check Function Self-Hold Setting Function (Per Circuit) Status Display Function (Every 5 Circuits) Buzzer Sound/No Sound Switching Function |
Power Supply Voltage |
AC 100/200 V (50/60 Hz) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Specifications |
No-Voltage Input + Individual Transfer Output + Batch Transfer Output |
Thread Size |
(Terminal) Power / Signal Input Section M3.5 |
Power Outage Compensation Time |
10 minutes when all circuits are input 30 minutes when 5 circuits are input |
Timer Function |
Buzzer: Linked call or 1, 3, 5 minutes (selectable with SW) |
