| Type of Product | Alarm Display |
| Model No | BRN102S |
| Type | Exposure type |
| Material | Made Of Resin |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Alarm Display |
Model No |
BRN102S |
Type |
Exposure type |
Material |
Made Of Resin |
Monotaro ID |
38216507 |

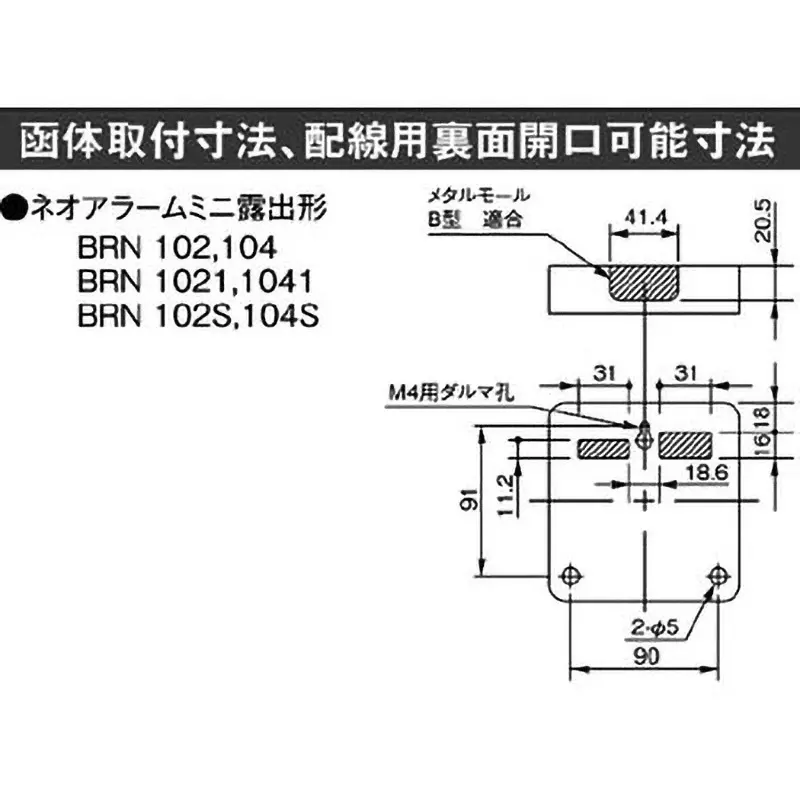

Cabinet dimensions (width x length x depth) (mm) |
116x120x43 |
Circuits |
2-Window Alarm |
Output |
[Batch transfer output] Non-voltage c contact AC250V 0.5A (resistive load) AC250V 0.2V (cosΦ = 0.4) (inductive load) Input signal / buzzer ringing interlocking (selection by SW) |
Mass (Kg) |
0.5 |
Input / Output terminal |
Quick Connection Terminal |
Wiring Length |
Signal input section: 200 (Φ0.65 to Φ1.6) Power supply output section: 50 (Φ0.65 to Φ1.6) |
Power Consumption (VA) |
3.2 |
Sound Pressure Level (dB) |
70 (1m forward) |
Applicable Wire Diameter (Φmm) |
Power / signal input unit Single core dedicated Φ0.65 to 1.6 (Recommended Φ0.9) |
Input |
(Alarm) No-Voltage A Contact |
Other functions |
Lamp Check Function Self-Holding Setting Function (For Each Circuit) Buzzer Sound/Non-Sound Switching Function Equipped With A High-Intensity Collective Display Lamp |
Power Supply Voltage |
AC 100/200 V (50/60 Hz) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Specifications |
No-Voltage Input + Batch Transfer Output + Sensor Power Supply Output |
Output Voltage (V) |
(For Sensor) Dc12 |
Output Current (mA) |
(For Sensor) 30 |
