| Type of Product | Alarm Display |
| Model No | BRN125 |
| Type | Alarm panel |
| Shape | Exposure type |
Type of Product |
Alarm Display |
Model No |
BRN125 |
Type |
Alarm panel |
Shape |
Exposure type |
Material |
Made Of Steel |
Monotaro ID |
38216333 |
Circuits |
25 window alarm |
Output |
[Batch transfer output] No-voltage c contact / 250V AC 0.5A (resistive load) / 250V AC 0.2V (cosΦ = 0.4) (inductive load) / Input signal / Buzzer sound interlock (selection by SW) / Minimum applicable load 5 V DC 1mA |
Mass (Kg) |
9.1999999999999993 |
Wiring Length |
Signal input: 200 (Φ0.65 to Φ1.6) |
Power Consumption (VA) |
12.5 |
Sound Pressure Level (dB) |
75 (1m forward) |
Input |
(Alarm) No-Voltage A Contact |
Other functions |
Lamp Check Function / Self-Hold Setting Function (For Each Circuit) / Status Display Function (For Every 5 Circuits) / Buzzer Sound / No Sound Switching Function |
Power Supply Voltage |
AC 100/200 V (50/60 Hz) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Specifications |
No-Voltage Input + Batch Transfer Output |
Thread Size |
(Terminal) Power / Signal Input Section M3.5 |
Power Outage Compensation Time |
10 minutes when all circuits are input 30 minutes when 5 circuits are input |

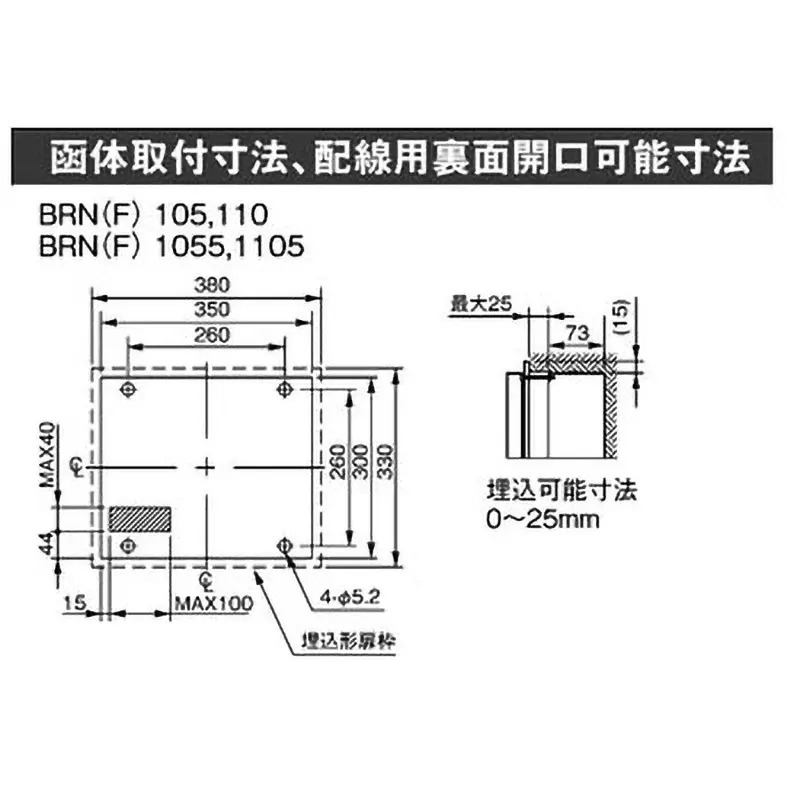

Width (mm) |
350 |
Height (mm) |
500 |
Timer Function |
Buzzer: Linked call or 1, 3, 5 minutes (selectable with SW) |
Depth (mm) |
105 |
Input/Output |
Screw Terminal |
