| Rated Power | 42 W |
| Efficiency (%) | 0.91 |
| Application | LED Indoor Lighting, LED Office Lighting, LED Commercial Lighting, LED Panel Lighting, Industrial Lighting |
| Series | LCM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Rated Power |
42 W |
Efficiency (%) |
0.91 |
Application |
LED Indoor Lighting, LED Office Lighting, LED Commercial Lighting, LED Panel Lighting, Industrial Lighting |
Series |
LCM |
Type of Product |

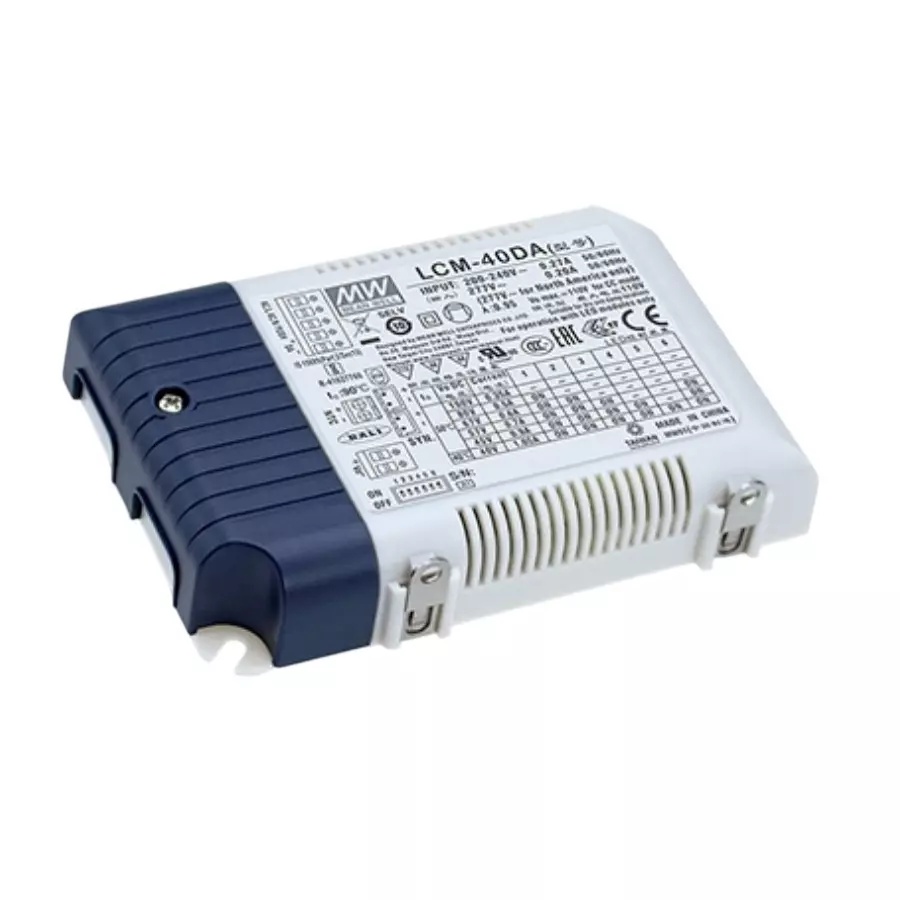

Multiple-Stage Constant Current Mode LED Driver |
Total Harmonic Distortion |
THD< 20%(@load≧75%) |
Model No |
LCM-40DA2 |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
ITMS Powertech Private Limited |
Storage Humidity |
10 ~ 95% RH |
Protection |
Short Circuit, Over Load, Over Voltage, Over Temperature |
Frequency Range |
47-63 Hz |
Working Humidity |
20 ~ 90% RH non-condensing |
Leakage Current |
<0.5 mA / 240 VAC |
Storage Temperature |
-40 to +80°C |
Open Circuit Voltage |
65 V |
Current Tolerated |
±5% |
Current Ripple |
5% Max. (@Rated Current) |
Standby Power Consumption |
<0.5 W for Blank-Type, <1.2 W for AUX-Type |
