| Rated Power | 312 W |
| Efficiency (%) | 0.92500000000000004 |
| Application | Street Lighting, Floodlight Lighting, Stage Lighting, Horticulture Lighting, Bay Lighting, Fishing Lighting |
| Series | XLG |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Rated Power |
312 W |
Efficiency (%) |
0.92500000000000004 |
Application |
Street Lighting, Floodlight Lighting, Stage Lighting, Horticulture Lighting, Bay Lighting, Fishing Lighting |
Series |
XLG |
Type of Product |
Constant Power Mode LED Driver |
Total Harmonic Distortion |
THD< 10% @ load≧50% at 115 VAC/230 VAC ,THD< 15% @load≧75% at 277 VAC |
Model No |

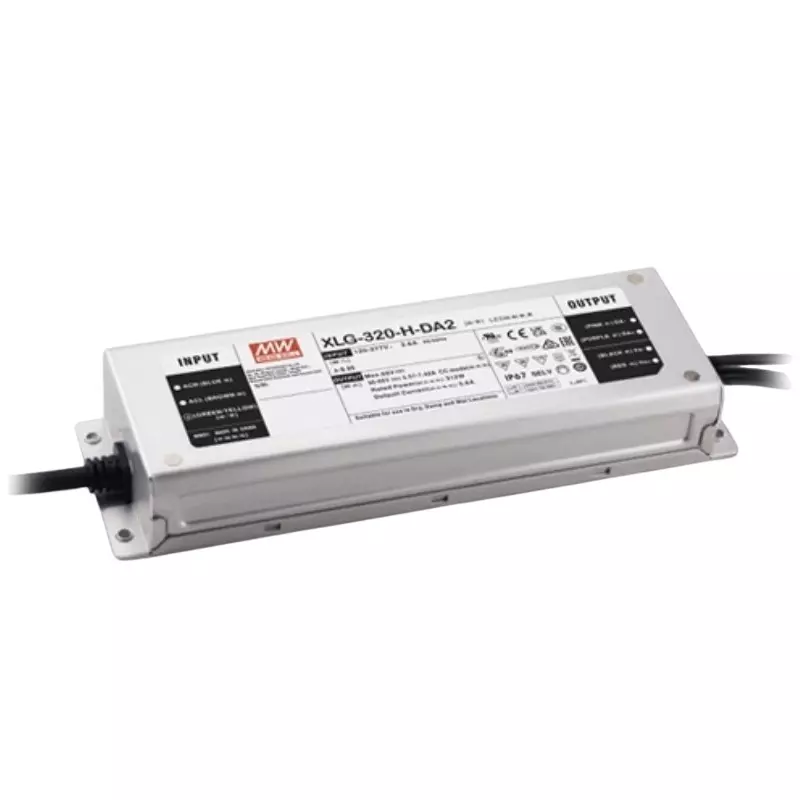

XLG-320I-H-DA2 |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
ITMS Powertech Private Limited |
Storage Humidity |
10 ~ 95% RH |
Protection |
Short Circuit, Input Over Voltage, Over Temperature |
Frequency Range |
47-63 Hz |
Current Adjust Range |
2800-7420 mA |
Rated Current |
5600 mA |
Working Humidity |
20 ~ 95% RH non-condensing |
Constant Current Region |
30-56 V |
Leakage Current |
<0.75 mA / 277 VAC |
Storage Temperature |
-40 to +80°C |
Open Circuit Voltage |
65 V |
Current Tolerated |
±5% |
Current Ripple |
5% (@Full Load) |
