Ships within 25 days
View
View
View
View

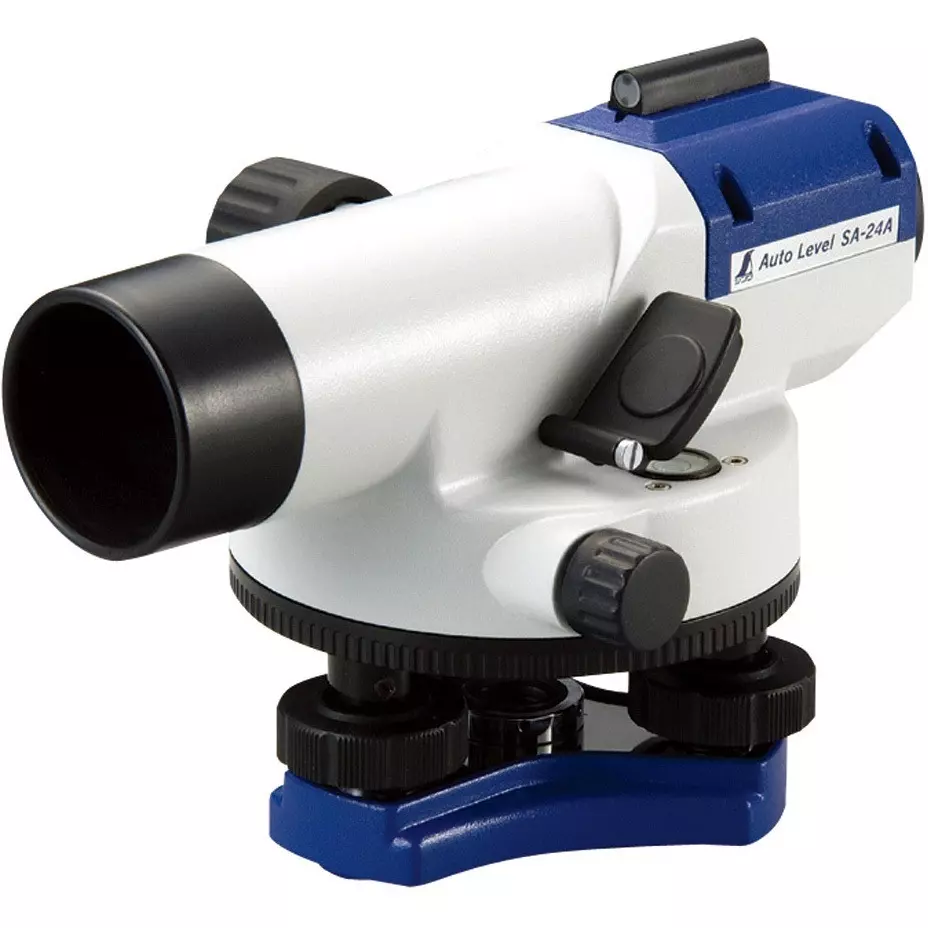

| Type of Product | Auto Level |
| Model No | 76653 |
| Repeatability | 0.5 Inch |
| Sensitivity | 8 minutes / 2 mm |
Type of Product |
Auto Level |
Model No |
76653 |
Repeatability |
0.5 Inch |
Sensitivity |
8 minutes / 2 mm |
Country of Origin |
Japan |
Monotaro ID |
20928278 |

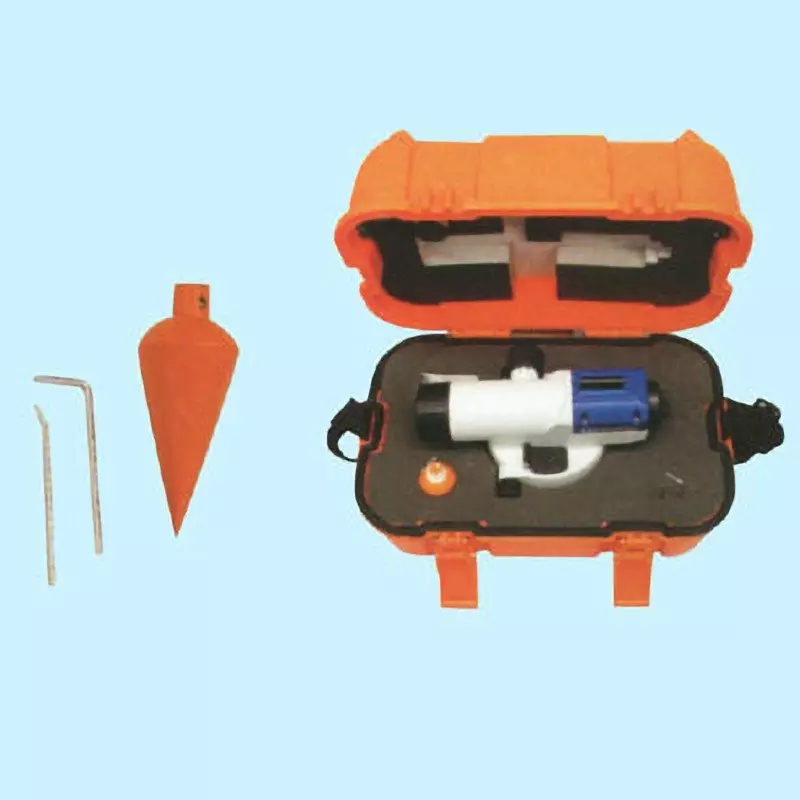

Included Components |
Spherical leg head tripod plastic case lowering swing x 1, hexagon wrench x 1, straightening needle x 1 |
Minimum Reading |
1 ° |
Mass (g) |
1308 |
Name of Manufacturer/Packer/Importer |
Shinwa Measurement Co., Ltd. |
Import Country |
Direct Import from Japan |
Main Unit Dimensions (mm) |
208x130x135 |
Stadia Multiplier |
100 |
Automatic Correction Mechanism |
Magnet damper |
Automatic Correction Range |
± 15 minutes |
Tripod Mounting Screw |
W5/8inch |
Visibility |
1 degree 20 minutes |
Minimum focus distance |
0.6 m |
Standard Deviation |
±2.0 mm |
Effective Diameter |
30 mm |
Magnification (times) |
24 |
Mass (Kg) |
Body: 1.241 Tripod: 3.815 |
Mass of Main Unit (kg) |
1.2410000000000001 |
Maximum Height (mm) |
Approx. 1560 (tripod) |
Bottom Shape |
Flat / spherical |
