Ships within 19 days
Model No
View
View
View
View

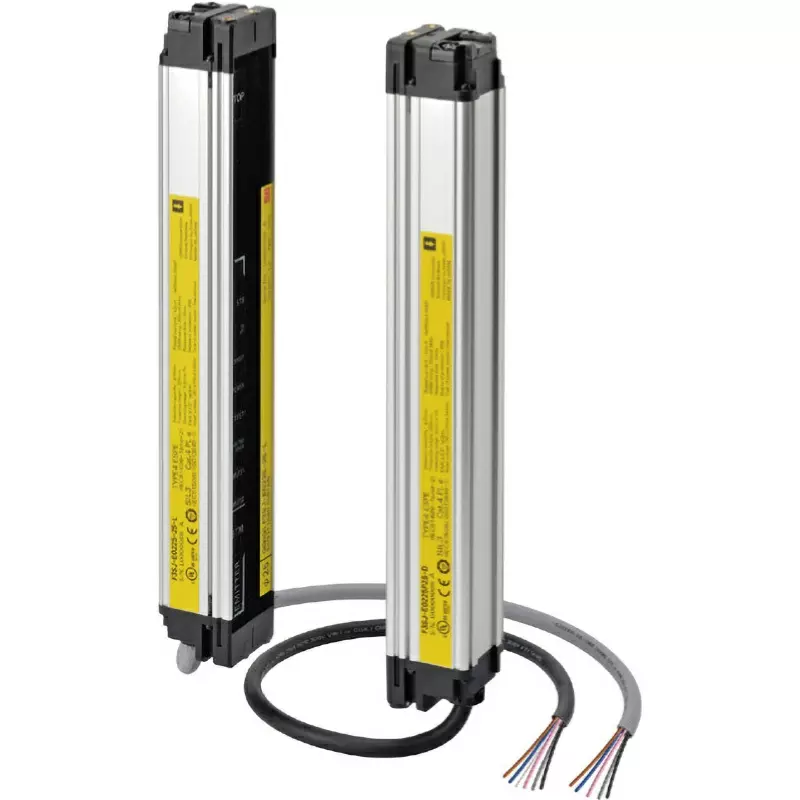

| Type of Product | Safety Light Curtain |
| Model No | F3SJ-E0945P25-S |
| Type | S-Mark Compatible Model |
| Protection Class | IP65(IEC60529) |
Type of Product |
Safety Light Curtain |
Model No |
F3SJ-E0945P25-S |
Type |
S-Mark Compatible Model |
Protection Class |
IP65(IEC60529) |
Output |
PNP Output |
Response Time |
(ON→OFF) 15ms or less (OFF→ON) 70ms or less (when receiving stable light) |
Light Source |
Infrared LED |
Case Material |
Aluminum |
Cell Spacing (mm) |
(Optical axis) 20 |
Control Output |
200 mA |
Monotaro ID |
46472456 |
Power Supply Voltage |
SELV/PELV DC24±20% (Ripple p-p ≤ 10%) |
Sensor Type |
Type4 Safety Light Curtain |
Import Country |
Direct Import from Japan |
Included Components |
Quick installation manual (QIM), instruction manual |
Cap Material |
ABS resin, PBT |
Applicable Standard |
IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE)<br>IEC61496-2, EN 61496-2, UL61496-2 (Type 4 AOPD)<br>IEC61508-1~-3, EN61508-1~-3(SIL3)<br>ISO13849-1:2015, EN ISO13849-1:2015(PLe/Safety Category 4)<br>UL508, UL1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8 |
Sensor |
Type4 safety light curtain |
Power Cable (m) |
3 m (Cord Drawer Type) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Current Consumption (mA) |
When no load is applied : Emitter: 63 or less, Receiver: 51 or less |
Mass (Kg) |
1832.55 (single), 3257 (packed) |
Detection Distance (m) |
0.2–7 |
Input Voltage (V) |
Test input: ON voltage: Vs-3 to Vs (short-circuit current approx. 3.0mA) OFF voltage: 0 to 1/2Vs or open (short-circuit current approx. 4.0mA) |
Lens Diameter (Φmm) |
5 |
