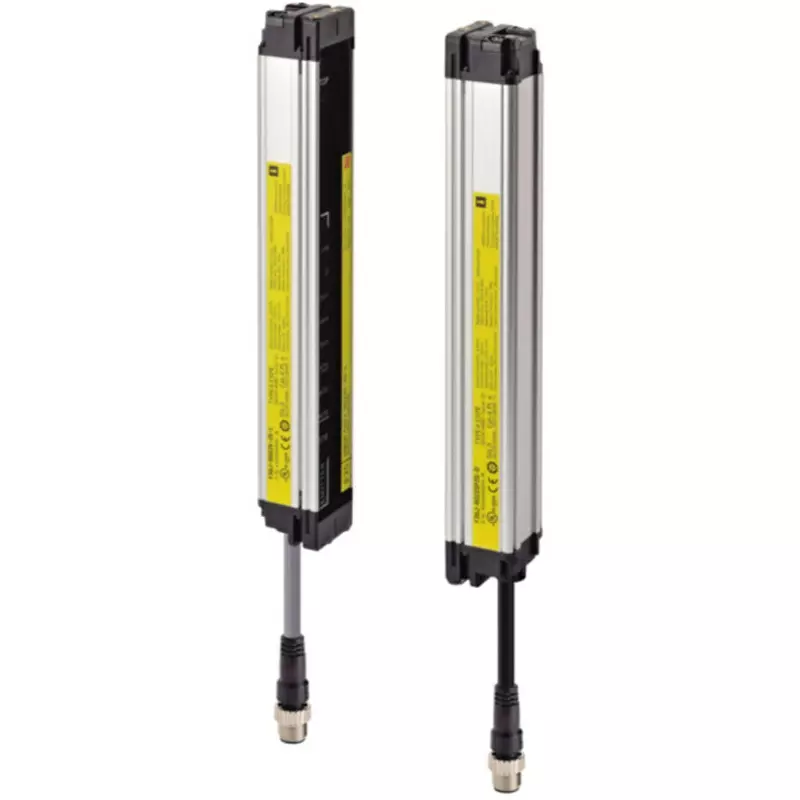

| Type of Product | Safety Light Curtain |
| Model No | F3SJ-B1665P25 |
| Protection Class | IP65(Iec60529) |
| Output | PNP Output |
Type of Product |
Safety Light Curtain |
Model No |
F3SJ-B1665P25 |
Protection Class |
IP65(Iec60529) |
Output |
PNP Output |
Connection Type |
Connector Type (M12, 8-Pin) |
Material |
Case: Aluminum Cap: Abs Resin, Pbt Optical Cover: Pmma Resin (Acrylic) Code: Oil-Resistant Pvc |
Case Material |
Aluminum |
Cell Spacing (mm) |
(Optical Axis) 20 |
Monotaro ID |
39063132 |
Power Supply Voltage |
SELV / PELV DC 24 V ± 20% (ripple p-p10% or less) |
Sensor Type |
Type4 Safety Light Curtain |
Series |
F3SJ-B Series |
Import Country |
Direct Import from Japan |
Included Components |
Test rod, instruction manual, user's manual (CD-ROM) |
Applicable Standard |
IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE) IEC61496-2, EN 61496-2, UL61496-2 (Type 4 AOPD) IEC61508-1 to -3, EN61508-1 to -3 (SIL3) ISO13849-1: 2015, EN ISO13849-1: 2015 (PLe/Safety Category 4) UL508, UL1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand Voltage |
AC 1000 (50/60 Hz) |
Detection Distance (m) |
0.2–7 |
Mass (g) |
2807.3 (Single), 4995.5 (Packed) |
Input Voltage (V) |
Test Input, Interlock Selection Input, Reset Input, Muting Input: On Voltage: Vs-3 To Vs (Short Circuit Current Approx. 3.0 mA) Off Voltage: 0 To 1/2Vs Or Open (Short Circuit Current Approx. 4.0 mA) External Relay Monitor Input: On Voltage: Vs-3 To Vs (Short Circuit Current Approx. 6.0 mA) Off Voltage: Open |
Lens Diameter (Φmm) |
5 |
Cord Length |
0.3 (Cord with connector and outlet type) |
