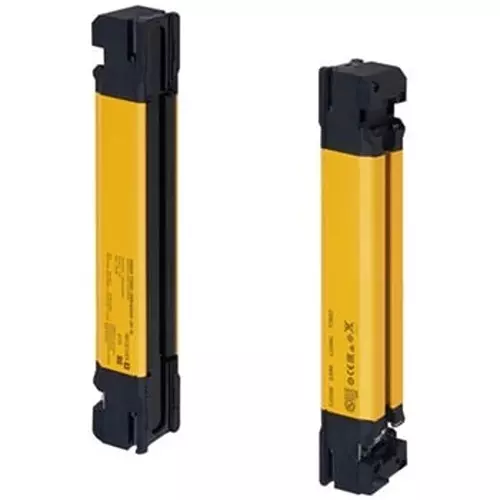

| Type of Product | Safety Light Curtain |
| Application | For hand detection |
| Model No | F3SG-4SRA0480-25 |
| Protection Class | IP65 and IP67 (IEC60529), IP67G (JIS C0920) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Safety Light Curtain |
Application |
For hand detection |
Model No |
F3SG-4SRA0480-25 |
Protection Class |
IP65 and IP67 (IEC60529), IP67G (JIS C0920) |
Output |
(Auxiliary) PNP or NPN transistor 1 output (PNP or NPN is set according to the power line connection destination) Load current 100mA or less, residual voltage 2V or less*5<br> *5. Residual voltage is 3V or less when an intelligent tap is connected. |
Function |
Advanced type |
Operation Mode |
Control output: ON when light is received (control output turns ON when the receiver receives a light emission signal), Auxiliary output: Control output information (output inversion function: enabled) (factory setting) (selectable with SD Manager 3) |
Cell Spacing (mm) |
(Optical axis) 20 |
Protection Circuit |
Output load short circuit protection |
Control Output |
PNP or NPN transistor 2 output (PNP or NPN can be set depending on the power supply line connection destination)<br> Load current 300mA or less, residual voltage 2V or less (excluding voltage drop due to cable extension), capacitive load 1μF or less, inductive load 2.2H or less *1*2*3<br> Leakage current: 1mA or less (PNP), 2mA or less (NPN) *4<br> *1. For the F3SG-4SRA, when 2 units are connected, the load current is 150 mA or less. When 3 units are connected, the load current is 80 mA or less.<br> *2. Residual voltage 3V or less when intelligent tap is connected<br> *3. The inductive load value is determined based on the frequency of the control output. |
Monotaro ID |
58246589 |
Power Supply Voltage |
SELV/PELV24 DC±20% (ripple p-p10% or less) |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Shock Resistance |
Class3M4 (IEC TR60721-4-3)/Malfunction: Acceleration 15G, pulse time 6ms, 100 times each in X, Y, Z directions (600 times in total) [IEC61496-1] |
Current Consumption (mA) |
84 (emitter)/124 (receiver) |
Mass (Kg) |
1.2 (single unit)/1.7 (packaged state) |
Lens Size |
6.7x4.5 mm |
Detection Distance (m) |
0.3 to 20 (long mode)/0.3 to 7 (short mode) |
Insulation Resistance (MOhm) |
20 or more (at 500 VDC) |
Specifications |
ESPE: Type 4 |
Other functions |
Serial connection function Number of connections: up to 3 Total number of optical axes: up to 255 Safety related functions Interlock External relay monitor (EDM)<br> Pre-Reset<br> PSDI<br> Fixed blanking/Floating blanking Reduced resolution Muting/Override Mutual interference prevention<br> PNP/NPN selection response time change |
Shock Resistance (Malfunction) |
Acceleration 15G, pulse time 6ms, 100 times in each of X, Y, and Z directions (total 600 times) [IEC61496-1] |
